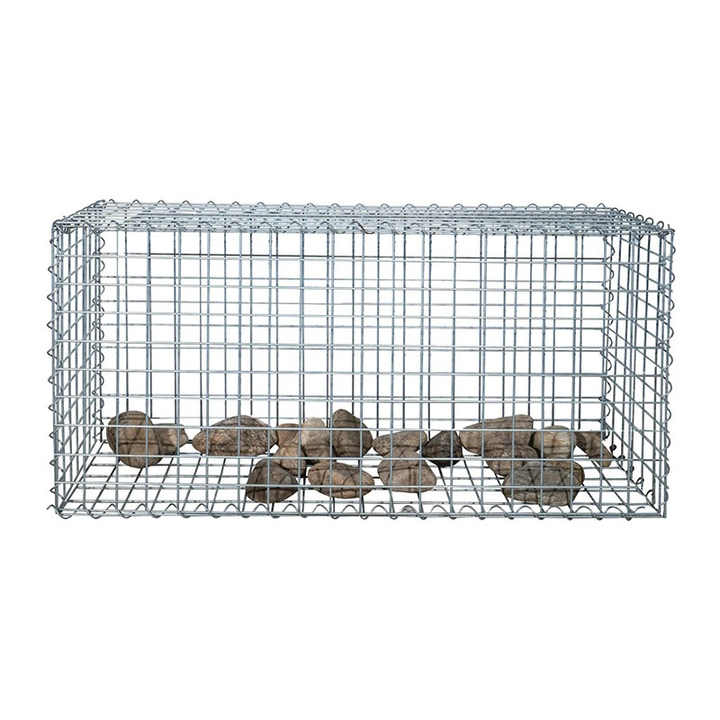

Welded Gabion

Welded Gabion

Welded gabions are rigid steel wire mesh structures manufactured through precision welding technology. Compared with traditional woven gabions, they provide higher structural integrity, cleaner appearance, and faster installation. Widely used in retaining walls, slope stabilization, riverbank protection, and infrastructure engineering, welded gabions deliver long-term performance in demanding outdoor environments.
  • Welded Gabion
  • Welded Gabion
  • Welded Gabion
  • Welded Gabion
Share:
Welded Gabion

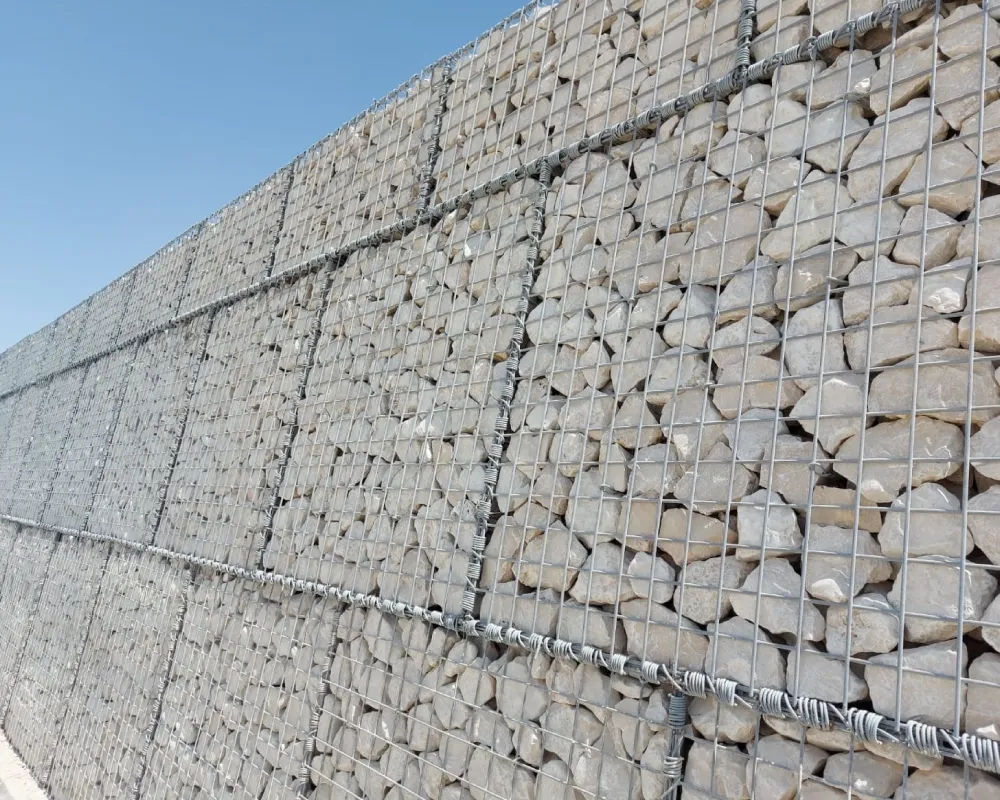

Welded gabion basket made of galvanized steel wire mesh

NATURE-ALIGNED STRENGTH FOR MODERN INFRASTRUCTURE

If structural stability, erosion control, and long-term performance are your top priorities, Hebei Jinbiao’s Welded Gabion Systems provide a dependable solution for civil engineering, infrastructure, and environmental protection applications.

Constructed from precision-welded steel wire mesh panels, welded gabions offer superior rigidity, load-bearing capacity, and dimensional accuracy compared to traditional woven gabions. The rigid panel structure ensures excellent resistance to deformation while allowing natural drainage and integration with surrounding landscapes.

Engineered for versatile deployment, our welded gabion systems are widely used in retaining walls, slope stabilization, riverbank protection, bridge abutments, highway projects, and landscape engineering, backed by decades of manufacturing expertise in engineered steel mesh solutions.

DISCLAIMER: Gabion performance may vary depending on wire diameter, mesh size, coating type, stone infill, installation method, foundation conditions, and site-specific environmental factors.

BENEFITS OF Hebei Jinbiao Welded gabion

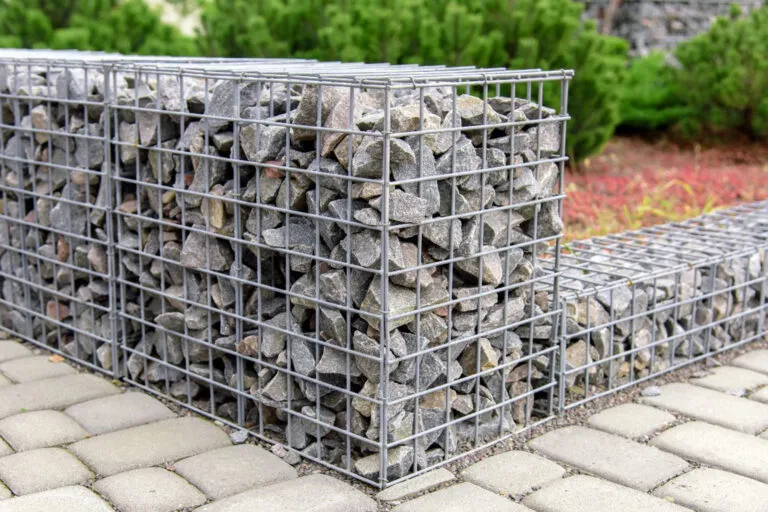

High-strength welded gabion box with rigid square mesh structure

High-strength welded steel wire mesh construction delivers superior rigidity, load-bearing capacity, and structural integrity


Hot-dip galvanized, Galfan, or PVC-coated steel options ensure long-term durability and resistance to harsh outdoor environments


Excellent corrosion and weather resistance supports reliable performance in diverse climates and demanding site conditions


Rigid welded mesh structure maintains precise geometry and minimizes deformation during filling and service life


Open structure allows natural drainage and soil interaction, reducing hydrostatic pressure and enhancing slope stability


Customizable mesh sizes, wire diameters, panel dimensions, and surface treatments to meet specific engineering and project requirements


Modular gabion system enables fast installation, flexible configuration, and efficient on-site assembly


Low maintenance design reduces long-term operational costs and lifecycle expenses


Backed by Hebei Jinbiao’s 30 years of expertise in welded wire mesh and engineered gabion manufacturing for global infrastructure projects


DISCLAIMER: Gabion performance may vary depending on wire diameter, mesh size, coating type, stone infill, installation method, foundation conditions, and site-specific environmental factors.

Welded Versus Woven Gabion

A woven gabion is made from twisted hexagonal mesh, which moves with settlement. A welded gabion is a rigid grid of straight wires welded at every crossing, so the box keeps its shape and its faces stay flat.

Rigid faces give a cleaner finished wall and a predictable void ratio; woven boxes tolerate more ground movement. The choice follows the structure, not the price.

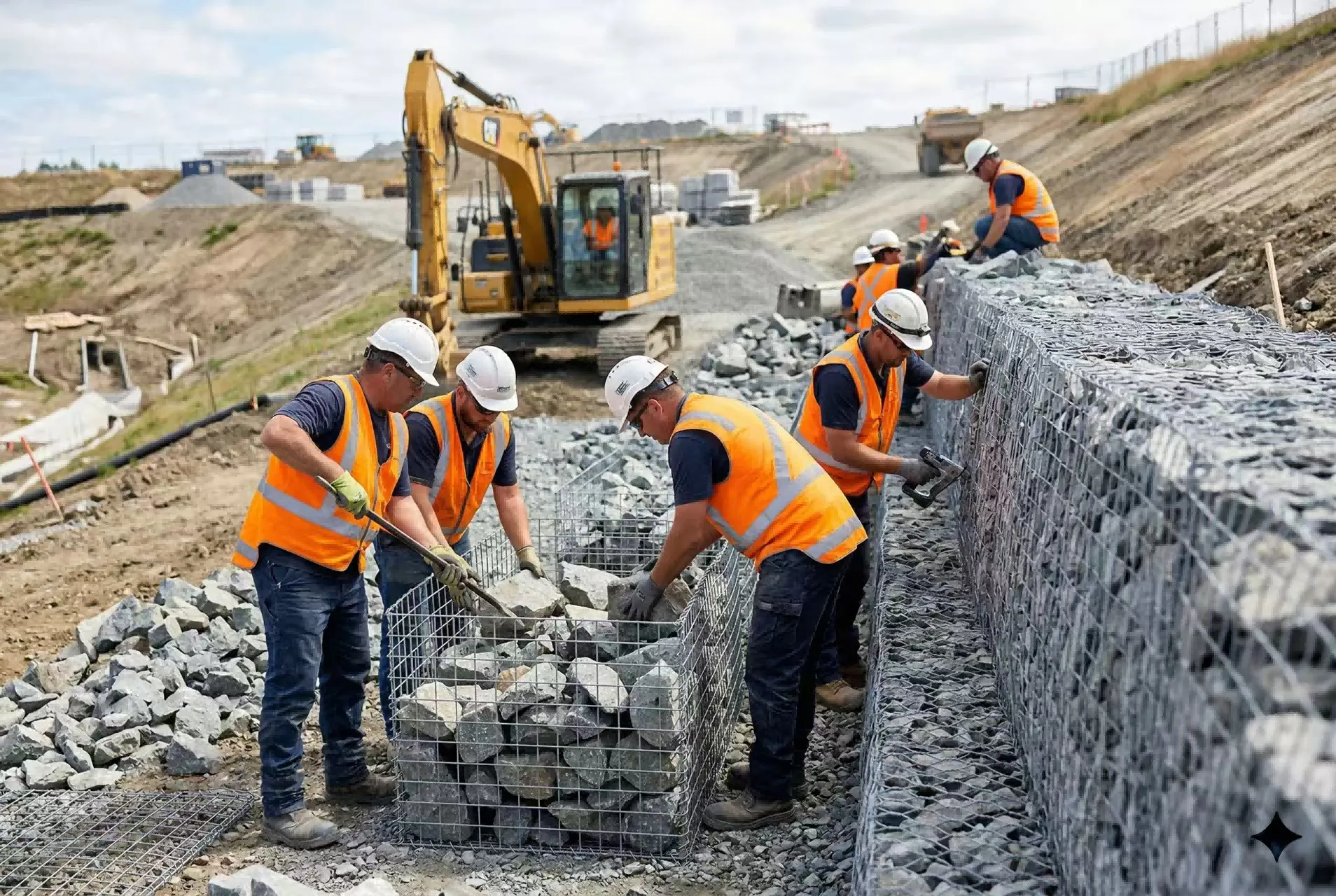

Heavy-duty welded gabion cage for retaining wall construction

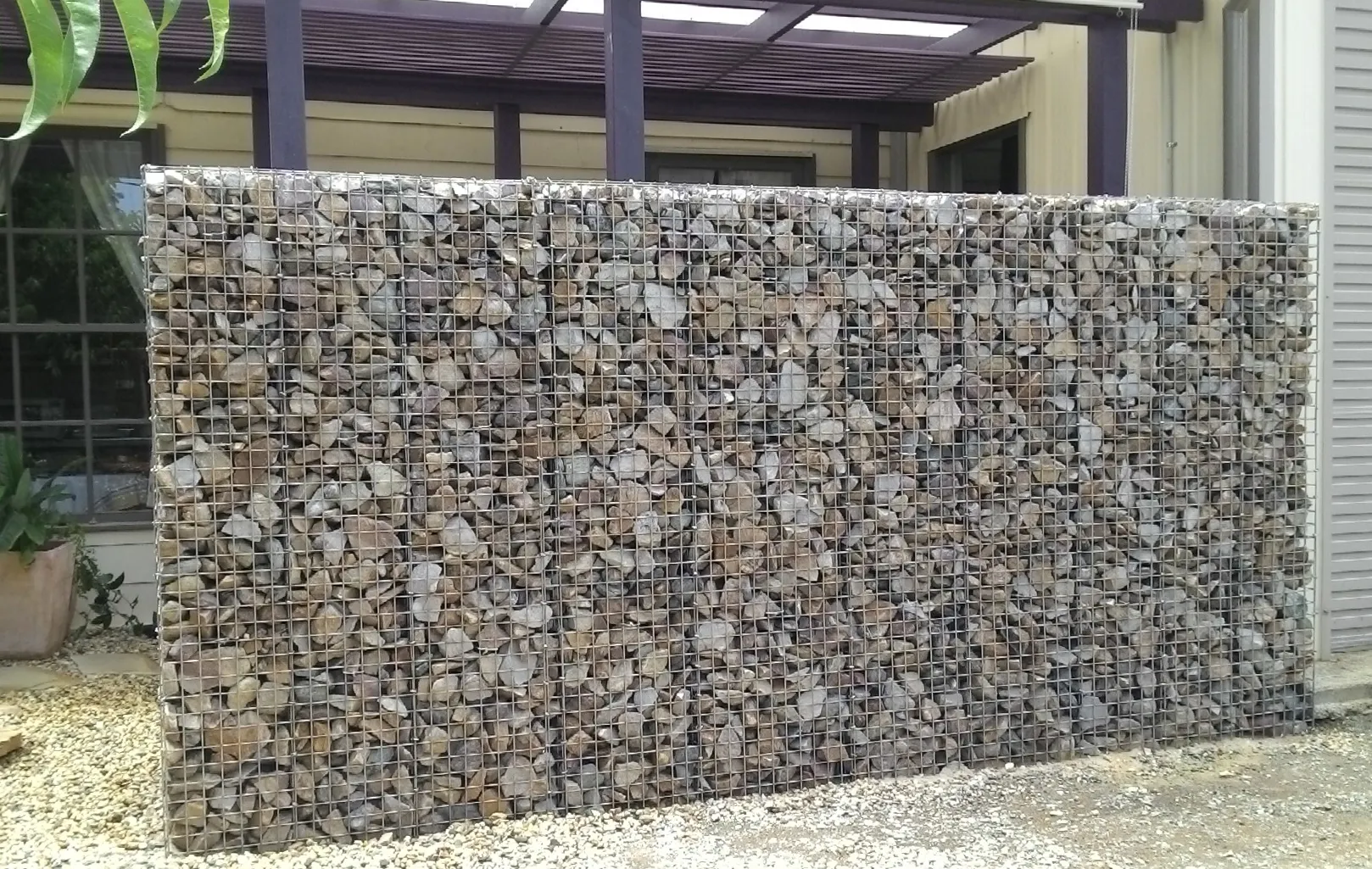

Welded gabion retaining wall for slope stabilization project

Filling, Lacing and Alignment

Boxes are supplied flat, laced together on site and filled in layers, with the stone graded so the face stays tight. Internal diaphragms keep the box from bulging as it fills.

On a retaining wall the base course is set first and each course stepped back, which is what produces the batter the design assumes.

Welded Gabion Specification Summary

Send box dimensions, wire diameter, mesh size, coating, diaphragm spacing, stone grading and the total volume. We return a box count and a lacing schedule with the quotation.
