CIVIL NOISE BARRIER FOR MUNICIPAL AND DEVELOPMENT PROJECTS

A civil noise barrier is the barrier that has to satisfy a planning authority as well as an acoustic model. It stands at the edge of a housing scheme, a school, a hospital or a municipal road, and the people who will live with it are the ones commenting on the application.

That makes the brief wider than a highway barrier's. Height, colour, transparency, maintenance and the way the barrier meets the ground all become part of the approval, not just the insertion loss.

Consent before acoustics

On a civil project the barrier is often the visible element that gets objected to. A scheme that meets the noise limit but is refused at planning has not solved the problem.

WHAT CIVIL PROJECTS NEED THAT ROADS DO NOT

Highway barriers are specified by an authority with a standard detail. Civil barriers are specified by a developer, a municipality or a consultant, usually with a site-specific design and a public consultation attached to it.

The result is more variation: shorter runs, more changes of height, gates and access points, and a finish chosen to sit with the buildings rather than to match a road standard.

It also means the barrier frequently has to work with civil works that already exist — a retaining wall, a kerb line, a drainage channel or a boundary fence — rather than starting from a clear verge.

Noise reduction performance chart showing effectiveness of highway sound barrier

WHERE CIVIL BARRIERS GO WRONG

The height steps and nobody details the step

A barrier that drops from 3 m to 2 m along a boundary creates a vertical edge where sound passes. The step has to be detailed with a return panel, not left as an open end.

The base meets a wall, not the ground

Where a barrier sits on top of a retaining wall or a fence line, the base detail changes completely and the acoustic line depends on it.

The finish is chosen before the exposure is known

A colour selected from a swatch on a coastal site will fade differently from the sample. Exposure decides the coating system, and the colour is chosen within it.

Maintenance is nobody's budget

A civil barrier is often maintained by a party that did not buy it. Cleaning and touch-up are cheaper to design in than to retrofit.

Before and after comparison showing highway noise barrier reducing sound levels in residential area

WHAT A CIVIL BARRIER HAS TO GET RIGHT ON SITE

Civil noise barrier system protecting residential areas from traffic noise

It has to meet the ground that is there

A civil boundary is rarely a clean verge. The barrier meets kerbs, gullies, retaining walls, service covers and planting strips, and each of those changes the base detail. Designing the panel first and discovering the base later is how barriers end up with gaps at the bottom.

It has to be maintainable by someone else

The party that maintains a civil barrier is often not the party that bought it — a management company, a local authority or a facilities team. A finish and a fixing that require specialist knowledge will not be maintained.

The test is simple: could a competent grounds contractor replace one damaged panel with hand tools and a method statement? If not, the barrier will be patched with whatever is available, and the acoustic line will degrade where nobody is measuring it.

WHY HEBEI JINBIAO FOR CIVIL BARRIERS

A manufacturer, not an assembler

Hebei Jinbiao has been producing fencing and noise control systems for 30 years. Panels, columns and fixings are fabricated in our own plant, so a non-standard panel or a specific connection can be quoted without a subcontractor in the middle.

Management systems

The company operates to ISO 9001 for quality, ISO 14001 for environmental management and ISO 45001 for occupational health and safety, and holds CE marking together with a factory inspection certificate and a traffic safety product certification.

Barriers already in service

Our noise control work includes a fully enclosed barrier at a subway station in Chile, metal barriers at a power station in Japan and on a road project in Indonesia, a metal barrier at a substation in Phuket and a soundproof blanket on a Philippine railway section.

Supply, not installation

Outside China we manufacture and supply. Erection is carried out by the project contractor, and we provide the drawings, the panel schedule and the fixing details the contractor works from.

Transplex louvered civil noise barrier with high sound insulation
Highway noise barrier installed along a busy motorway

WHERE CIVIL BARRIERS ARE SPECIFIED

Civil barriers are specified wherever a development or a municipality has to reduce noise at a boundary people can see.

  • Residential schemes beside roads or rail — the most common case, driven by a planning condition.

  • Schools, hospitals and care homes — where outdoor space has to stay usable.

  • Municipal road improvements — short runs at junctions and widened sections.

  • Mixed-use and commercial frontages — plant noise at a boundary shared with housing.

  • Public realm and parks — a barrier that also has to look like part of the landscape.

Where the client wants a barrier that disappears, a transparent or planted solution is quoted; where the priority is cost per decibel, an absorptive metal panel is quoted.

PANEL AND BASE

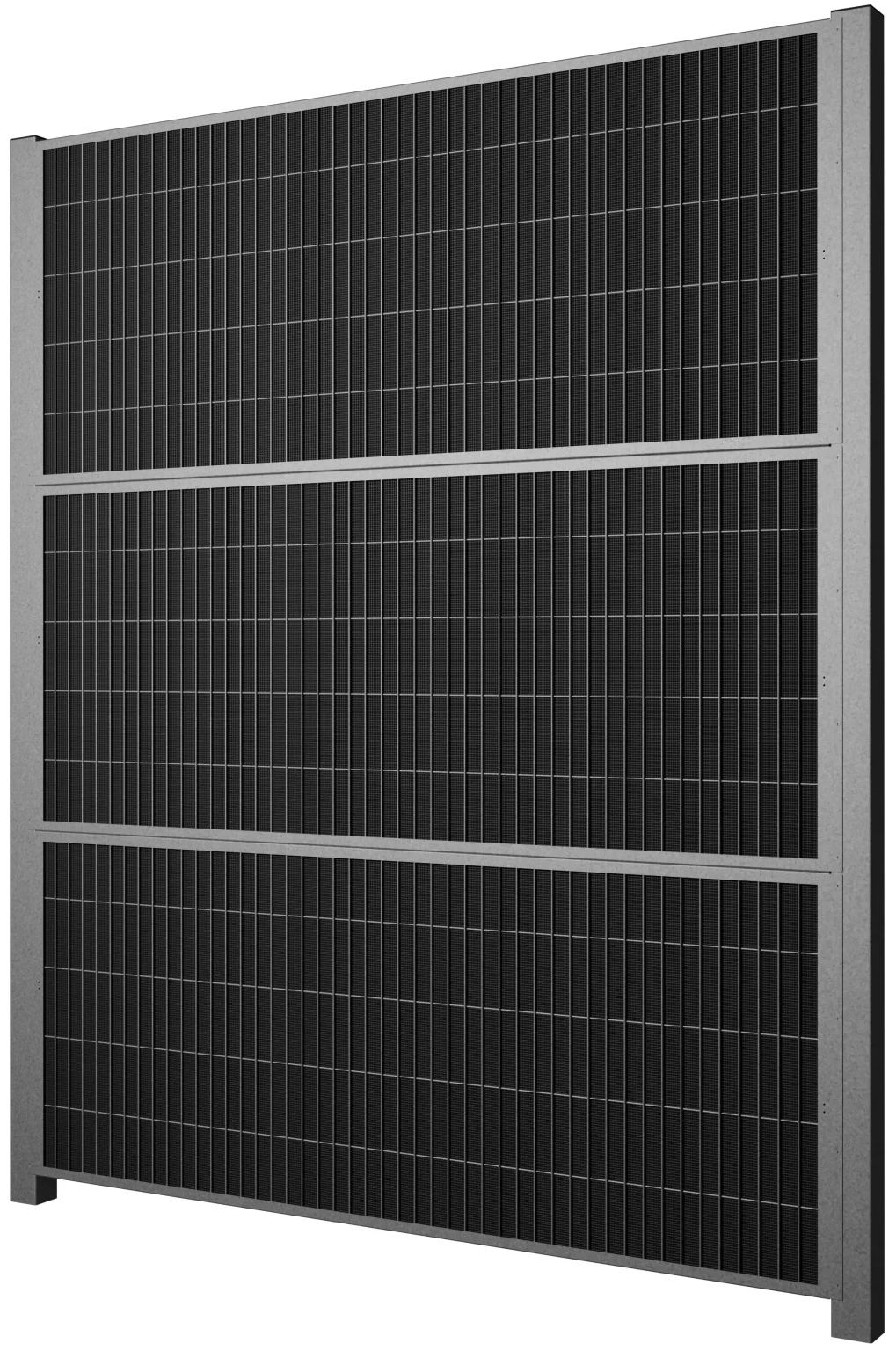

Panels are absorptive metal or composite, made to the bay width of the boundary, on galvanised H-section posts with a base designed to whatever the barrier stands on — ground, kerb, retaining wall or existing fence line.

Where the barrier follows a stepped boundary, each change of height is closed with a return panel so that the acoustic line stays continuous.

FINISH, GATES AND ACCESS

Section drawing of the steel H-post used in civil noise barrier panels

Finish is specified with the exposure: a stated colour reference and gloss level, applied over galvanised steel, with a cleaning and touch-up method that the maintaining party can actually follow.

Gates and access points are detailed as part of the system rather than bought separately, because an undetailed opening is the largest acoustic defect on a short run.

Featured Project Case Studies

Explore real-world examples of how our comprehensive services and solutions have delivered exceptional results in isolation and acoustic applications.

Philippines Railway – Soundproof Blanket

  • For a Philippine railway project Hebei Jinbiao supplied soundproof blankets: green coated fabric panels laced to a steel frame in bays, used where a rigid barrier cannot be built. Light enough to be carried and hung by hand, they suit a live railway where the work has to happen in short possession windows.

Learn More

Philippine AC Unit – Acoustics Louver

  • For air conditioning units in the Philippines Hebei Jinbiao supplied acoustic louver banks assembled over rooftop condensers. The louver has to reduce the plant noise without starving the condenser of air, so free area and face velocity are set against the unit's own airflow rather than chosen from a catalogue.

Learn More

Japanese Power Station – Metal Louver Noise Barrier

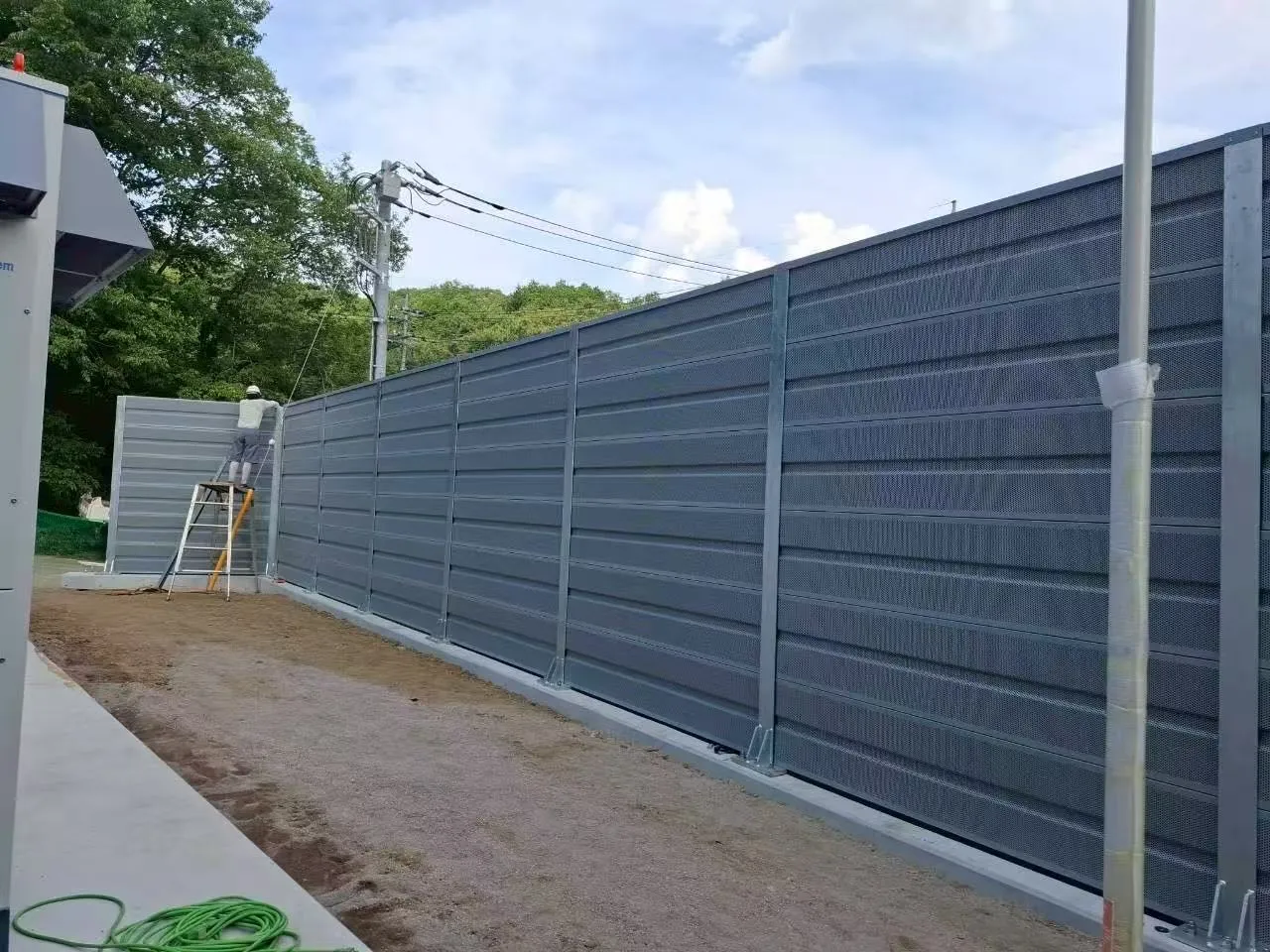

  • For a Japanese power station Hebei Jinbiao supplied a dark metal louver noise barrier carried on galvanised posts and set on individual concrete pad footings, returning around two sides of the equipment compound. The louvered face controls noise without closing off the airflow the plant needs.

Learn More

Chilean Subway Station – Fully Enclosed Noise Barrier

  • For a Chilean subway station Hebei Jinbiao supplied a fully enclosed arched noise barrier over the works area: green coated steel arches with solid side panels and translucent roof panels. Closing the top removes the diffraction path a free-standing barrier leaves open, at the cost of raising the level inside the enclosure.

Learn More

Sub Station Phuket 3 – Metal Noise Barrier

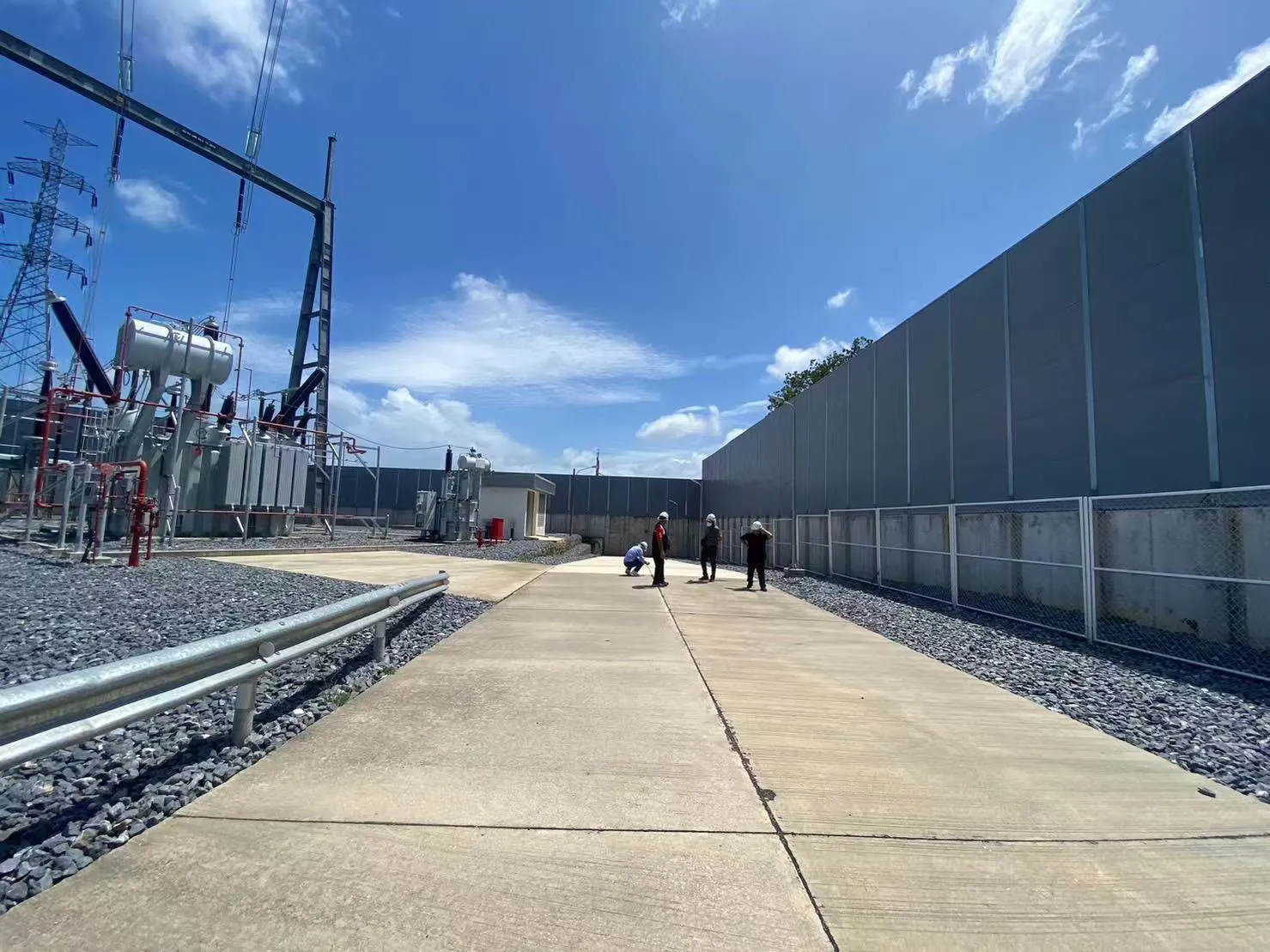

  • For Sub Station Phuket 3 in Thailand Hebei Jinbiao supplied a metal noise barrier with rock wool infill around the transformer yard. Substation noise is tonal and low-frequency, so the barrier is specified for mass and height rather than for a perforated absorptive face.

Learn More

Indonesia Road Project – Metal Louver Noise Barrier

  • For an Indonesian road project Hebei Jinbiao supplied galvanised metal louver noise barriers with rock wool infill. The louvered face sheds monsoon rain instead of trapping it, and the galvanised finish suits a hot, humid site where a painted face would need recoating sooner than the structure needs replacing.
