Louvered Metal Noise Barrier Panels for Highway Sound Absorption
Angled Slats That Absorb Rather Than Reflect
A louvered metal noise barrier is a panel of angled slats set over a sound-absorbing core. The angle is the whole point. Instead of bouncing traffic noise back across the carriageway, the slats lead the sound into the mineral wool behind them, where the acoustic energy is dissipated as heat. That is what separates a louvered panel from a plain metal sheet of the same size, and it is why this panel is chosen where a reflective barrier would simply push the noise towards the opposite side of the road. We build the panels to the module width and height your post spacing allows, in galvanized steel or aluminium with a coated finish, and supply them with the posts, frames and fixings that hold the run together.
Why the Slats Are Angled
A flat metal panel reflects almost everything that hits it. A louvered panel is designed so that most of the sound that reaches the face is turned inward through the gaps between the slats and absorbed before it can come back out. The slat angle, the gap between slats and the depth of the cavity behind them together decide how much is absorbed and at which frequencies. Shallow cavities work on the higher frequencies that dominate tyre noise; the low-frequency content of heavy vehicles and engines needs a deeper cavity and a denser core to be dealt with at all.

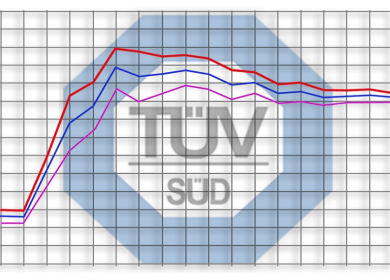

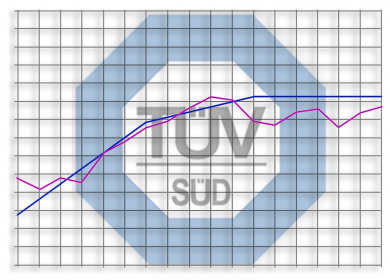

This is why two panels that look identical from the roadside can perform very differently. A slat set at a shallow angle with a thin wool blanket behind it will look correct and behave like a partly reflective screen. A deeper cavity packed with denser mineral wool, held behind a facing that stops the fibres migrating, absorbs far more across the band that matters. Ask for the measured absorption data for the exact build being offered, not a figure quoted for a different panel thickness.
The louvered face is also frequently combined with other panel types in the same run: a perforated absorptive section at the bottom where the tyre noise is generated, a louvered band above it, and a transparent section on top to keep daylight and sightlines for the properties behind. We supply all three as modules that fit the same post.
Panel Build: Slats, Core and Frame

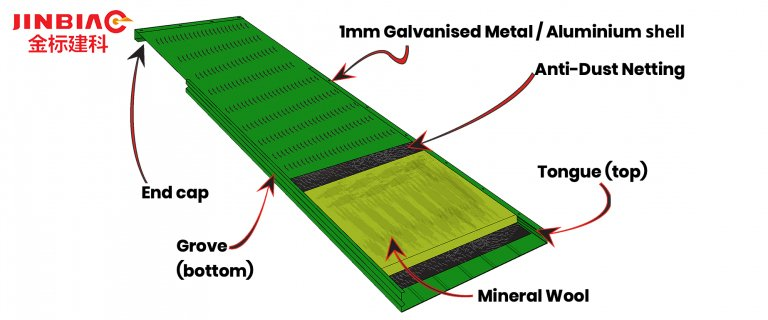

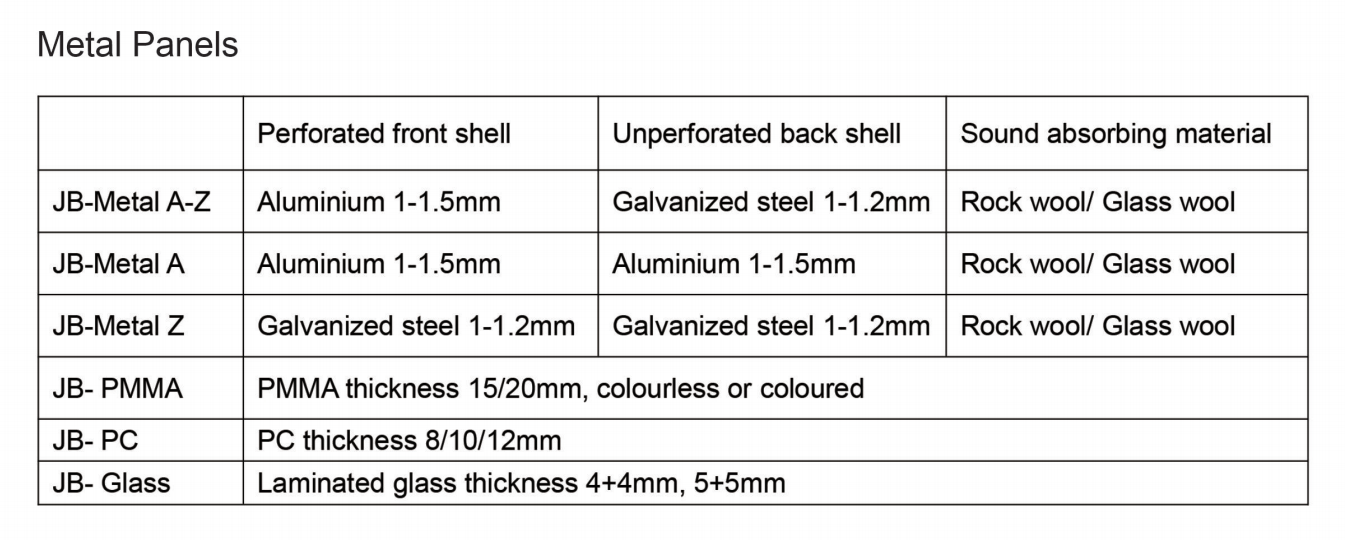

The slats are formed from aluminium or galvanized steel sheet, most commonly in the 1.0 mm to 1.5 mm range, set into a frame that carries the panel between posts. The core behind them is mineral wool, typically between 32 kg/m3 and 48 kg/m3 depending on the absorption target, wrapped in a black fleece so that fibres do not migrate out through the slat gaps over years of vibration. The whole assembly is held in a perimeter frame with the panel thickness usually between 80 mm and 100 mm for a highway application.
Module size is set by what the structure can carry and by what can be handled on site. Common widths are 500 mm and 1000 mm, with heights stepped in 500 mm increments up to about 1000 mm per module. Narrower modules are easier to lift and follow a curve or a vertical step in the parapet; wider modules mean fewer posts and faster installation on a long straight run. Tell us the post centres you are working to and we will set the module width to close on them without a cut panel at every bay.

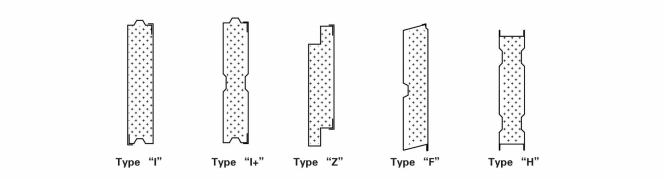

The joints matter as much as the panel. A gasket or a labyrinth joint between adjacent modules stops sound leaking through the vertical gap, which is otherwise the weakest line in an absorptive barrier. We supply the joint detail with the panel so the installer is not improvising a seal on site.
Mounting on Highway, Bridge and Rail Structures

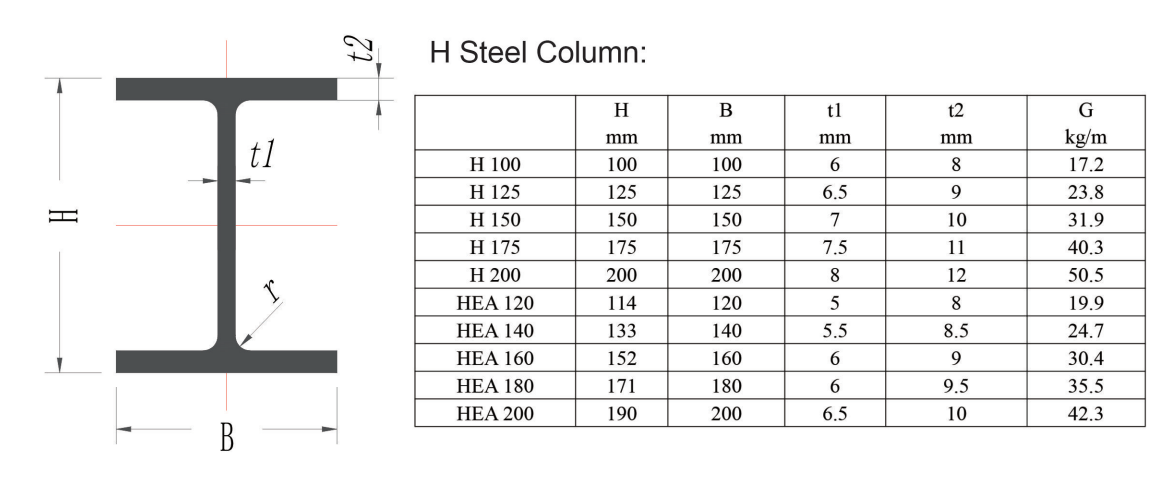

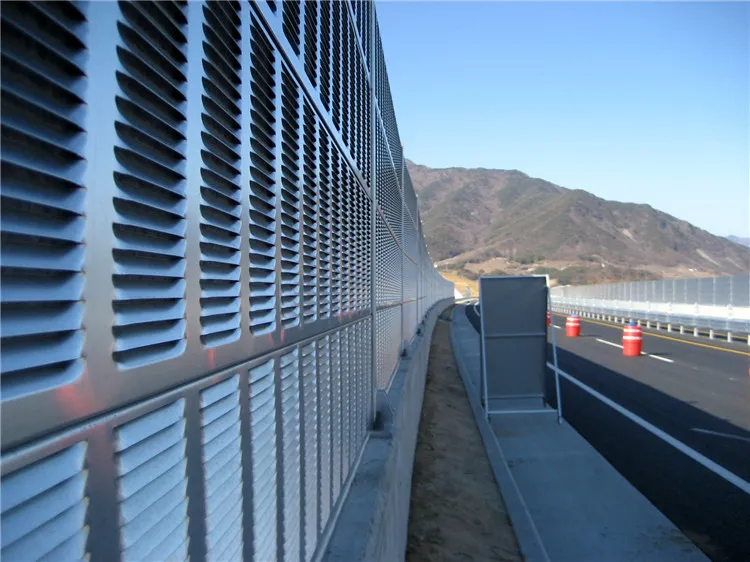

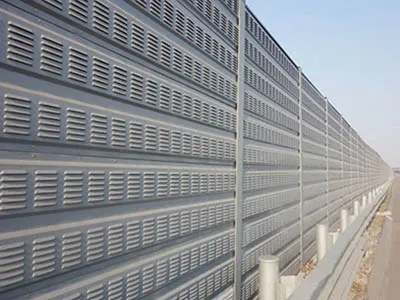

On a highway verge the panels sit between H-section steel posts, typically 100 x 100 mm to 125 x 125 mm, base-plated and anchored into a concrete curb or a cast-in plinth. Post centres of 2 m to 4 m are normal, and barrier heights of 3 m to 5 m above the carriageway are used where the receptors sit above the road or close to it. The posts carry the wind load, so the anchor design follows the local wind pressure rather than a standard detail.
A bridge is a different problem. The barrier is anchored to the deck edge or to the parapet rather than to a free-standing foundation, the deck moves with temperature and traffic, and the wind loading on an exposed span is higher than on an embankment. On a bridge the panels are usually lighter, the posts shorter in span, and the fixing detail allows for movement without cracking the anchor. Where the deck cannot take a bolted post, the barrier is mounted on a continuous base rail fixed to the parapet.
Rail applications run taller and closer to the track, and the panels are set on a retaining wall or a dedicated foundation beside the ballast. In every case we need the structure drawing before the post and anchor detail is fixed, because the same panel module is used across all three and only the support changes.
Finishes, Colour and Corrosion
Steel panels are hot dip galvanized before coating, and the coating is what carries the colour. A polyester powder coat gives a durable, uniform finish in the greys, greens and blues that most highway authorities use to settle a barrier into the landscape. Where the barrier runs near the coast or against an industrial backdrop, a PVDF coating holds its colour and gloss considerably longer than a standard polyester, and the galvanized layer underneath should be specified heavier rather than assumed.
Aluminium slats are chosen where weight matters, on a bridge deck or a long cantilever, and they carry a coating in the same way. The two finishes read the same from the road; the difference shows up in the load on the structure and in the maintenance interval.
Colour is a design decision, not a technical one, but it has a practical edge. A mid-grey panel disappears against a concrete corridor and keeps attention on the road, a green panel ties the barrier to the planting behind it, and a blue-green section is often used on the upper transparent band to cut glare without blocking daylight. Send us the colour reference from the project specification and we will match it to the nearest standard coating rather than guessing from a photograph.
