Acrylic Transparent Noise Barrier Panels
Acrylic panels in a barrier frame

Why Acrylic

Acrylic is the lightest of the transparent barrier materials and the clearest. It is chosen where weight matters - bridge decks, rooftop barriers, retrofits onto an existing structure - and where the view has to stay open.

It is roughly half the weight of glass at the same thickness, which changes the frame, the fixings and sometimes the structure behind them.

Acrylic Against Glass and Polycarbonate

Three clear materials, three behaviours

Acrylic is clearer and lighter than polycarbonate, but more brittle under impact. Polycarbonate takes a hit without shattering, and scratches more easily in service. Glass is the hardest and the heaviest, and fails into fragments unless laminated.

The choice usually follows the site: weight limit and view favour acrylic, impact risk favours polycarbonate, and a long service life with easy cleaning favours glass.

Aerial view of a transparent barrier along a motorway

Panel Build and Framing

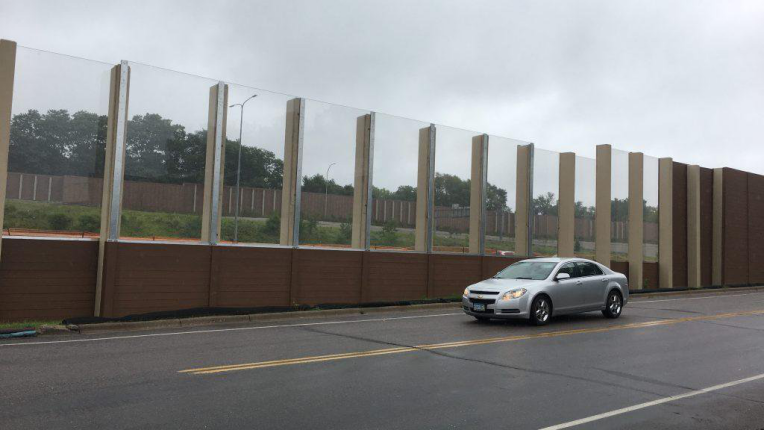

Clear acrylic noise barrier panels at ground level

Acrylic expands more than glass with temperature, so the pane needs clearance in the frame and slotted fixings rather than a rigid clamp. Panels are usually 6 mm to 15 mm thick, set in an aluminium frame with an EPDM gasket.

Over-tightening a fixing is the common installation fault: it leaves no room for movement and the pane crazes at the hole.

Scratch and UV

Acrylic scratches. On a highway barrier the damage is usually from cleaning rather than from traffic, so the cleaning method matters: no dry wiping, no abrasive pad.

UV stabilised grades resist yellowing for years; an unstabilised sheet goes cloudy within a season on a south-facing run. Ask for the grade, not just the material.

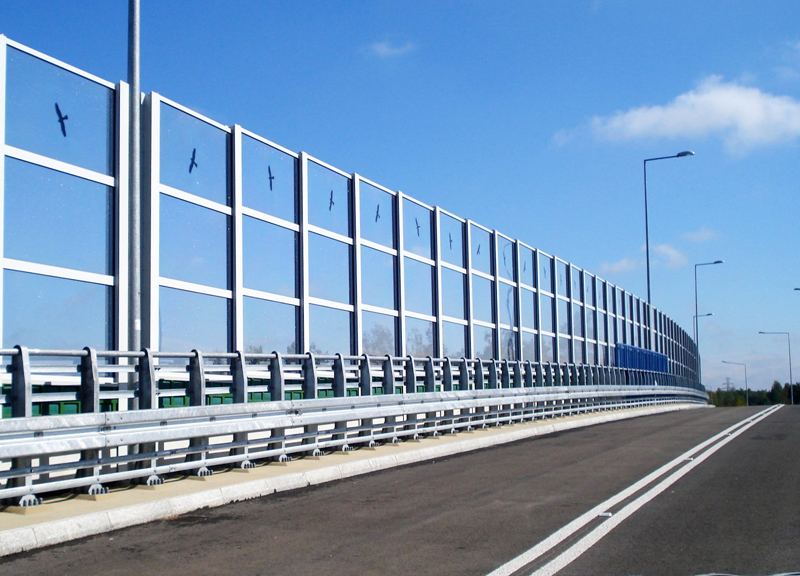

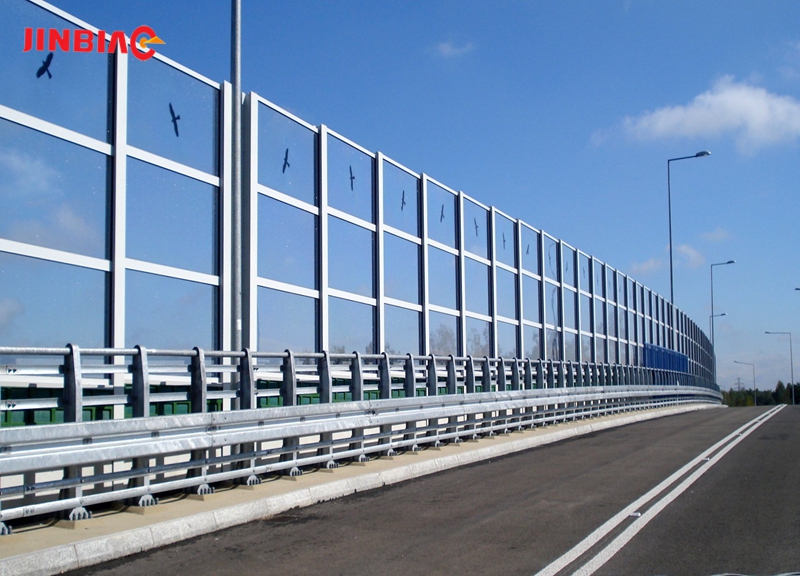

Transparent barrier run beside a highway

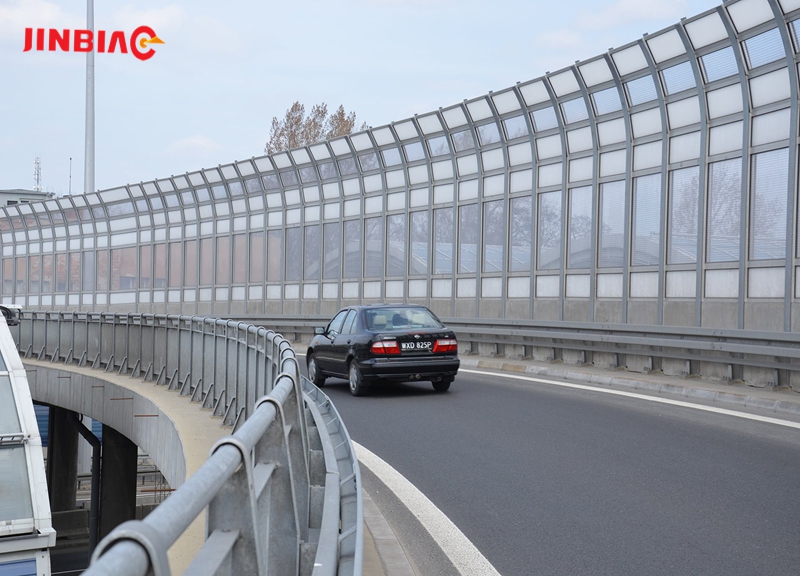

Acrylic panels on an urban expressway barrier

Where It Suits

Acrylic suits bridge parapets, elevated road barriers, station and walkway screens, and any retrofit where the existing structure cannot take glass.

It is less suitable at ground level next to a carriageway where debris may strike the panel, and where the run will be cleaned with machinery.

What to Send

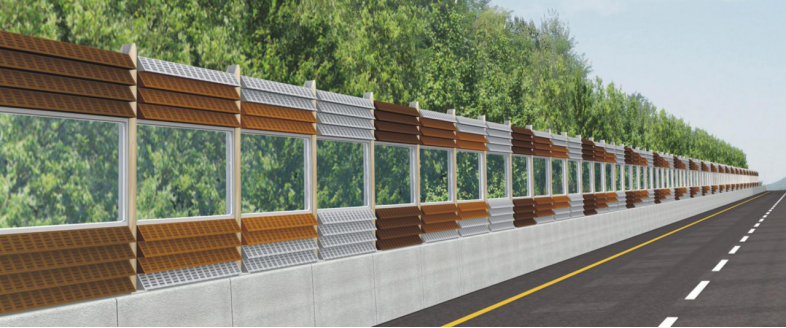

Clear panels along a highway scheme

Send run length, barrier height, panel thickness and grade, frame material and finish, fixing detail, weight limit of the structure and the port of discharge.
