Noise Barrier
Noise Barrier
This project case covers the installation of metal noise barrier panels along the outer edge of an elevated bridge structure. The barrier runs as a continuous curved line beside the deck, where the elevated alignment passes close to high-rise residential buildings and busy roads.

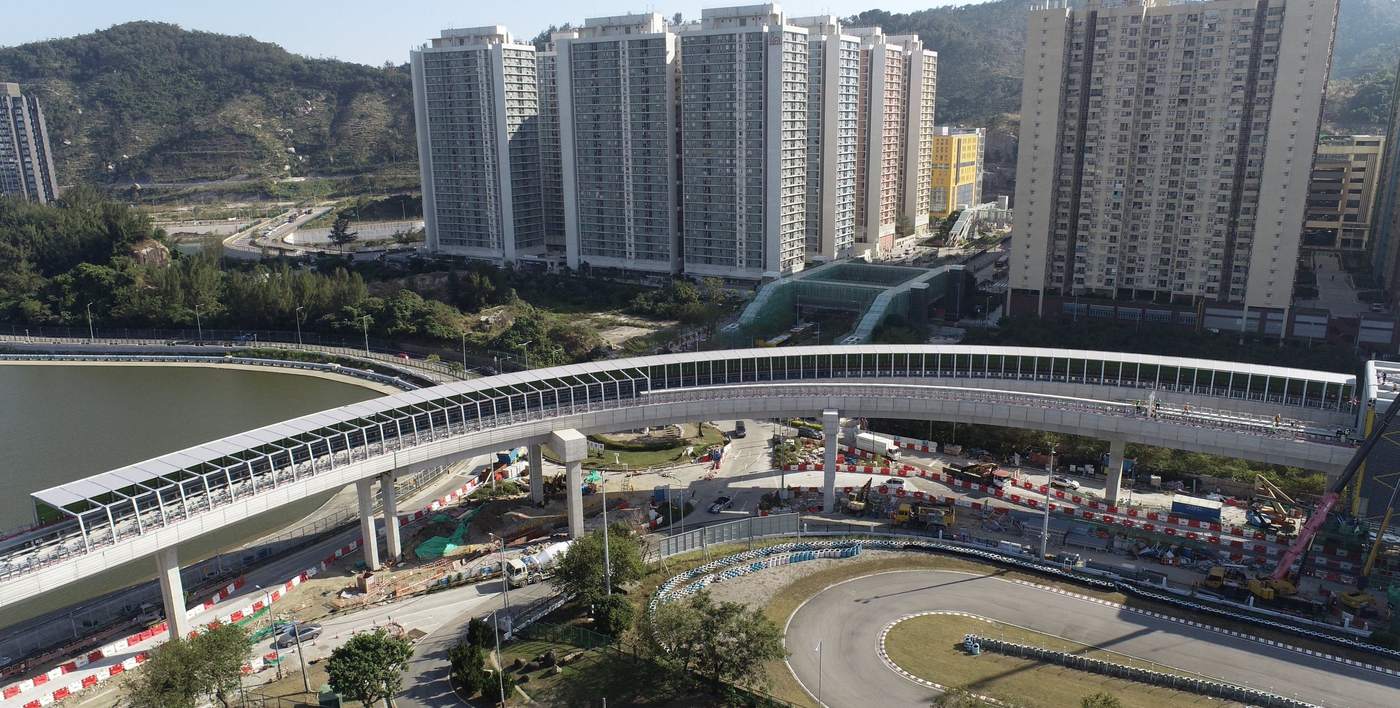

Aerial view of the elevated bridge with metal noise barrier panels along its edge
Elevated bridge structures carry road and rail traffic above ground level, so noise radiates outward and downward towards the buildings and streets alongside the alignment. Where the structure runs close to residential blocks, a barrier is needed along the outer edge of the deck to reduce the traffic noise that reaches nearby homes and pedestrians. The barrier also has to follow the curve of the elevated structure and stand up to wind, vibration and weather over the long term.
Metal noise barrier panels are mounted along the outer face of the elevated bridge structure, forming a continuous screen that follows the curve of the deck. The panels are set into a metal frame and fixed with bolts, so the run can be built in repeating bays and adjusted to suit the alignment. In this project the panels are finished in green and white, giving a clean, even appearance that sits comfortably with the surrounding residential and roadside environment.

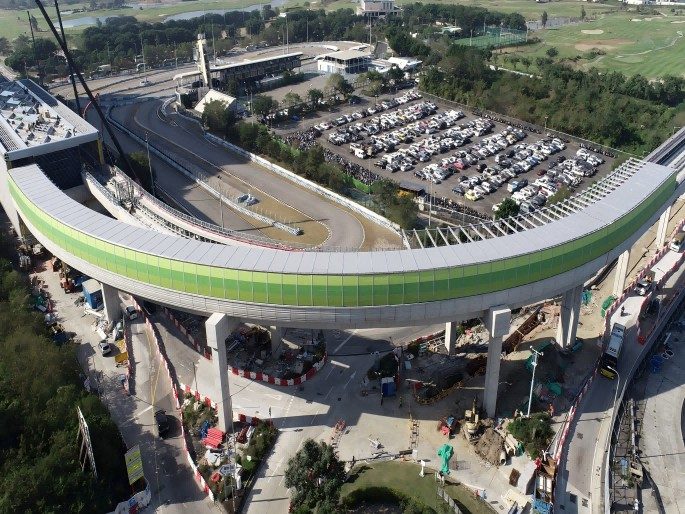

Curved elevated structure enclosed with green metal noise barrier panels
Each bay is built from standard metal noise barrier panels, so the barrier is modular and can be assembled panel by panel along the elevated structure. A close-up view shows the panel faces, the fixing frame and the bolted connections that tie the panels together.

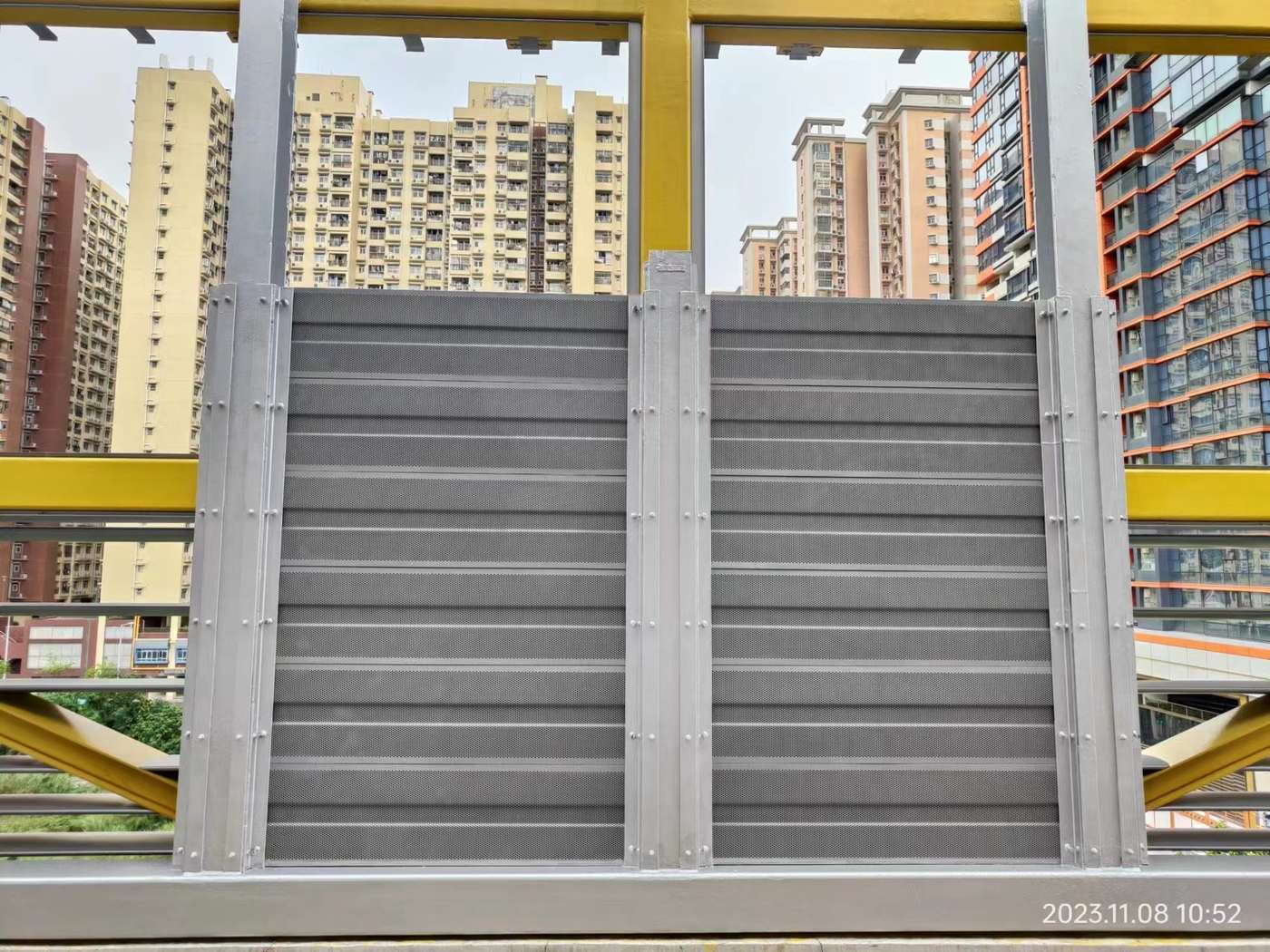

Close-up of the metal noise barrier panels and fixing frame
Because the barrier is installed along an elevated line, the panels are lifted into position from the ground. A boom lift is used to raise panels and frame components to deck level, where the crew aligns and bolts each section in place.

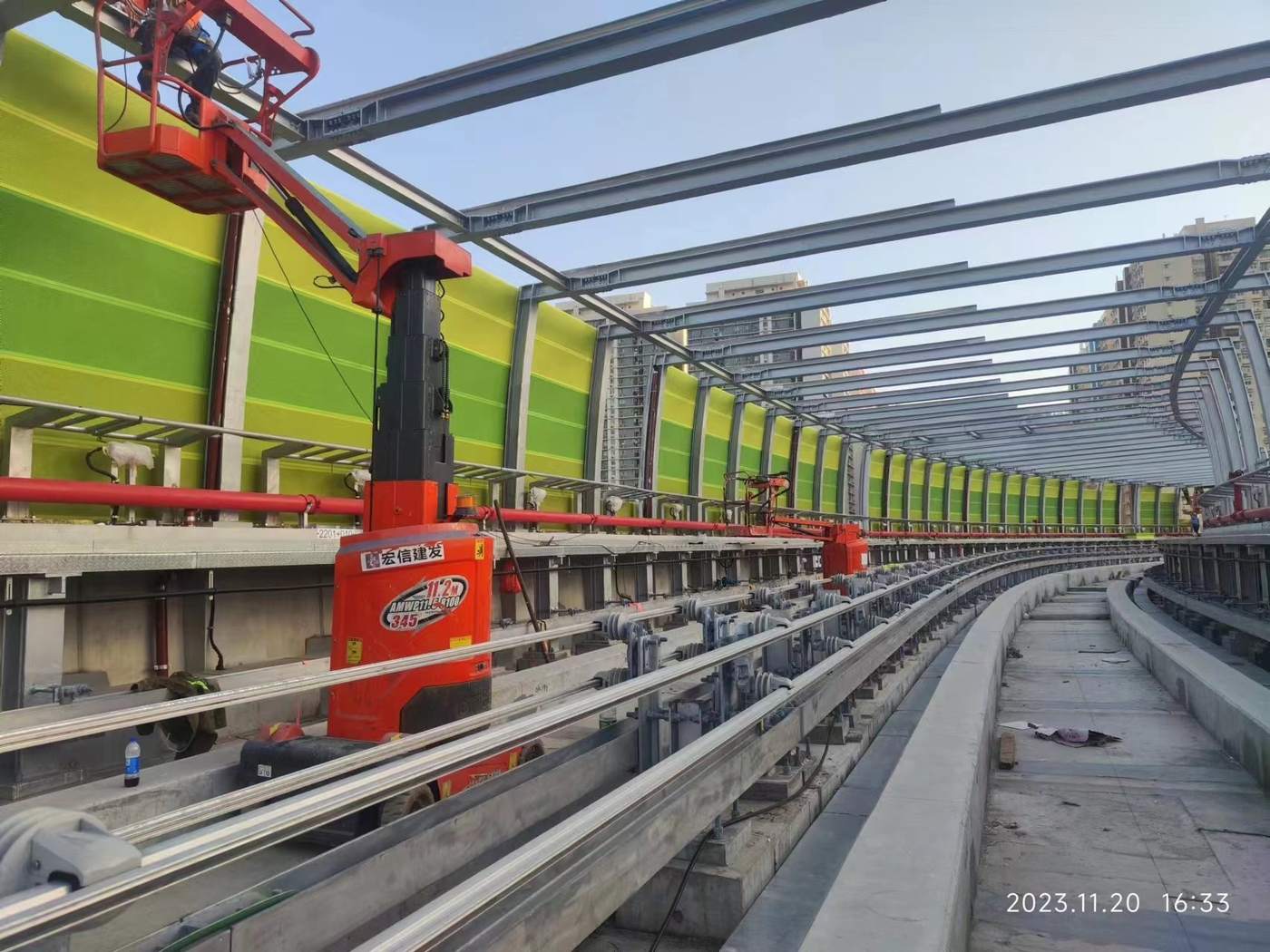

Boom lift installing noise barrier panels along the elevated line
Once complete, the barrier forms a long, continuous screen along the outer edge of the elevated structure. Seen from the air, the finished run follows the curve of the alignment and stands as a neat, uniform band of panels above the road and the surrounding buildings.

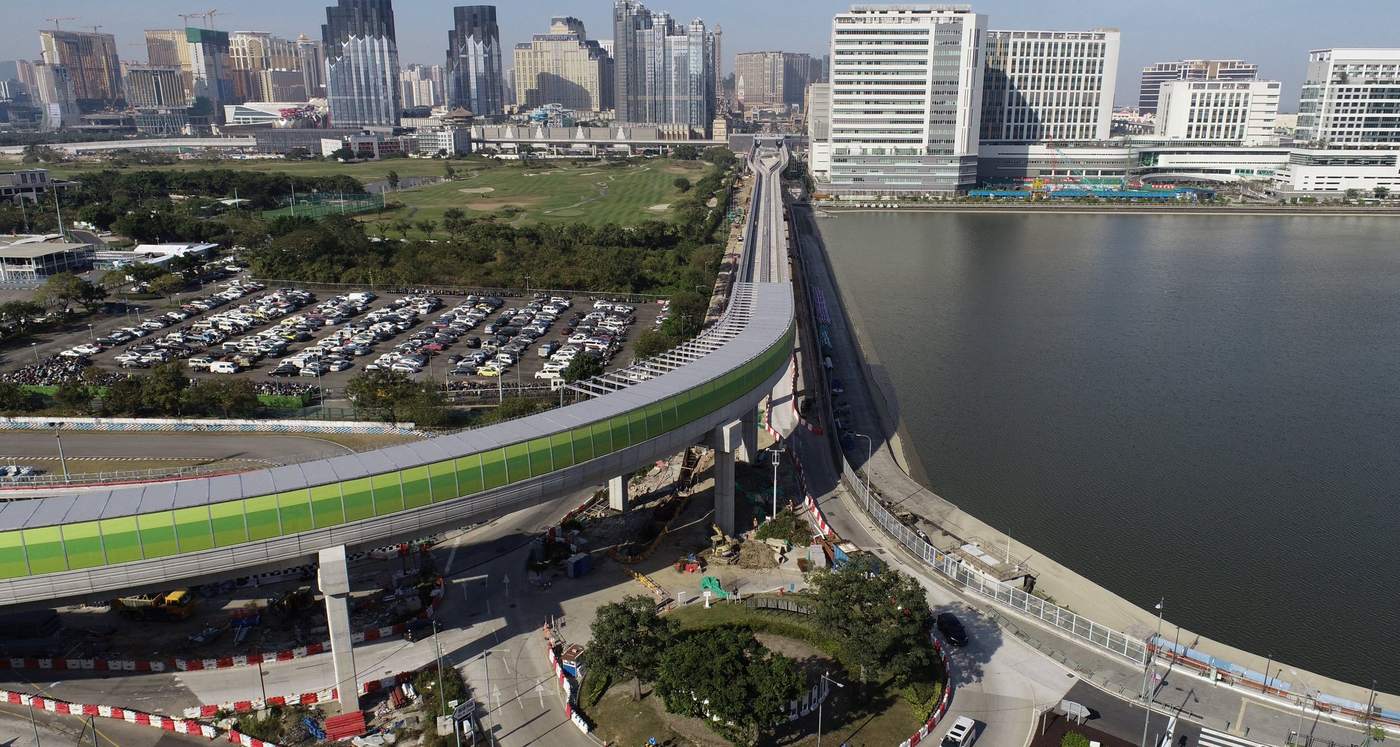

Long aerial view of the elevated line protected by noise barrier panels

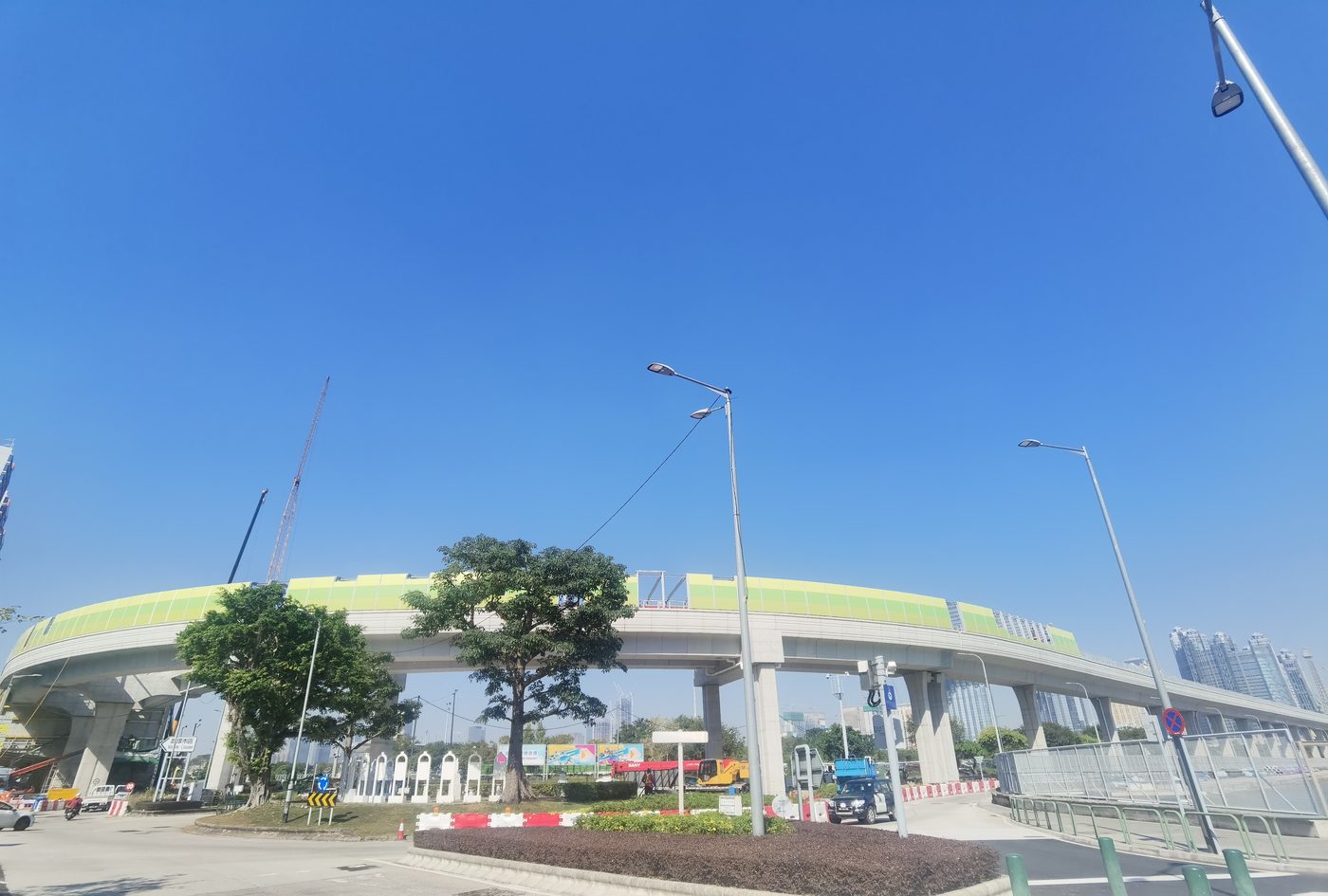

Street-level view of the elevated bridge and its curved noise barrier
Elevated road and rail bridge structures
Metro and light rail viaducts
Highway flyovers and ramps
Residential areas beside elevated lines
They are used to reduce the traffic noise that reaches homes, schools and other sensitive buildings beside roads, bridges and elevated rail lines.
Yes. Because the panels are modular and set into a metal frame, the barrier can be built in short bays and stepped or angled to follow the curve of the deck.
Panels and frames are lifted to deck level with a boom lift, then aligned and bolted into place along the outer edge of the structure.
If you are planning a noise barrier along an elevated bridge or viaduct, send us your alignment and requirements and our team will help you select the right metal noise barrier panels for the job.
This project case covers the installation of metal noise barrier panels along the outer edge of an elevated bridge structure. Green and white panels, mounted on metal frames, are used to control traffic noise for the surrounding residential area.
