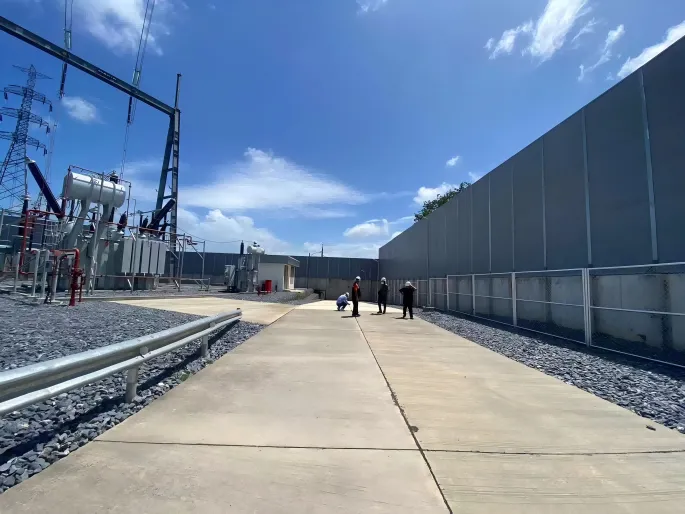

For Sub Station Phuket 3 in Thailand Hebei Jinbiao supplied a metal noise barrier with rock wool infill around the transformer yard. Substation noise is tonal and low-frequency, so the barrier is specified for mass and height rather than for a perforated absorptive face.

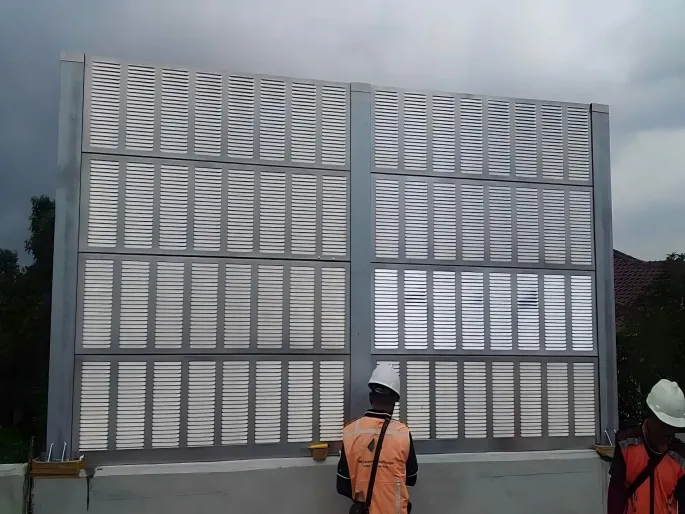

For an Indonesian road project Hebei Jinbiao supplied galvanised metal louver noise barriers with rock wool infill. The louvered face sheds monsoon rain instead of trapping it, and the galvanised finish suits a hot, humid site where a painted face would need recoating sooner than the structure needs replacing.
For the Kuwait RA264 road project Hebei Jinbiao manufactured and supplied 8,000 m² of 1.1 m high full acrylic micro-arc noise barrier. The panels are bolted through flat steel posts onto the existing concrete roadside barrier, so the screen adds height without adding a foundation, and the ribbed acrylic keeps the view and the daylight open along the whole run.
For the Kuwait AZPS bridge, Hebei Jinbiao supplied a metal louver noise barrier carried on white steel posts along the edge of the concrete parapet. The louvered face lets air and light through, which keeps the wind load on a long bridge edge down, and the panels are banded in green and two blues to read as a landscape element rather than a wall.
The B1 noise screen supplied for a Swedish town centre works site uses green absorptive panels between galvanised posts, standing on the paved surface so no excavation was needed in a public square. The panels lift out individually, which lets the screen follow the works instead of being built once and abandoned.
For the Macao A2 bridge project in 2024 Hebei Jinbiao supplied absorptive metal noise barrier panels in steel frames, carried on H-section posts with base plates anchor-bolted into a cast concrete upstand. The run steps down in height where the base level changes, so the barrier follows the structure instead of fighting it.
