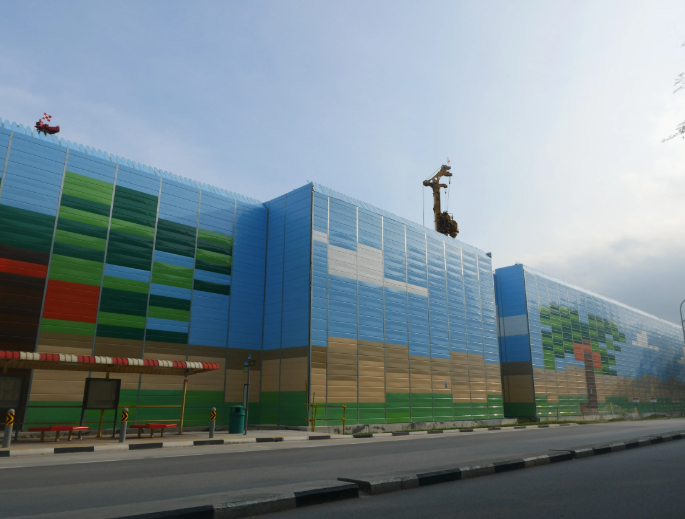

Temporary Noise Control Barrier Inspection Checklist: Gaps, Damage, Stability, and Weather Resistance

A temporary noise barrier can lose effectiveness when panels become damaged, joints open, or supports move out of position. Regular inspections help maintain acoustic performance and prevent structural problems throughout construction, roadwork, and industrial projects.

Use this checklist before operation, after relocation, and following severe weather.

1. Check for Gaps and Openings

Sound can pass through even small openings. Inspect the entire barrier line for:

• Gaps between adjacent panels

• Open spaces beneath the barrier

• Unsealed joints around posts

• Openings created for cables, pipes, or site access

• Poorly closed gates and removable sections

Panels should form a continuous barrier between the noise source and nearby receivers. Seal unnecessary openings and keep access points closed when they are not in use.

2. Inspect Panels for Damage

Examine both sides of every panel. Look for dents, cracks, corrosion, loose perforated sheets, exposed acoustic filling, and damaged protective coatings.

A damaged outer shell may allow rainwater to reach the internal sound-absorbing material. Wet or displaced infill can reduce absorption performance and shorten the panel’s service life. Repair minor coating damage promptly and replace panels with serious structural or acoustic damage.

3. Confirm Structural Stability

Inspect posts, bases, brackets, bolts, and connecting components. Check whether:

• Posts remain vertical

• Bolts and fasteners are tight

• Panels are securely seated

• Foundations or temporary bases have shifted

• Bracing components are bent or missing

• Vibration from machinery has loosened connections

Any leaning, movement, or unusual vibration should be investigated immediately. Structural requirements must be reviewed when barrier height, panel arrangement, or site conditions change.

4. Review Weather Resistance

Outdoor barriers are exposed to wind, rain, sunlight, dust, and temperature changes. Inspections should be performed after storms or strong winds.

Check drainage around the barrier base, remove accumulated debris, and inspect metal surfaces for corrosion. Make sure protective finishes remain intact and that water cannot enter the panel core. In coastal or high-humidity environments, corrosion-prone connections may require more frequent inspection.

5. Recheck After Relocation

Temporary barriers are often dismantled and reused as the work zone changes. Before reinstalling a panel, inspect lifting points, edges, joints, and connection hardware. Replace bent fasteners and confirm that the new layout does not create acoustic gaps.

For demanding outdoor projects, a modular Temporary Noise Control Barrier with galvanized steel construction, corrosion-resistant surfaces, and reusable panels can simplify inspection, relocation, and maintenance.

Recommended Inspection Schedule

Conduct a visual check before each work shift and a more detailed inspection weekly. Additional inspections should follow:

• Strong winds or heavy rainfall

• Accidental vehicle or equipment impact

• Barrier relocation

• Changes in nearby noise-sensitive areas

• Noticeable increases in measured noise levels

Final Check

A temporary noise control barrier should remain continuous, undamaged, stable, and suitable for the local weather conditions. Keeping inspection records also helps contractors identify recurring problems and plan repairs before acoustic or structural performance is affected.
