High-speed railways generate continuous aerodynamic, wheel-rail, and structural noise, especially when trains operate near residential areas, bridges, stations, and urban corridors. For this reason, HSR metal noise barriers are widely used to reduce sound transmission and improve the acoustic environment around railway infrastructure.
However, the performance of a noise barrier depends not only on the panel itself, but also on correct structural design, foundation preparation, installation accuracy, sealing, and long-term maintenance. The following installation requirements and best practices can help contractors, railway project companies, and engineering buyers achieve more reliable noise reduction performance.
Before installation begins, the barrier system should be designed according to the actual railway environment. Important factors include:
● Required barrier height and total length
● Train operating speed
● Local wind load
● Distance between the railway and nearby buildings
● Bridge, embankment, or ground installation conditions
● Required acoustic performance
● Corrosion resistance requirements
● Foundation and support structure design
For high-speed railway projects, wind pressure is particularly important. Trains moving at high speeds can generate significant pressure fluctuations, while outdoor barriers are also exposed to natural wind loads.
Therefore, steel posts, panels, bolts, and foundations should be selected according to the structural load requirements of the project.
The foundation determines the stability of the entire barrier system. Depending on the project, HSR noise barriers may be installed on concrete foundations, railway embankments, bridges, viaducts, or retaining structures.
Before installing the panels, contractors should check:
● Foundation dimensions
● Anchor bolt positions
● Vertical alignment of steel posts
● Spacing between support posts
● Concrete strength
● Embedded parts and connection points
Any large deviation in post spacing or vertical alignment may make panel installation difficult and create gaps that reduce acoustic performance.
For bridge-mounted barriers, the connection between the support posts and bridge structure should also be checked carefully because vibration and dynamic loads can be higher than in ground-mounted applications.
Steel posts are usually installed first and serve as the main support structure for the metal noise barrier panels.
During installation, each post should be checked for verticality and spacing. Posts should also be firmly connected to the foundation using anchor bolts, embedded plates, or other designed fixing systems.
Common installation problems include:
● Incorrect post spacing
● Loose anchor bolts
● Uneven post height
● Misaligned support structures
● Insufficient corrosion protection around connection areas
Accurate post installation makes the following panel installation easier and improves the overall structural stability of the system.

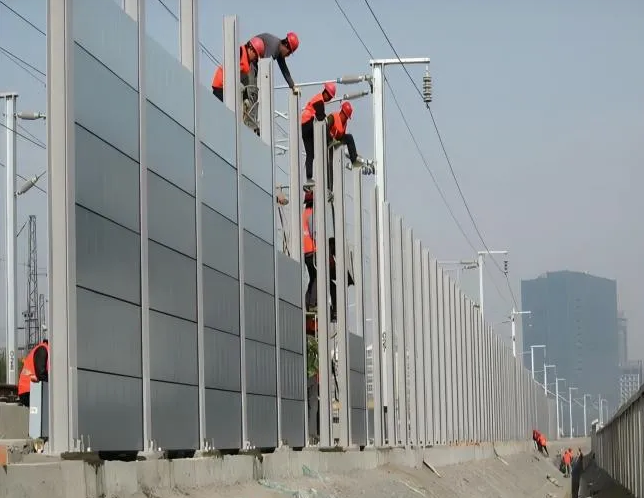

After the posts are secured, the panels can be installed between the support structures.
A typical HSR metal noise barrier panel may include a perforated metal face, internal sound-absorbing material, protective layers, and a solid rear plate.
During installation, panels should be inserted or fixed according to the designed orientation. Contractors should avoid damaging the perforated surface, internal acoustic material, or protective coating.
Panels should fit closely together. Large gaps between panels can allow sound to pass through and reduce the actual noise reduction performance.
For railway infrastructure projects requiring durable acoustic protection, buyers can refer to our HSR Metal Noise Barrier solution for high-speed railway applications.
One of the most important installation details is sealing.
Even when high-performance acoustic panels are used, gaps around posts, panel joints, foundations, or structural connections can significantly reduce the effectiveness of the barrier.
Installers should therefore check:
● Joints between adjacent panels
● Contact areas between panels and posts
● Bottom gaps between panels and foundations
● Corners and transition sections
● Connections around bridge structures
Rubber sealing strips, acoustic seals, or other suitable materials may be used depending on the barrier design.
HSR metal noise barriers are installed outdoors for long periods and may be exposed to rain, humidity, dust, salt, and industrial pollutants.
Panels and steel structures are therefore commonly protected by galvanizing, powder coating, or other corrosion-resistant surface treatments.
During transportation and installation, contractors should avoid scratching or damaging the protective coating. If damage occurs, the affected area should be repaired according to project requirements.
This is especially important for projects located in coastal, humid, or highly polluted environments.
After installation is completed, the entire barrier system should be inspected before acceptance.
The inspection should include:
● Panel alignment
● Post verticality
● Fastener tightness
● Joint sealing
● Surface coating condition
● Foundation stability
● Panel damage
● Overall structural continuity
Where required, acoustic testing can also be carried out to confirm that the installed barrier meets the expected noise reduction performance.
For high-speed railway projects, installation quality directly affects both structural safety and acoustic performance. Contractors should follow approved engineering drawings, use qualified fasteners and sealing materials, and carefully control installation tolerances.
It is also recommended to inspect the barrier periodically after commissioning. Loose bolts, damaged coatings, deformed panels, or failed sealing components should be repaired as early as possible.
A properly designed and installed HSR metal noise barrier can provide reliable railway noise control while maintaining structural stability under long-term wind, vibration, and environmental exposure.
