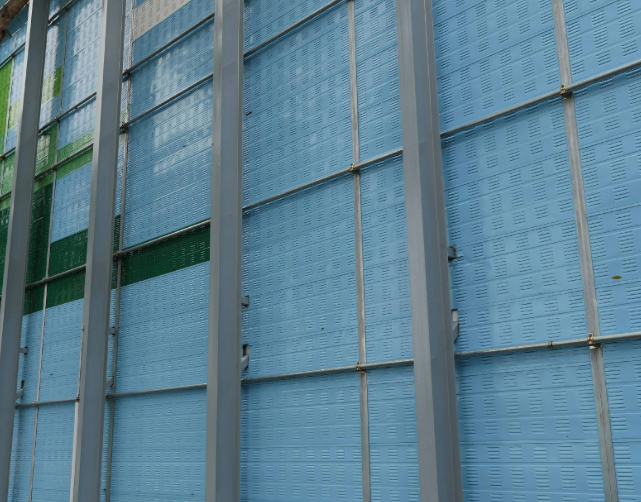

How to Reduce Noise Leakage at Barrier Joints and Connections?

A noise barrier can have good acoustic performance as an individual panel and still underperform after installation. One common reason is sound leakage through joints, connections and unintended gaps.

For highway, bridge and railway projects, joint design should therefore be treated as part of the acoustic system—not simply as an installation detail.

Where Does Noise Leakage Occur?

The most critical locations are usually the interfaces between different components:

The key point is that a continuous acoustic path must be maintained across the entire barrier system.

1. Minimize Gaps Between Panels

Panel-to-panel joints should be designed to prevent direct openings through the barrier.

Depending on the barrier construction, this may involve:

• Interlocking panel profiles

• Overlapping edges

• Sealing strips

• Gaskets

• Properly designed joint covers

• Controlled installation tolerances

The objective is not simply to make the joint visually tight. The joint should prevent a direct sound path through the barrier.

2. Pay Attention to Panel-to-Post Connections

Posts provide structural support, but they can also become potential leakage points if the panel does not fit closely against the post.

A properly engineered system should consider the interface between:

Panel → Connection → Post

Rather than designing the acoustic panel and structural post independently.

For modular noise barriers, connection details should be defined before production so that the installed system maintains consistent contact between components.

3. Control the Gap at the Bottom

The gap between the bottom of the barrier and the supporting surface is particularly important.

On highways and bridges, the supporting surface may not be perfectly level. Small openings can therefore appear during installation.

Possible solutions include:

• Properly designed bottom profiles

• Base seals

• Continuous support structures

• Site-specific foundation detailing

• Controlled installation tolerances

For projects requiring higher acoustic performance, the bottom interface should be included in the engineering review rather than treated as a cosmetic issue.

4. Design Around Expansion and Structural Movement

Bridge and elevated-road applications require additional consideration because the supporting structure can experience thermal movement, vibration and other displacement.

A joint that is completely rigid may not be appropriate for every structure.

Instead, the barrier needs to accommodate the required movement without creating a direct acoustic opening.

This is why expansion joints and structural interfaces should be specified as part of the complete noise barrier design.

5. Avoid Unnecessary Openings

Every opening in a noise barrier should have a clear engineering reason.

Drainage, maintenance access, utilities, inspection points and other project requirements may require interruptions in the barrier. These locations should be incorporated into the acoustic design rather than added after the barrier layout has been finalized.

For example, an access gate should maintain the required acoustic continuity when closed.

6. Consider the Barrier Ends

Not all sound leakage occurs through physical gaps.

At the ends of a barrier, sound can travel around the edge through diffraction. Therefore, simply sealing the panel joints will not solve every acoustic weakness.

Barrier length, end treatment, surrounding terrain and the relative position of the source and receiver should be considered during project design.

For large infrastructure projects, acoustic modeling can help determine whether extending or modifying the barrier ends would provide a meaningful improvement.

7. Installation Quality Matters

Even a well-designed joint can lose performance because of poor installation.

Before handover, inspection should focus on:

• Visible gaps between panels

• Loose or incorrectly installed connections

• Damaged seals

• Uneven bottom interfaces

• Openings around posts

• Incorrectly installed access components

• Damage caused during transportation or installation

A practical approach is to inspect the complete installed barrier, not only individual panels.

Design the Joint as Part of the Barrier System

Noise leakage is rarely caused by one specification alone. It is normally the result of the interaction between panel design, connection details, structural movement and installation tolerances.

For this reason, acoustic performance should be considered at the system level:

Panel Performance → Joint Design → Structural Connection → Foundation Interface → Installation → Final Inspection
