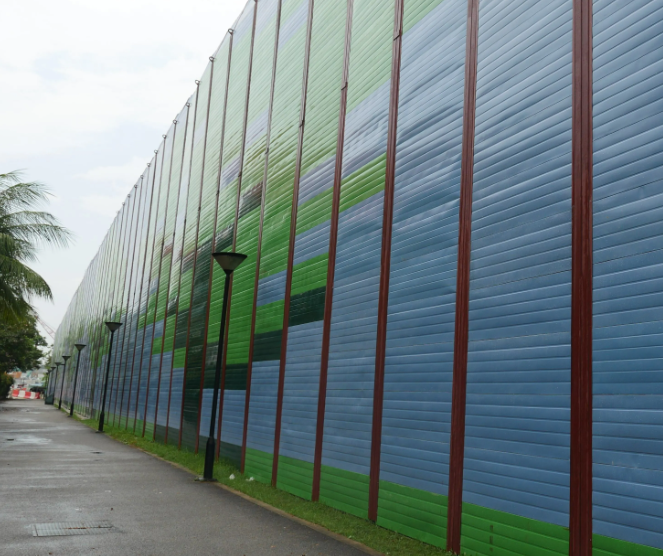

How to Determine the Right Height and Placement for a Temporary Noise Control Barrier

A temporary noise control barrier works by interrupting the direct path between a noise source and nearby workers, residents, offices, or other sensitive receivers. Its effectiveness depends not only on the panel’s acoustic properties but also on its height, location, length, and installation quality.

Identify the Noise Source and Receiver

Start by locating the main noise-producing equipment and the area that requires protection. Typical sources include generators, compressors, piling equipment, concrete saws, and demolition machinery.

The barrier must block the direct line of sight between the source and the receiver. If either can be seen over or around the barrier, sound can travel more easily to the protected area.

Determine the Required Barrier Height

The barrier should extend above the line connecting the noise source to the receiver. Taller barriers generally provide better screening, but unnecessary height increases material requirements, wind load, foundation demand, and installation cost.

When selecting the height, consider:

• Height of the noise source

• Elevation difference between the source and receiver

• Distance to nearby buildings or site boundaries

• Required noise reduction

• Local wind-load and structural requirements

Elevated equipment may require a taller barrier or a partial enclosure. An acoustic engineer should verify the design for projects with strict boundary noise limits.

Place the Barrier Close to the Noise Source

Whenever site conditions permit, install the barrier as close as practical to the noise source. This creates a larger acoustic shadow behind the barrier and can improve noise reduction without substantially increasing its height.

If the barrier cannot be installed near the equipment, placing it close to the receiver may also be effective. Positioning it halfway between the source and receiver is generally less efficient unless site access or safety requirements leave no alternative.

Provide Sufficient Barrier Length

Sound can travel around the ends of a barrier. The system should extend beyond both sides of the noise source instead of covering only the area directly in front of it.

For equipment operating in a fixed location, a U-shaped or partial enclosure may provide better control than a single straight barrier. However, openings must remain available for ventilation, maintenance, and safe access.

Eliminate Gaps and Openings

A well-positioned barrier can still perform poorly if it contains gaps. Check for openings:

• Between adjacent panels

• Beneath the barrier

• Around posts and structural supports

• At access gates

• Where cables or pipes pass through

Panels should form a continuous surface. Seal unnecessary openings with compatible acoustic materials while maintaining safe site access.

Consider Wind, Ground, and Access Conditions

Greater height increases wind pressure on panels, posts, and foundations. The support structure must suit the expected wind load, soil conditions, barrier dimensions, and installation period.

The selected position should also avoid obstructing emergency routes, equipment movement, drainage, ventilation, and driver visibility. Barriers near roads or mobile machinery may require reflective markings or other visibility measures.

Confirm Performance After Installation

After installation, inspect the barrier from the receiver’s position and confirm that the noise source is no longer visible. Noise measurements taken before and after installation can show whether the system achieves the required reduction.

For construction, roadwork, and industrial applications, a modular Temporary Noise Control Barrier can be configured according to the required height, site layout, acoustic target, and structural conditions.

The most effective design is not simply the tallest barrier. It is a continuous, correctly positioned system that blocks the direct sound path while meeting structural and operational requirements.
