The height of a noise barrier directly affects how much traffic, railway, industrial, or equipment noise can be reduced. A barrier that is too low may provide little improvement, while an unnecessarily high barrier can increase material costs, foundation requirements, wind load, and installation difficulty.
There is no single height suitable for every project. Outdoor noise barriers are commonly designed between 2 and 6 meters high, but the correct height should be determined according to the noise source, receiver position, terrain, required noise reduction, and structural conditions.
Noise normally travels in a straight path from the source to the receiver. A noise barrier works by blocking this direct path and forcing sound waves to travel over or around the structure.
When the barrier interrupts the line of sight between the noise source and the receiver, part of the sound energy is reflected or absorbed, while the remaining sound bends over the top edge. This bending effect is known as sound diffraction.
A higher barrier increases the distance that sound must travel before reaching the receiver. In many cases, this results in better noise reduction. However, height alone does not determine acoustic performance. Barrier location, length, material, continuity, and surrounding terrain are equally important.
Although every project requires individual evaluation, the following height ranges are commonly used.
Noise barriers between 2 and 3 meters high are often used for:
Residential boundaries
Small factories
Mechanical equipment
Commercial properties
Construction sites
Low-speed urban roads
Air-conditioning and generator enclosures
This height may be sufficient when the noise source is close to ground level and the protected area is also located at a relatively low elevation.
For example, a 2.5-meter barrier installed near ground-mounted equipment may effectively block direct noise transmission to nearby pedestrians or first-floor rooms.

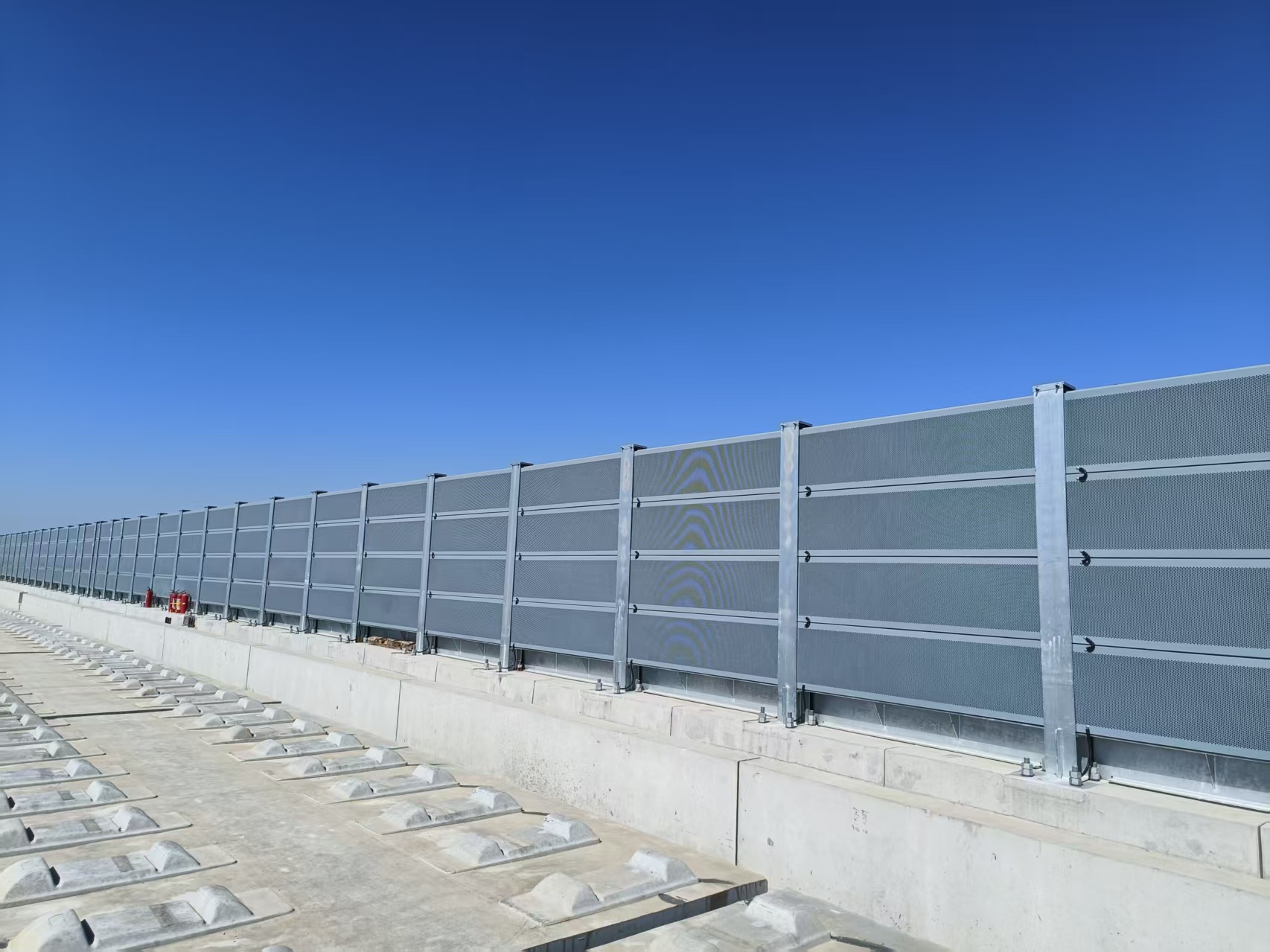

Barriers between 3 and 4 meters are widely used along:
Urban highways
Railway lines
Industrial facilities
Logistics centers
Residential developments
Bridges and elevated access roads
This range provides a practical balance between acoustic performance, structural strength, project cost, and visual impact.
A 3.5-meter barrier is often suitable when the noise source includes vehicle engines, tires, rail wheels, or medium-height industrial machinery.
Higher barriers are commonly required for:
High-speed highways
Heavy railway traffic
Elevated noise sources
Multi-story residential areas
Large industrial equipment
Power plants
Mining and processing facilities
A barrier above 4 meters can provide additional noise reduction, especially when the receiver is located at a higher elevation.
However, tall barriers experience greater wind pressure. They require stronger posts, larger foundations, more reliable fasteners, and careful structural calculations.
Barriers higher than 6 meters are less common but may be used in projects with severe noise conditions or limited installation space.
Examples include:
Elevated expressways near residential towers
Large industrial plants
Railway depots
Transformer stations
High-noise production equipment
Combined wall-and-canopy systems
For very demanding projects, simply increasing barrier height may not be the most efficient solution. An inclined barrier, curved-top barrier, partial enclosure, or complete acoustic enclosure may provide better performance.
A basic rule of noise barrier design is that the barrier should interrupt the direct line between the noise source and the receiver.
Imagine drawing a straight line from the main noise source to the point that needs protection. The top of the barrier should extend above this line.
For highway projects, the main noise source is usually considered to be near the vehicle engine, exhaust system, or tire-road contact area. For railway projects, noise may originate from wheel-rail contact, engines, brakes, pantographs, or elevated structures.
The receiver may be:
A person standing outdoors
A ground-floor window
A second-floor bedroom
A school classroom
An office building
A hospital room
A residential balcony
Protecting a second-floor window generally requires a higher barrier than protecting a ground-level garden.
Barrier position can be just as important as barrier height.
A noise barrier is usually more effective when installed close to the noise source or close to the receiver. Installing it in the middle of a wide open area may reduce its effectiveness.
For road and railway projects, barriers are often placed as close as safely possible to the traffic lane or track. This allows a lower barrier to block a larger portion of the noise path.
For industrial machinery, the barrier should generally be positioned close to the equipment, provided that ventilation, maintenance access, fire safety, and operating requirements are not affected.
A correctly positioned 3-meter barrier may perform better than a poorly positioned 5-meter barrier.
The height of nearby buildings should be carefully considered.
A standard roadside barrier may reduce noise effectively for ground-floor outdoor areas but provide limited protection for upper-floor rooms. Sound can travel over the barrier and directly reach elevated windows.
When multi-story buildings are involved, designers may consider:
Increasing barrier height
Moving the barrier closer to the source
Using an inclined top section
Installing a curved or T-shaped top
Combining the barrier with earth berms
Improving building windows and façades
Creating a partial acoustic enclosure
It is not always practical to protect every floor by increasing barrier height. Extremely tall barriers may create structural, visual, and cost problems.
When a barrier just blocks the direct line of sight, it may provide an initial noise reduction of approximately 5 decibels under suitable conditions.
Additional height can improve performance, but the improvement is not unlimited. As a general design principle, each additional meter above the line of sight may provide several extra decibels of reduction, depending on frequency, distance, terrain, and barrier geometry.
A properly designed noise barrier often achieves around 5 to 15 decibels of practical noise reduction. Greater reductions may require specially designed barrier tops, absorptive surfaces, multiple barriers, or enclosures.
The final result should be confirmed through acoustic calculations or noise modeling rather than estimated from height alone.
A tall barrier may still perform poorly if it is too short.
Noise can travel around both ends of the structure. To limit this effect, the barrier should extend well beyond the protected area.
For a single property, the barrier often needs to continue past both sides of the receiver. For roads and railways, long continuous sections are generally more effective than short isolated panels.
Gaps for access doors, drainage, utility lines, or uneven ground should also be minimized. Even a small opening can allow noise to pass through and reduce the overall performance.
Standard vertical barriers are suitable for many projects, but alternative top designs can improve performance where height is restricted.
Inclined panels can direct reflected sound away from nearby receivers. They are often used along roads, bridges, and railways.
A curved top increases the sound travel path and may improve diffraction performance without requiring a much taller vertical structure.
A T-shaped or Y-shaped top can provide additional acoustic shielding where the available foundation width is limited.
For severe traffic or railway noise, a cantilever canopy or partial enclosure may be more effective than a very tall open barrier.
The best structure depends on acoustic targets, wind load, road clearance, maintenance access, and project budget.
Increasing barrier height also increases structural requirements.
Tall noise barriers must withstand:
Wind pressure
Vehicle-induced vibration
Train pressure waves
Temperature changes
Snow and ice loads
Impact risks
Foundation settlement
Long-term material fatigue
Higher barriers usually require larger steel posts, reduced post spacing, deeper foundations, stronger anchor bolts, and more rigid panels.
Transparent acrylic or polycarbonate panels must also be selected with sufficient thickness and edge support to avoid excessive movement or cracking.
Before finalizing the barrier height, structural calculations should be completed according to local wind conditions and engineering standards.
A professional noise barrier height calculation should consider:
Noise source height and frequency
Receiver height and distance
Existing ground elevations
Road, railway, or equipment layout
Required noise reduction
Barrier location and length
Reflective or absorptive panel design
Wind load and foundation conditions
Nearby buildings and reflective surfaces
Local planning and safety requirements
For simple equipment projects, site measurements may be sufficient. Large highway, railway, or industrial projects normally require acoustic modeling and structural engineering.
Selecting a lower barrier to reduce the initial cost may result in poor acoustic performance. At the same time, specifying an excessively high barrier can increase steel consumption, foundation size, transportation costs, and installation risk.
The most economical solution is not always the shortest or tallest barrier. It is the structure that achieves the required noise reduction with suitable materials, positioning, panel design, and structural support.
