Double Wire Mesh Fence Panels: 8/6/8 Wire Construction
Stacked galvanised double wire panels showing the twin horizontal wires

Two Wires Where It Matters

A double wire panel carries two horizontal wires at the top and two at the bottom, welded either side of a single vertical wire. The middle of the panel is a plain grid. That arrangement puts the extra steel exactly where a panel bends and where a blade is most likely to start.

It is the reason a double wire panel weighs more than a single wire panel of the same height, and why it stays flat across a wider post spacing.

How the Panel Is Welded

Wire sizes and the weld

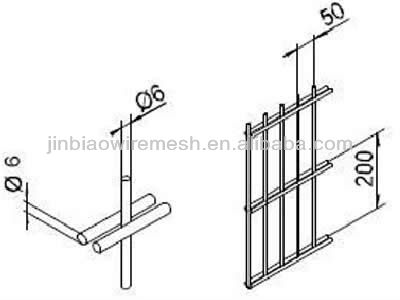

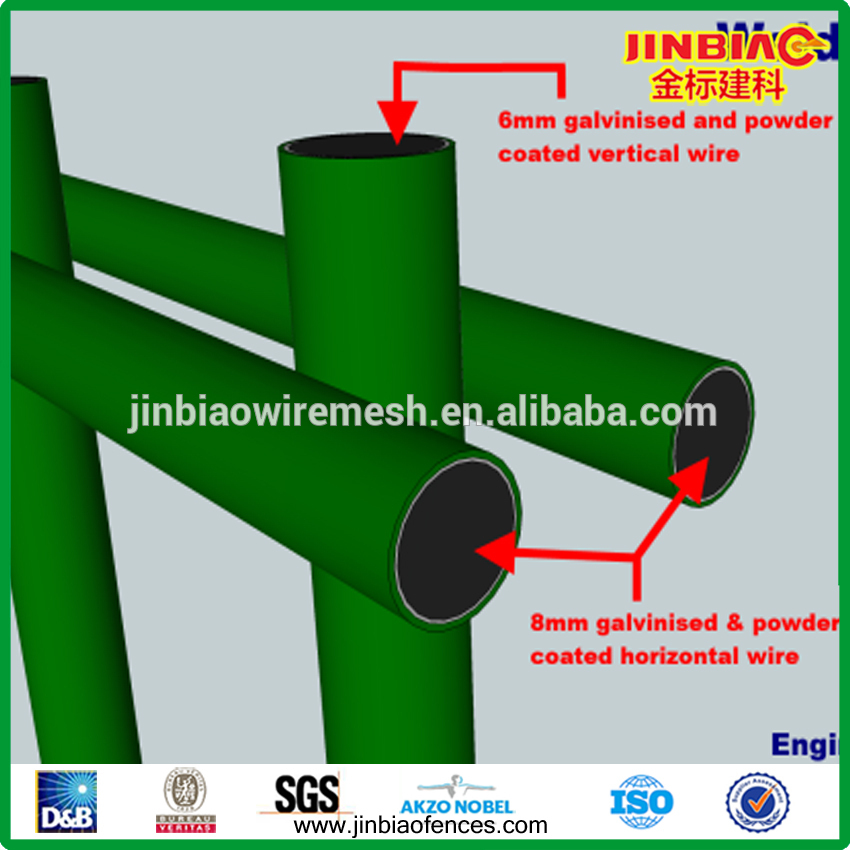

The common build is 8 mm horizontal wires paired around 6 mm verticals - written 8/6/8. Heavier and lighter versions exist, but the principle is the same: the horizontal pair is welded at every crossing, so the two wires act as one member rather than two wires sitting side by side.

Welding happens before coating. A panel that is welded first and galvanised afterwards has zinc over the weld; a panel coated first and welded afterwards leaves bare metal at every crossing.

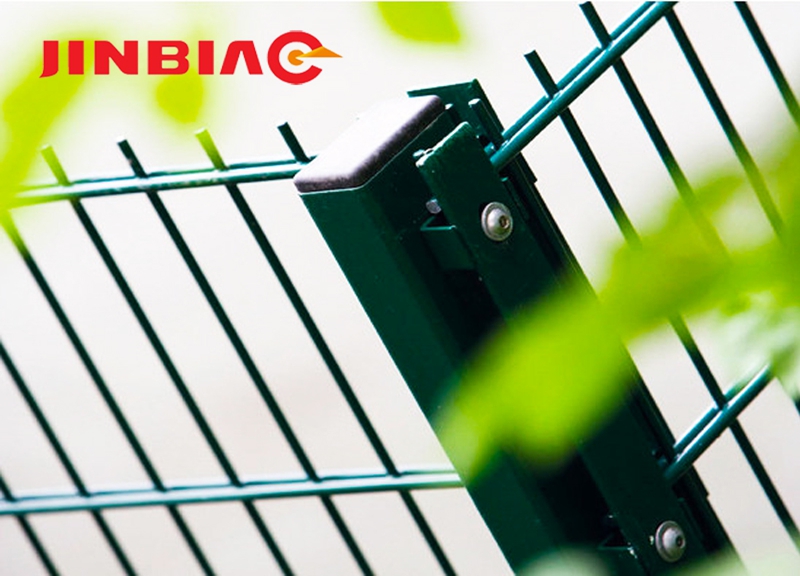

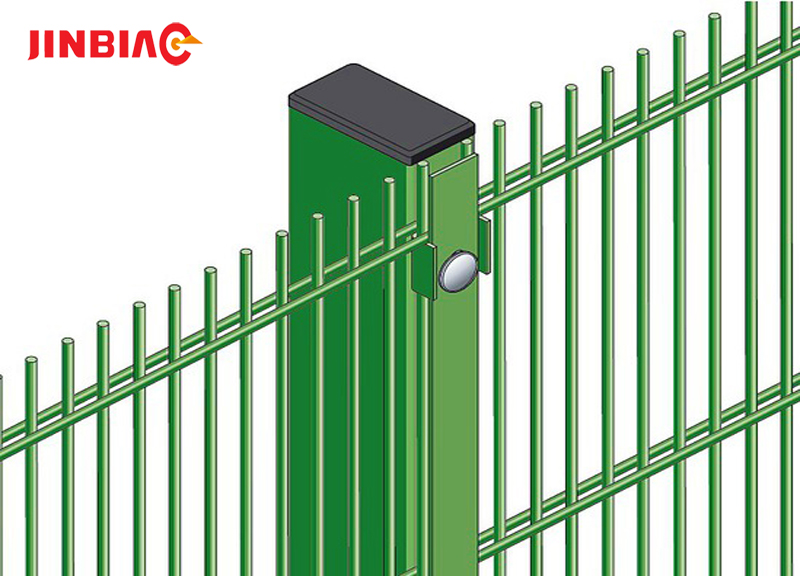

Post cap and twin wire detail on a double wire panel

What the Twin Wire Does to Rigidity

Close view of the welded twin wire grid

A paired horizontal wire is roughly twice as stiff as a single wire of the same diameter, because the pair resists bending as a unit. In practice that means the panel can span wider post centres without oil-canning, and it recovers its shape after a knock instead of staying dished.

It also changes how the fence is cut: the twin wires have to be cut as a pair, so panel ends are usually finished with a rolled or trimmed edge rather than left open.

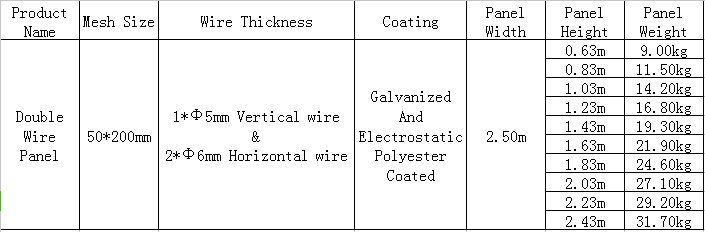

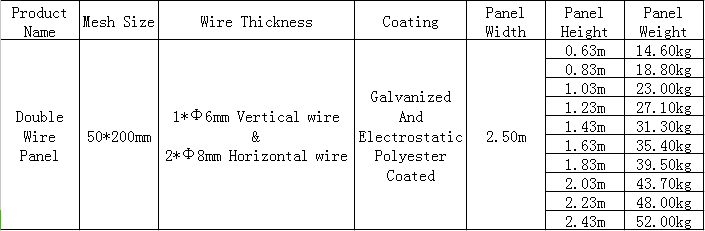

Panel Sizes and Post Centres

Panels are normally supplied at 1.8 m, 2.0 m or 2.4 m high and 2.5 m wide. Post centres follow the panel width; on exposed sites we shorten the span rather than step up the post section.

Heights above 2.4 m are usually built as a taller panel on a deeper post rather than by stacking two panels, because a joint mid-height is the first place a climb starts.

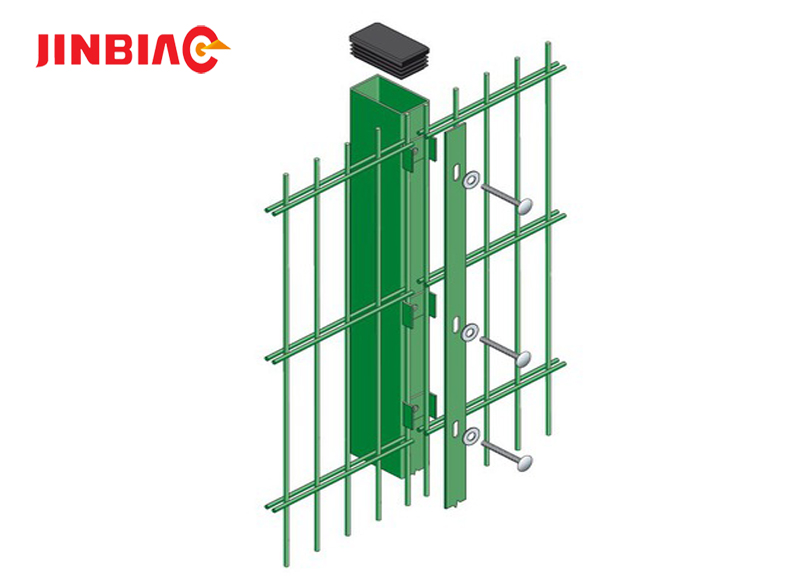

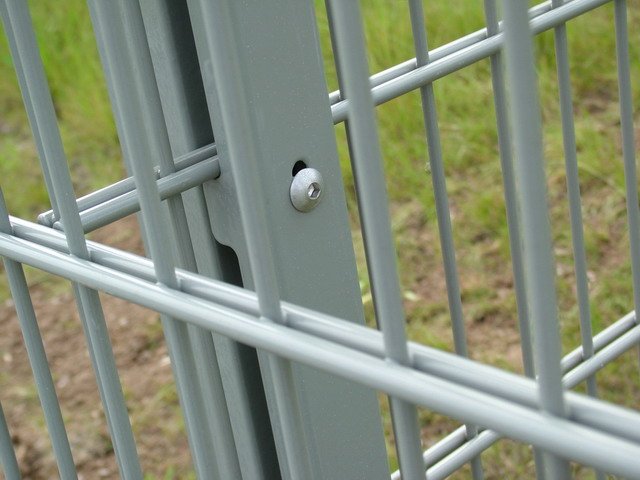

Double wire panel fixed to a steel post
Galvanised double wire panels in the workshop

Coating Options

Panels are supplied hot dip galvanised, or galvanised and then powder coated in green, black, grey or a RAL colour. The coating choice matters more on a double wire panel than on a single wire one, because the paired wires create a crevice where water sits.

Galvanising before coating keeps zinc in that crevice; coating straight onto untreated wire leaves a bare gap that rusts from the inside.

What to Send

Green double wire panels following a road boundary

Send run length, panel height and width, wire combination (8/6/8 or other), mesh aperture, coating, colour, post section and the port of discharge. We return a panel schedule, a post list and a fixing count with the quotation.
