High quality galvanized low moq twin double fence panel wire welded mesh fence

    Surface Treatment:
    Electric Gal.: 40~60g/sq. M.
    Hot dipped Gal.: 40~500g/sq. M.
    Powders spread coating: 160~240 microns
    PVC/PE dipped coating: 600~1000 microns

    Common Colors:
    Moss green (RAL6005),
    Pure white (RAL9010),
    Stone grey (RAL7030),
    Traffic red (RAL3020),
    Traffic yellow (RAL1023), and Traffic blue (RAL5017).
    Besides, other RAL color required can be delivered to us.


Material:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the construction.

Post:
This System usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2. 5mm, 120*60*3mm) With the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.

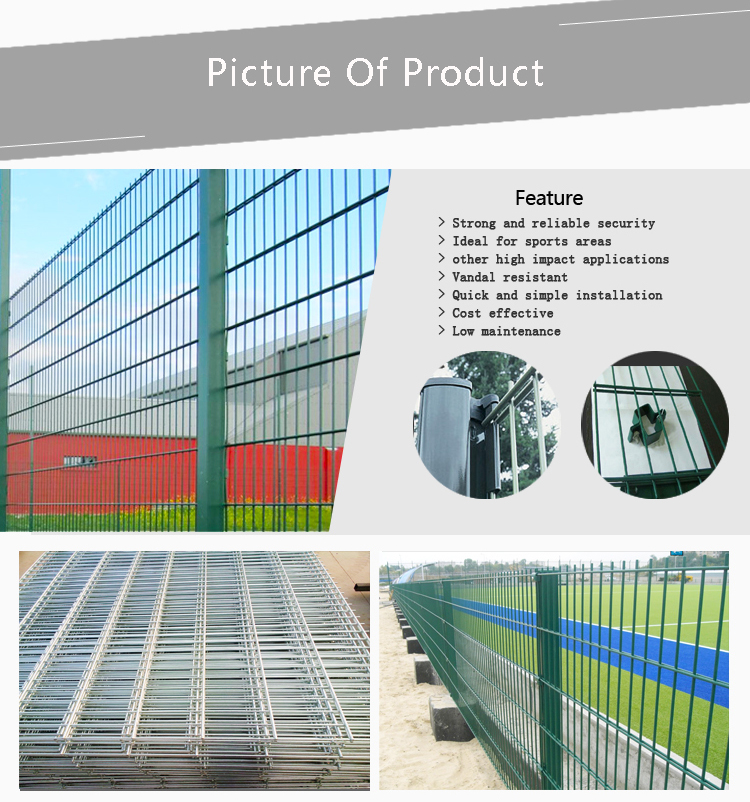

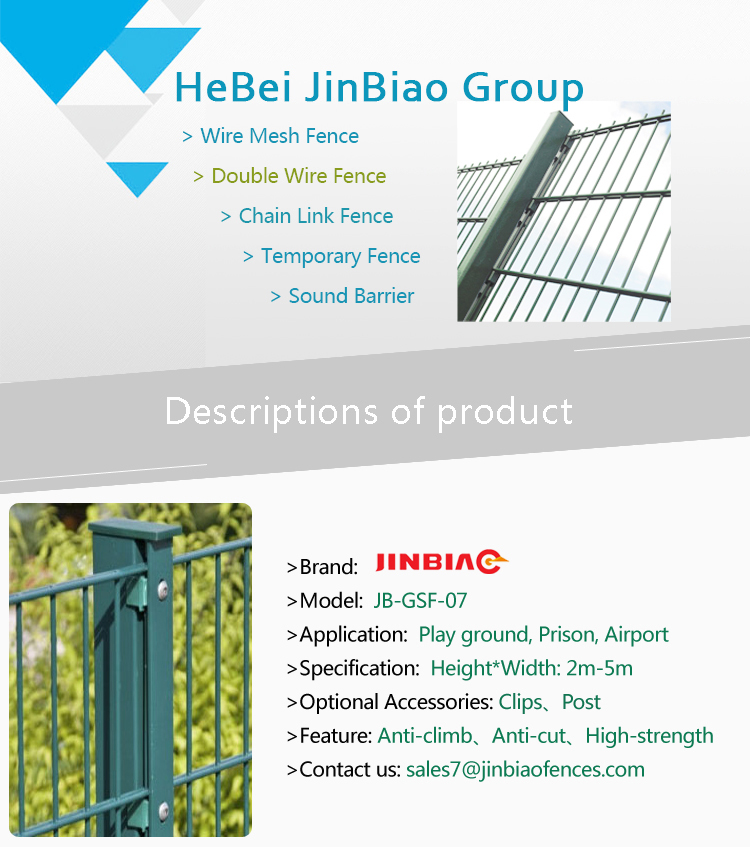

double wire fence .jpg



Double Wire Fence

Height
x Width (Panel)
mm

Mesh Size
mm.

Wire Diameter

Post of Height
mm

Wire Dia
mm

Wire Dia
mm

Wire Dia
mm

630*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

1100

830*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

1300

1030*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

1500

1230*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

1700

1430*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

1900

1630*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

2100

1830*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

2400

2030*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

2600

2230*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

2800

2430*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

3000

 fence (6).jpg

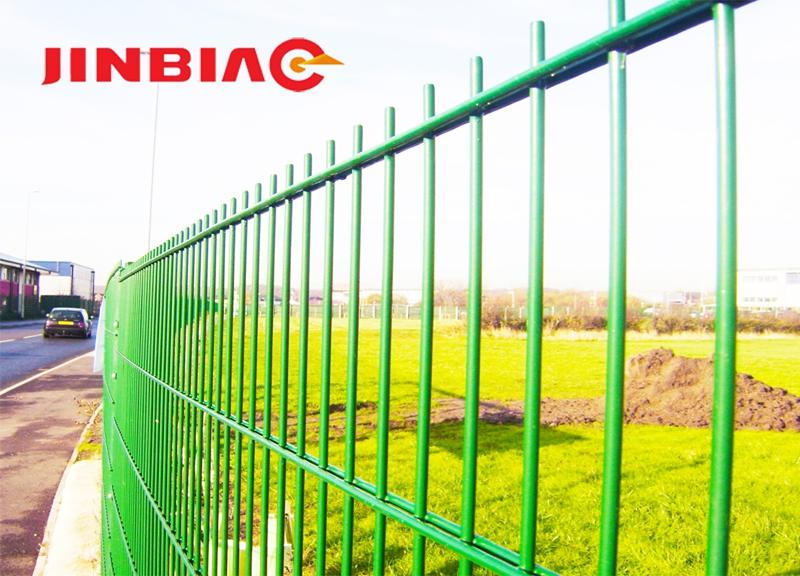

double wire fence 1.jpg


Introduction:
The panel is welded different, with two horizontal wires. It en:able the fence much stronge.

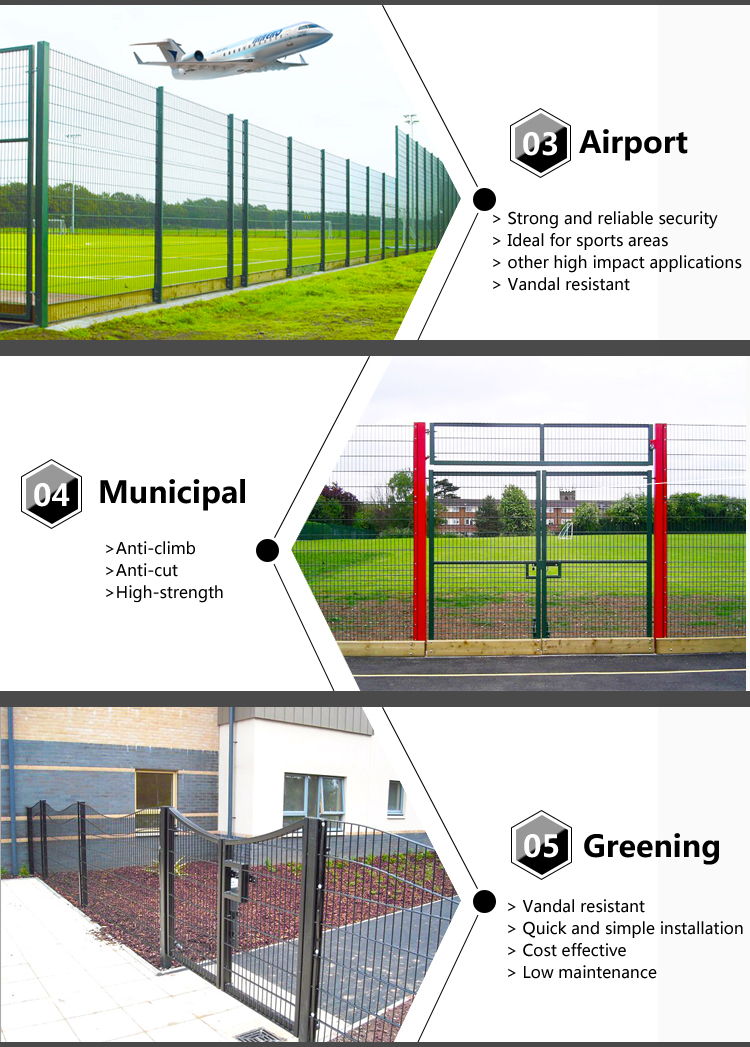

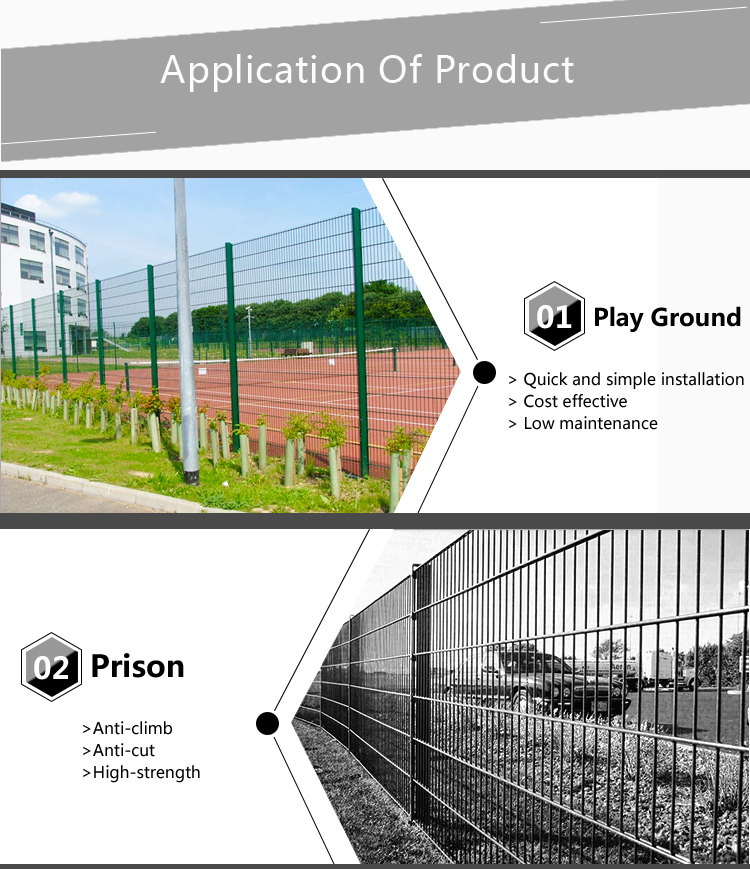

Widely used in highways,railways,airports,bridges,parks,etc.

double wire fence3 .jpgdouble wire fence4 .jpg

Surface Treatment:
Electric Gal.: 40~60g/sq. M.
Hot dipped Gal.: 40~500g/sq. M.
Powders spread coating: 160~240 microns
PVC/PE dipped coating: 600~1000 microns

Common Colors:
Moss green (RAL6005),
Pure white (RAL9010),
Stone grey (RAL7030),
Traffic red (RAL3020),
Traffic yellow (RAL1023), and Traffic blue (RAL5017).
Besides, other RAL color required can be delivered to us.

double wire fence5 .jpg





                                    Related Product

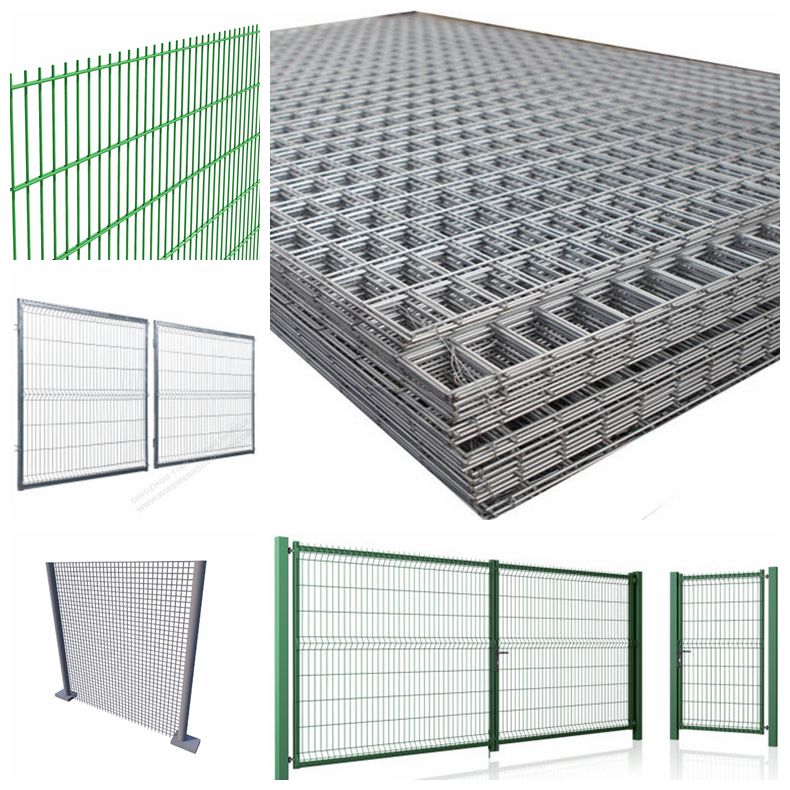

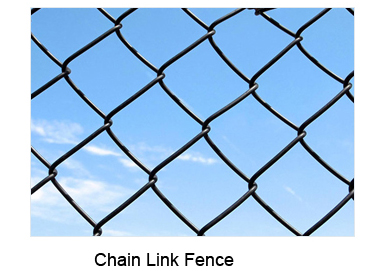

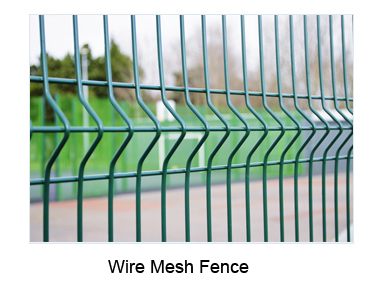

wire mesh22.jpgwire mesh33.jpg

wire mesh44.jpgwire mesh55.jpg

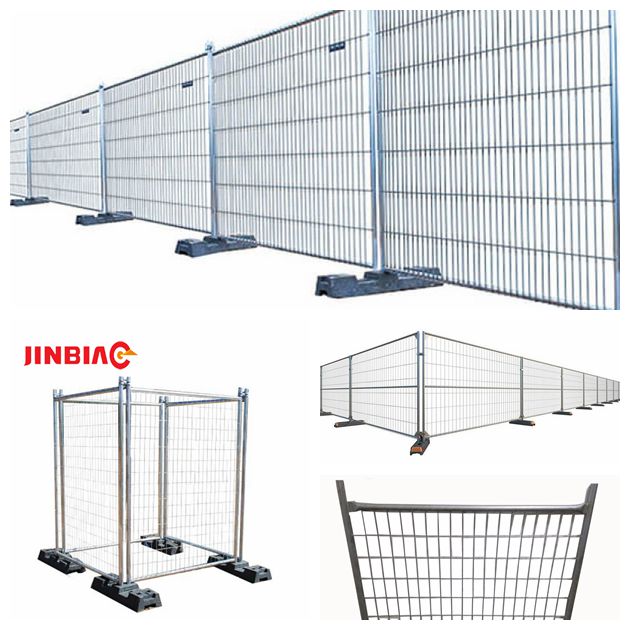

fence (2).jpg

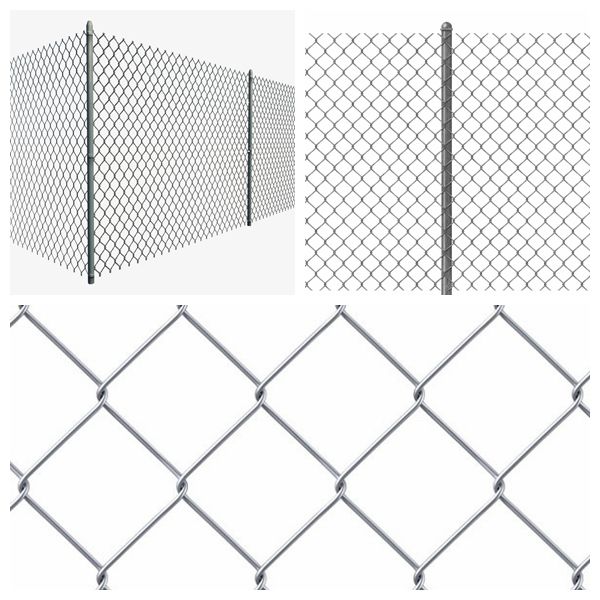

fence (4).jpg

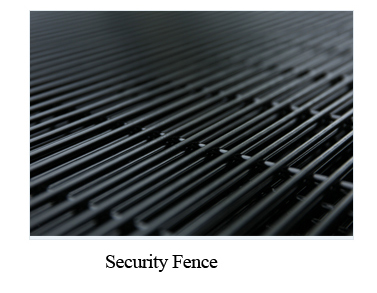

wire mesh10.jpgwire mesh11.jpg

Welcome to Contact Us :

wire mesh.jpg

We are manufacturer.

Welcome you to visit our factory.

Any time,any questions,pls feel free to contact me.
sales manager l Fence manufacturer l Anping County Jinbiao Wire Mesh Fence Co., Ltd.
P.O. Box 053600, Development Zone, South Of Anping County, Hengshui, Hebei, China

                 Name: Coral hu

                 Tel: +86-311-80979540

                 Mobile: +86-13833129670

                 Skype: huyafeng125

FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: It will take about 10-20 days after get the deposit, urgent order can be discussed.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance
