868 and 656 Double Wire Fence: Choosing the Wire Combination

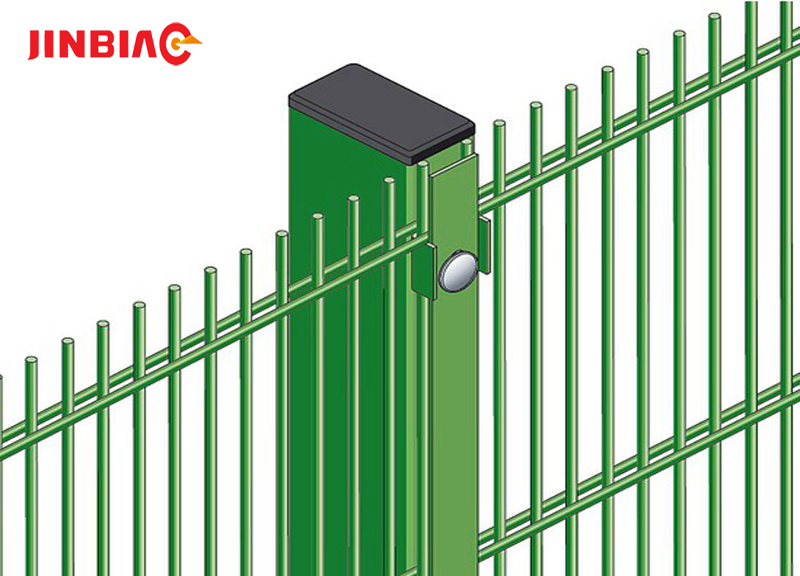

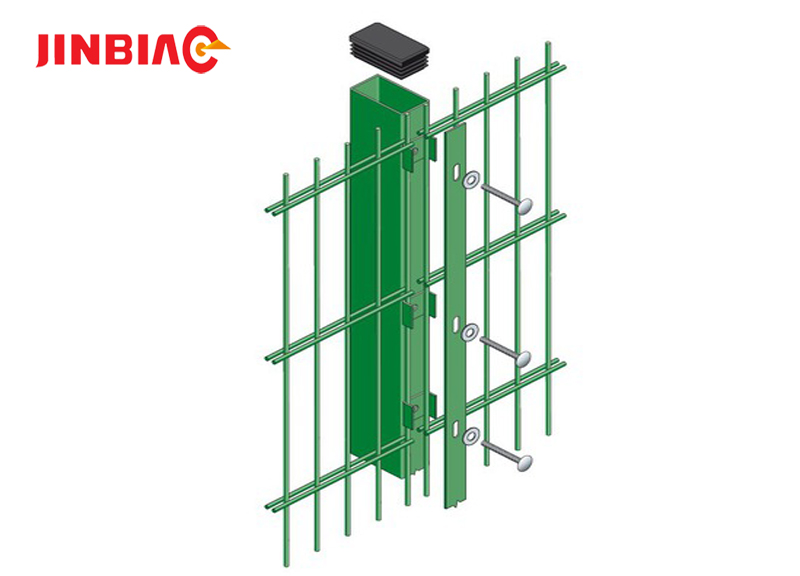

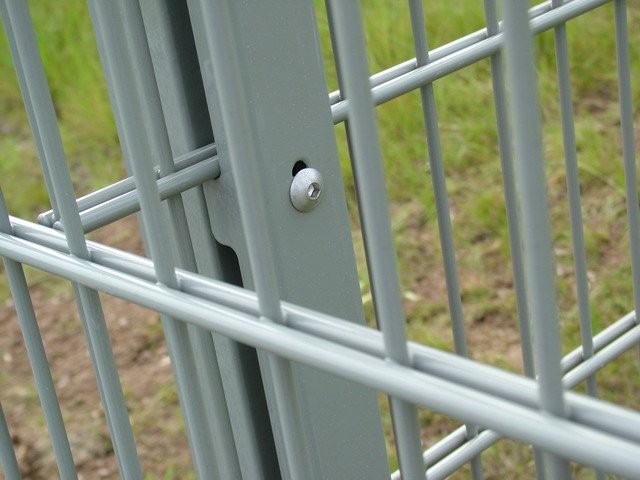

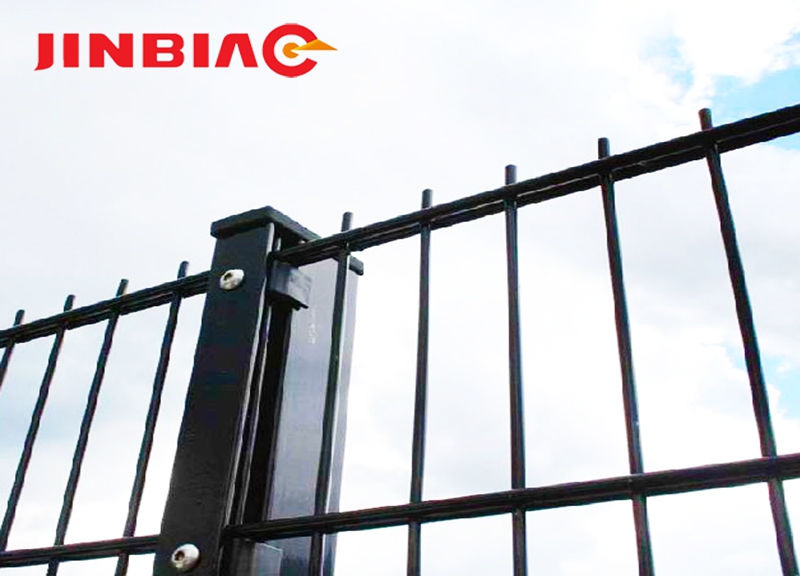

Post cap and twin wire detail on a double wire panel

Three Numbers, One Panel

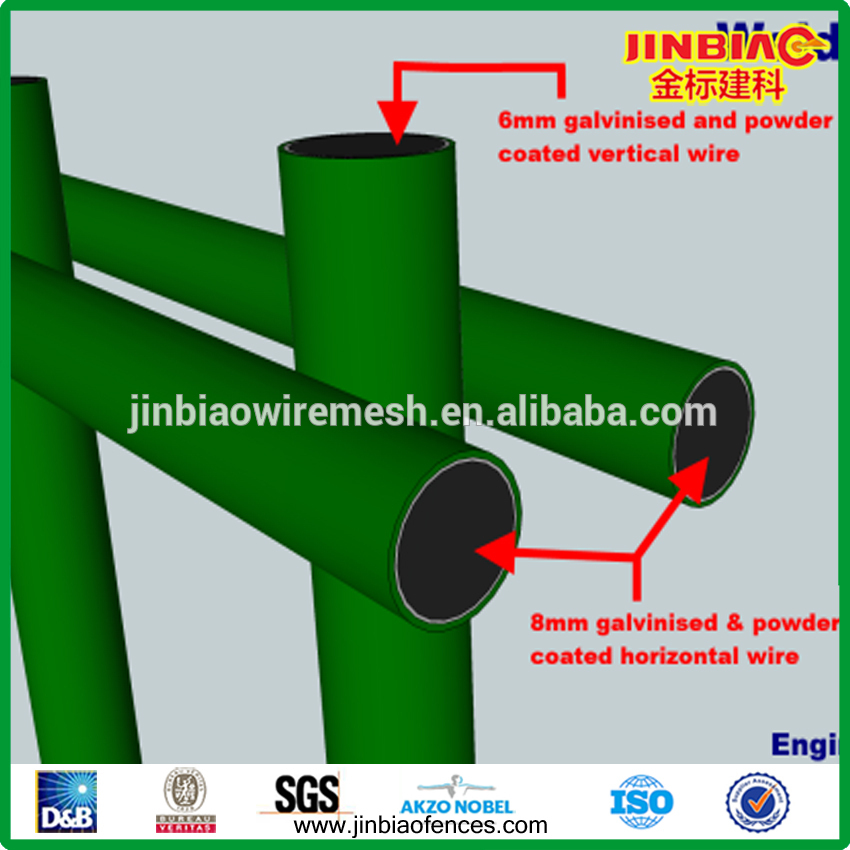

A double wire panel is described by three wire sizes: the paired horizontal wires first, then the single vertical wire between them. 8/6/8 means 8 mm horizontals around a 6 mm vertical. 6/5/6 means 6 mm horizontals around a 5 mm vertical.

Those numbers decide panel weight, stiffness and cost far more than the coating does, so they are the first thing to fix before comparing quotations.

What the Numbers Actually Change

Weight and stiffness together

Moving from 6/5/6 to 8/6/8 raises panel weight by roughly a third for the same aperture and height. Stiffness rises faster than weight, because the paired wire resists bending as a unit.

The practical effect is that 8/6/8 holds a flatter face over a wider post spacing, while 6/5/6 needs closer posts or a shorter panel to look the same.

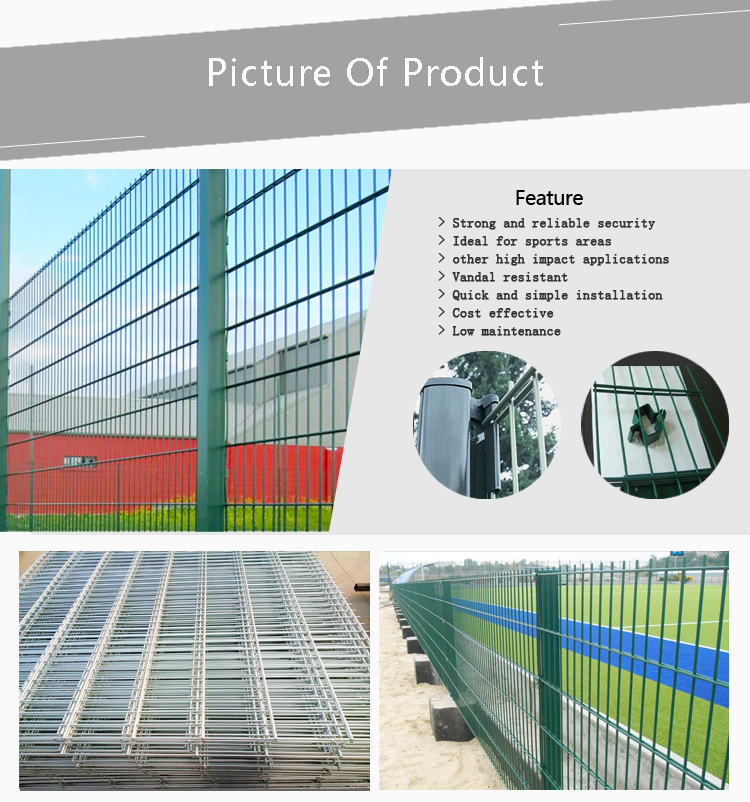

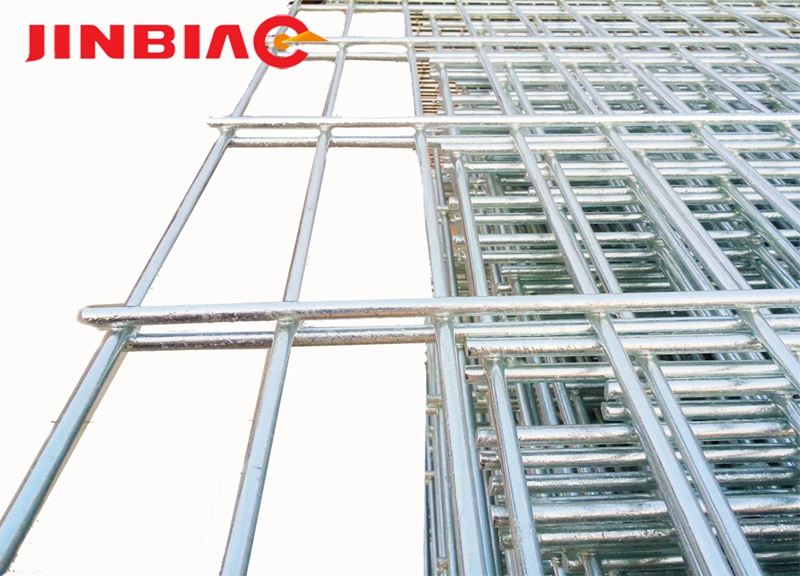

Stacked galvanised double wire panels showing the twin horizontal wires

Where Each Combination Fits

Close view of the welded twin wire grid

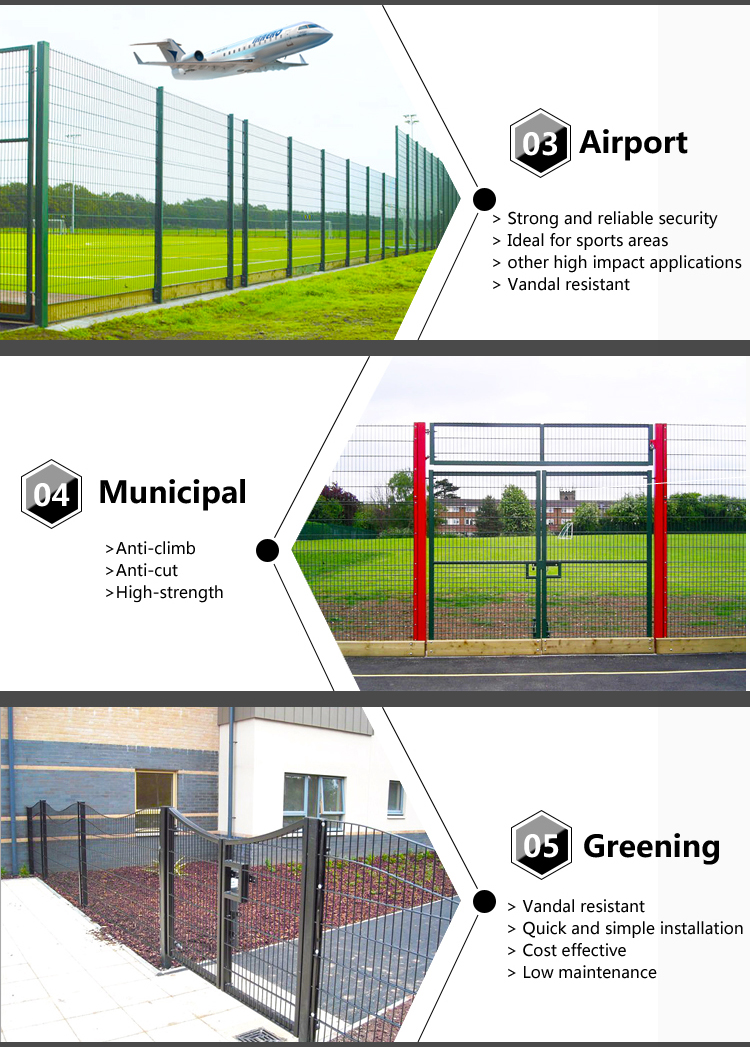

8/6/8 is the usual choice for industrial estates, logistics yards, substations and any boundary where the fence is likely to be leaned on or cut. 6/5/6 suits school perimeters, parks, housing edges and internal divisions where the fence is a boundary rather than a barrier.

On a long run the lighter panel often wins on total cost once post spacing is priced in, so the comparison should be made per metre of finished fence, not per panel.

Aperture and Height Together

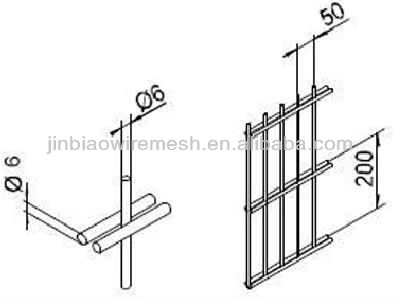

Aperture is usually 50 x 200 mm on a double wire panel. A tighter aperture raises weight without adding much stiffness, so it is chosen for climb resistance rather than strength.

Height and aperture interact: a 2.4 m panel with a 50 x 200 mm aperture is a different climbing proposition from a 1.8 m panel with the same grid. Specify both, not one.

Double wire panels along a sports ground

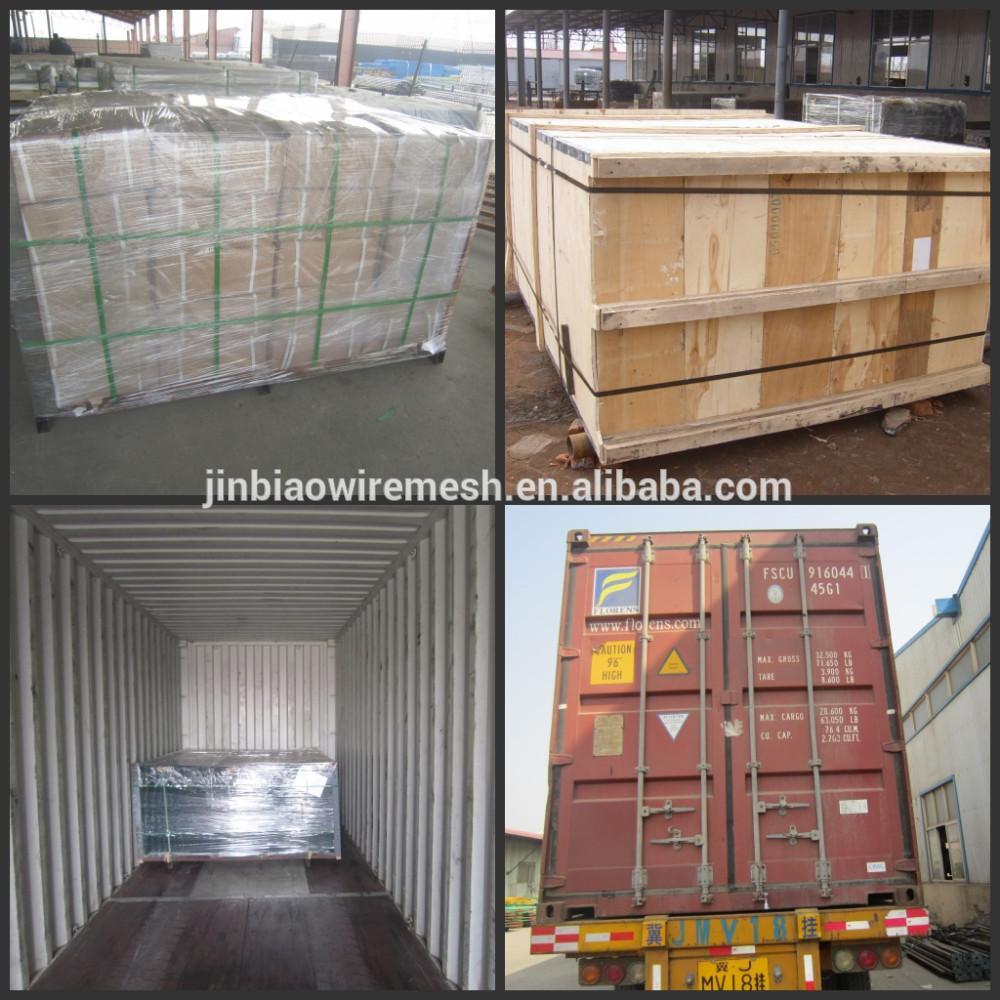

Bundles of double wire panels stacked ready for loading

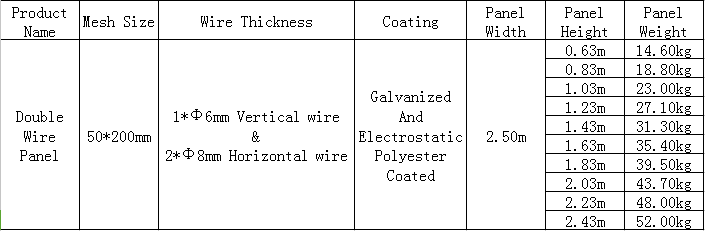

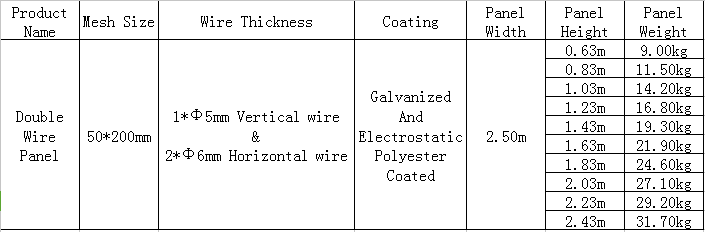

Weighing the Panel

Ask for the calculated panel weight on the quotation. Two suppliers quoting 8/6/8 at the same price with a 15 percent weight difference are not quoting the same panel.

We show wire diameter, aperture, panel size and calculated weight together so the comparison is like for like.

What to Send

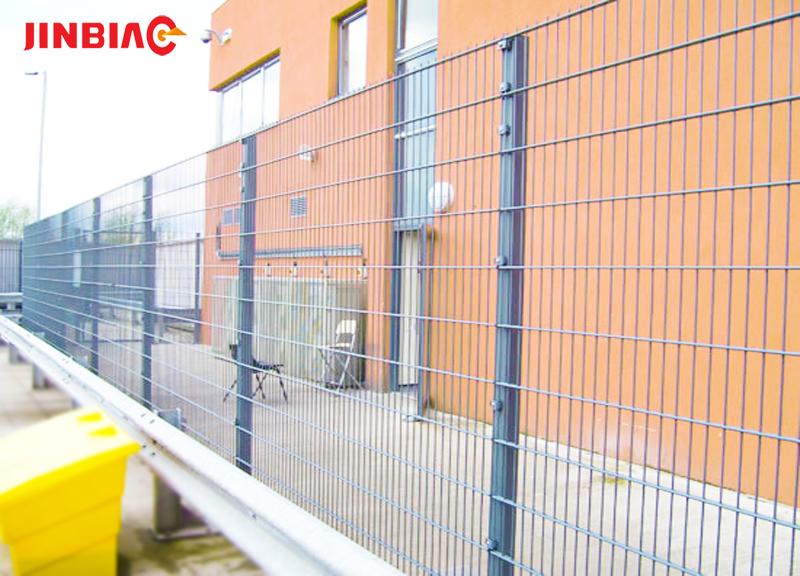

Double wire fence around an industrial building

Tell us the wire combination you are comparing, panel height and width, aperture, coating, quantity and destination. We will quote both combinations side by side so the per metre difference is visible.
