Double Wire Metal Mesh/ Double Wire Mesh Fence/ Welded Doubel Wire Mesh--jinbiao

    Material: low carbon steel wire and stainless steel wire Q195,Q235.

    Wire Diameter: 2.0mm--4.0mm ( before pvc coated ); 2.5mm--5.5mm ( after pvc coated )

    Mesh Opening: 50x100mm,50x200mm,75x150mm,100x200mm ( others on request )

    Mesh Size: Length(2000mm, 2500mm as common usual); Height(640mm-2440mm)

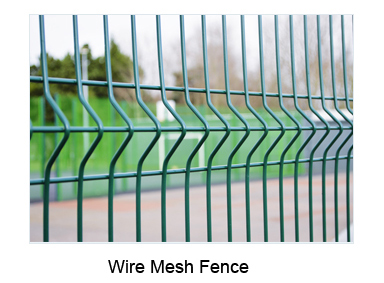

Welded Curved Wire Mesh Fence



Material: low carbon steel wire and stainless steel wire Q195,Q235.

Wire Diameter: 2.0mm--4.0mm ( before pvc coated ); 2.5mm--5.5mm ( after pvc coated )

Mesh Opening: 50x100mm,50x200mm,75x150mm,100x200mm ( others on request )

Mesh Size: Length(2000mm, 2500mm as common usual); Height(640mm-2440mm)

Surface Treatment:

PVC coated/painting

Electro galvanized or hot-dip galvanized after welding of steel wire;

Welding of steel wire after PVC coated/painting

Electro galvanized or hot-dip galvanized;

Electro galvanized or hot-dip galvanized after welding of steel wire and then PVC coated.

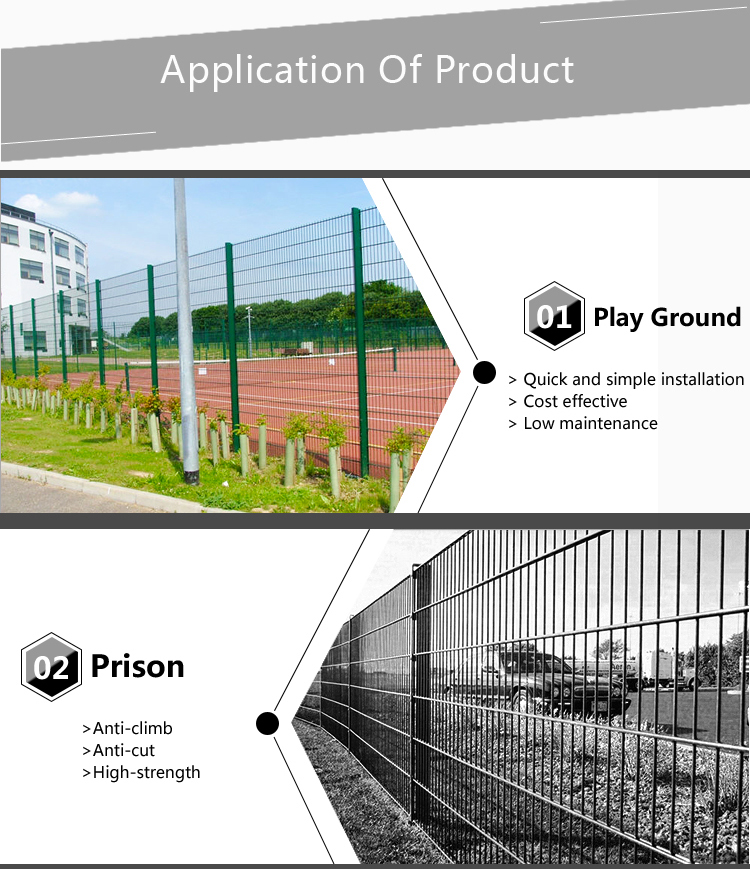

Application:
Commercial grounds (Corporation, hotel, supermarket);
Private grounds (Courtyard, Villadom);
Public grounds (Park, zoo, train or bus station, lawn);
Road and transit (Highway, railway or road city transit);
Used as fencing, decoration or protection for various facilities in industry, agriculture, infrastructure, transport, etc.

Mesh Size : 50mm x 200mm(other mesh size on request)

Height

Length

Curve

Weight

0.63m

2.00m

2

3.76kg

0.83m

2.00m

2

4.85kg

1.03m

2.00m

2

5.95kg

1.23m

2.00m

2

7.05kg

1.43m

2.00m

2

8.15kg

1.63m

2.50m

3

11.67kg

1.83m

2.50m

3

13.04kg

2.03m

2.50m

4

14.51kg

2.23m

2.50m

4

15.88kg

2.43m

2.50m

4

17.18kg

Surface Treatment: Electric galvanized and PVC coated, hot dipped galvanized and PVC coated, PVC coated without galvanized.



 ]PP6I0JV~J%LFYG304)MT[P

Material:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the construction.

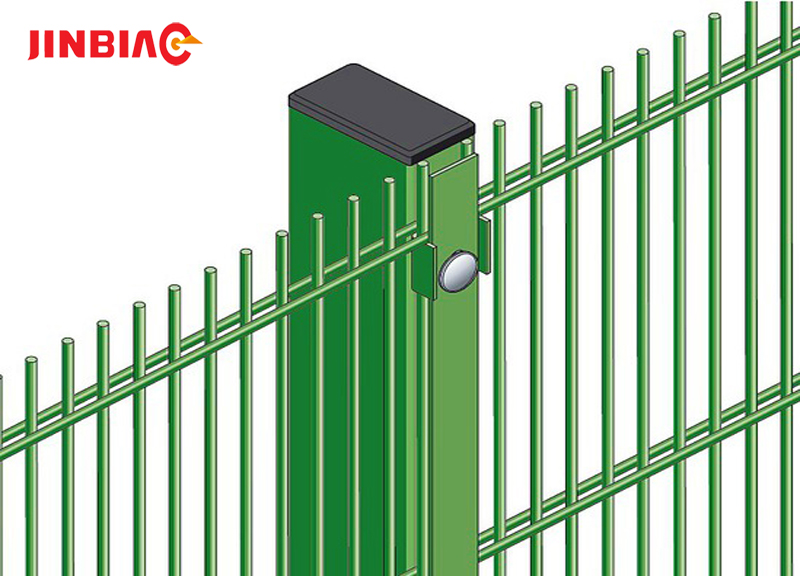

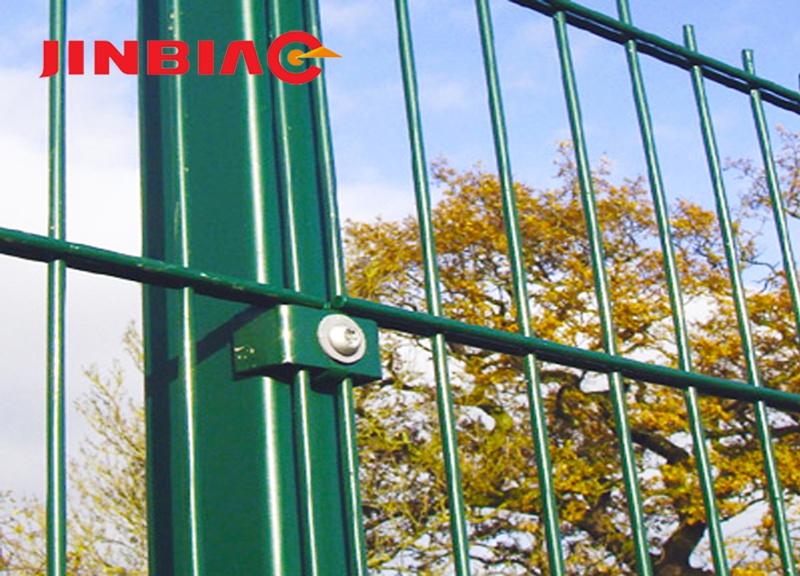

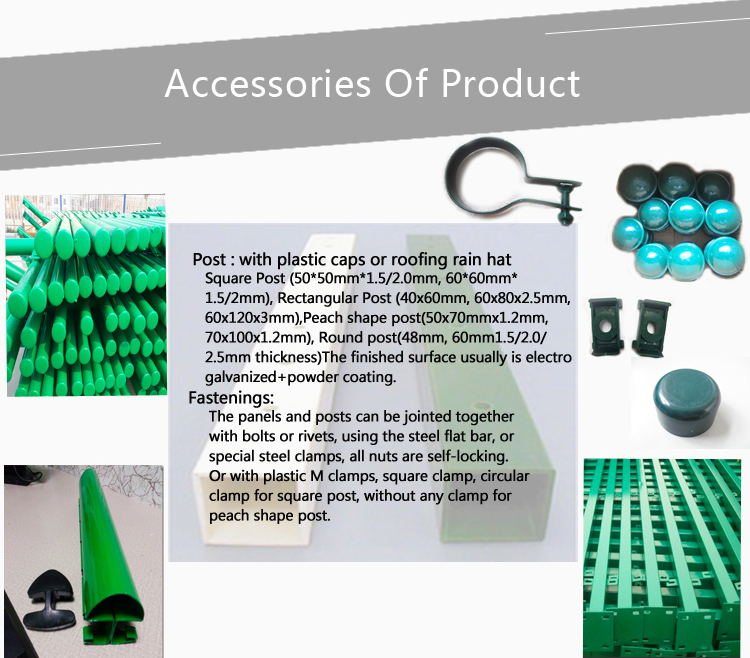

Post:
This System usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2. 5mm, 120*60*3mm) With the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.

double wire fence .jpg



Double Wire Fence

Height
x Width (Panel)
mm

Mesh Size
mm.

Wire Diameter

Post of Height
mm

Wire Dia
mm

Wire Dia
mm

Wire Dia
mm

630*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

1100

830*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

1300

1030*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

1500

1230*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

1700

1430*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

1900

1630*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

2100

1830*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

2400

2030*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

2600

2230*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

2800

2430*2500

50*200

8*2 + 6

6*2 + 5

6*2 + 4

3000





double wire fence 1.jpg

583695741_928

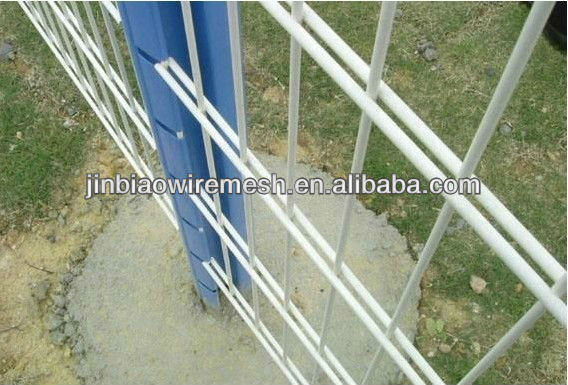

Introduction:

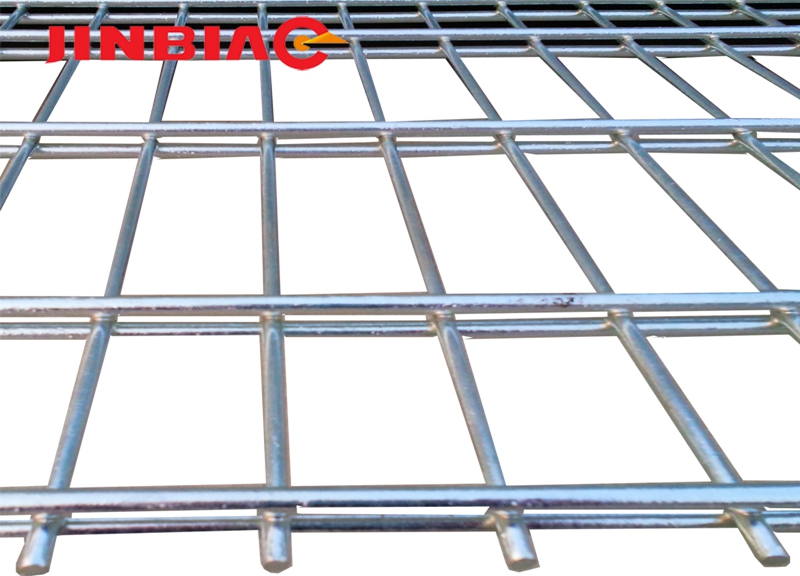

The panel is welded different, with two horizontal wires. It en:able the fence much stronge.

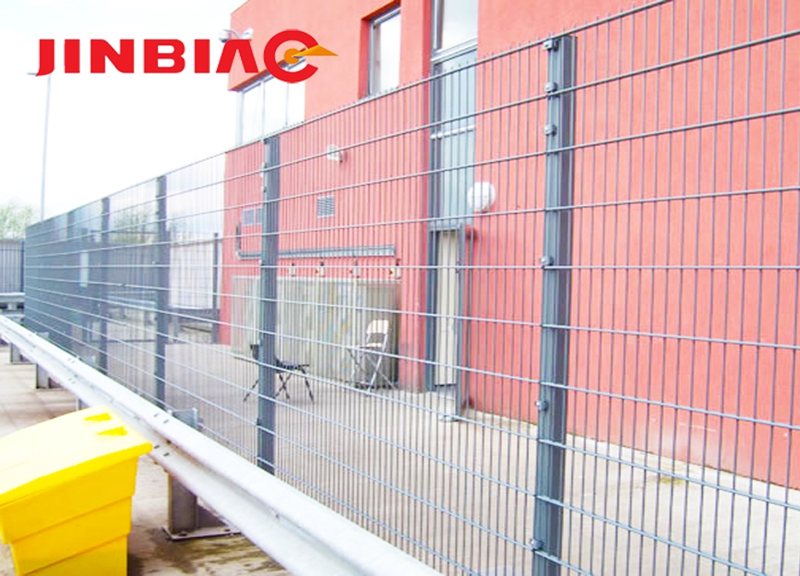

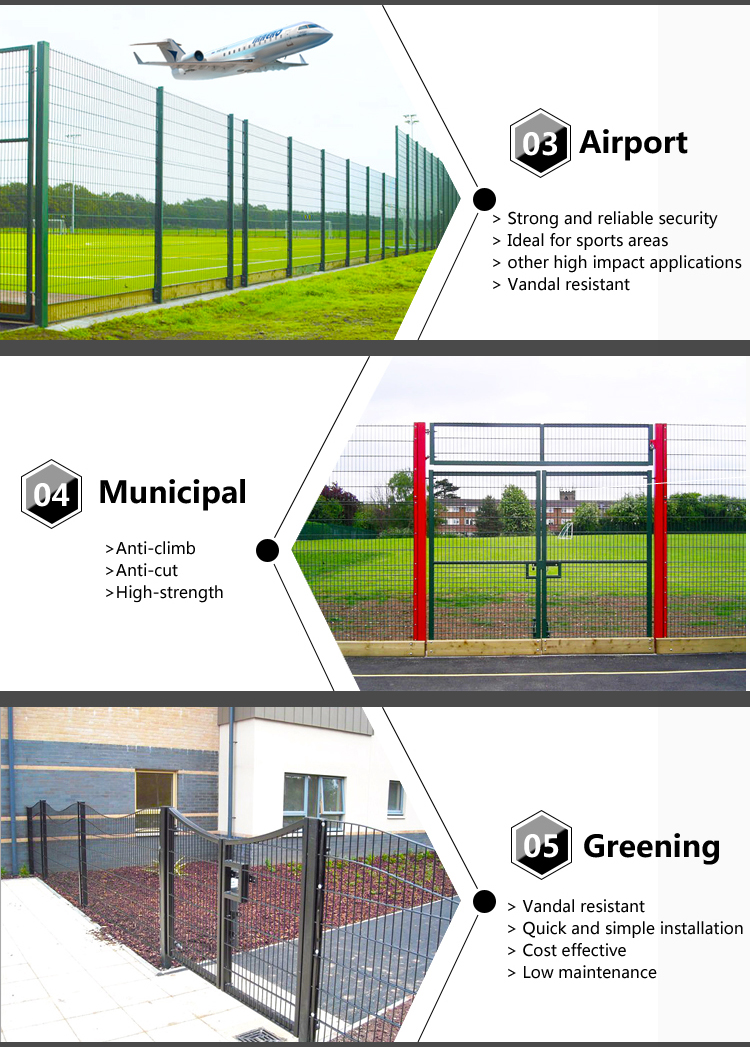

Widely used in highways,railways,airports,bridges,parks,etc.

double wire fence3 .jpgdouble wire fence4 .jpg

Surface Treatment:
Electric Gal.: 40~60g/sq. M.
Hot dipped Gal.: 40~500g/sq. M.
Powders spread coating: 160~240 microns
PVC/PE dipped coating: 600~1000 microns

Common Colors:
Moss green (RAL6005),
Pure white (RAL9010),
Stone grey (RAL7030),
Traffic red (RAL3020),
Traffic yellow (RAL1023), and Traffic blue (RAL5017).
Besides, other RAL color required can be delivered to us.

double wire fence2 .jpg
