Green Powder Coated Double Wire Fence

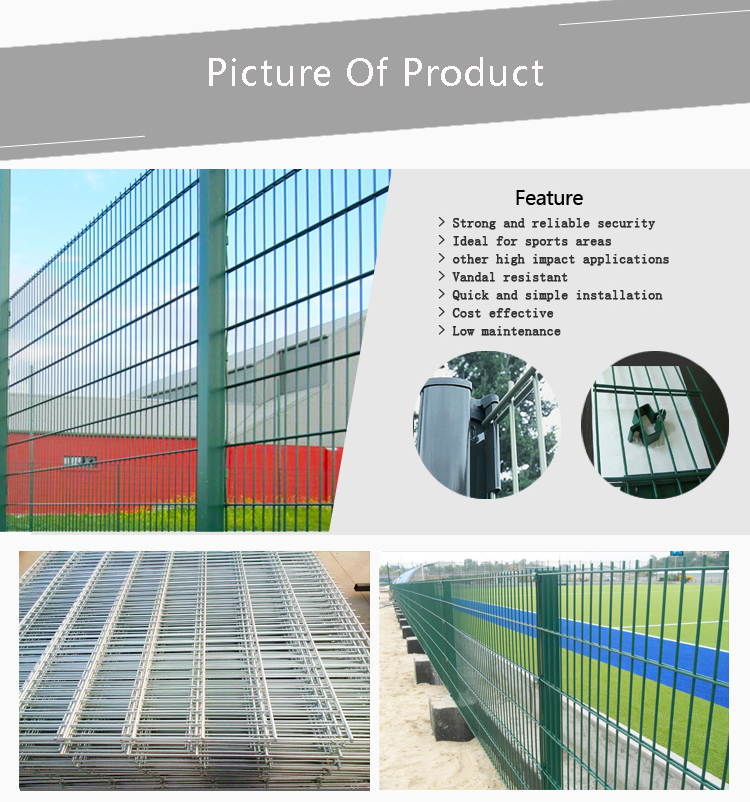

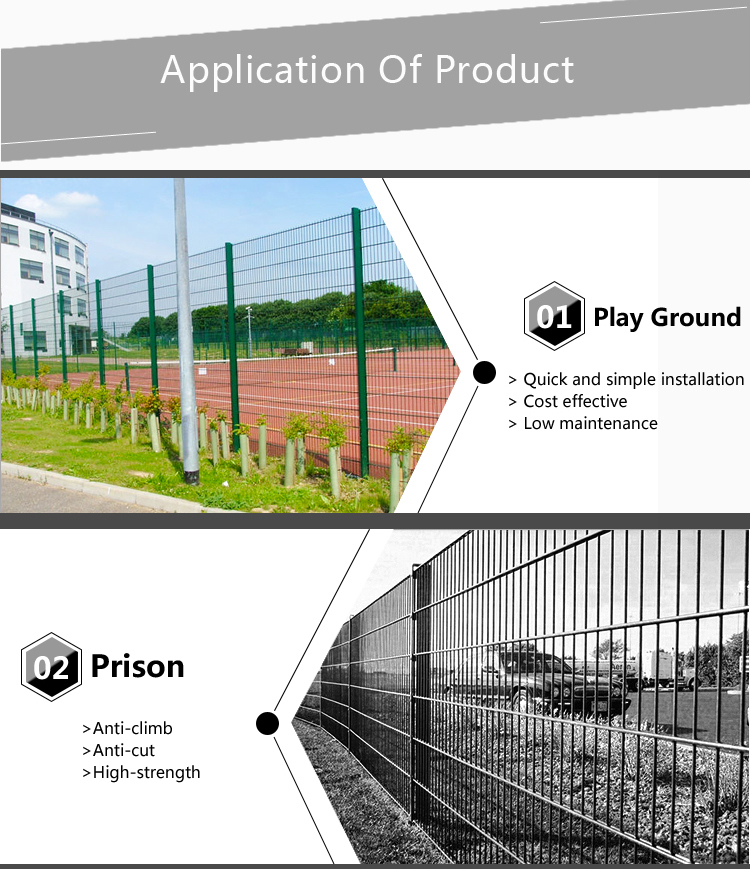

Double wire panels along a sports ground

Why Green

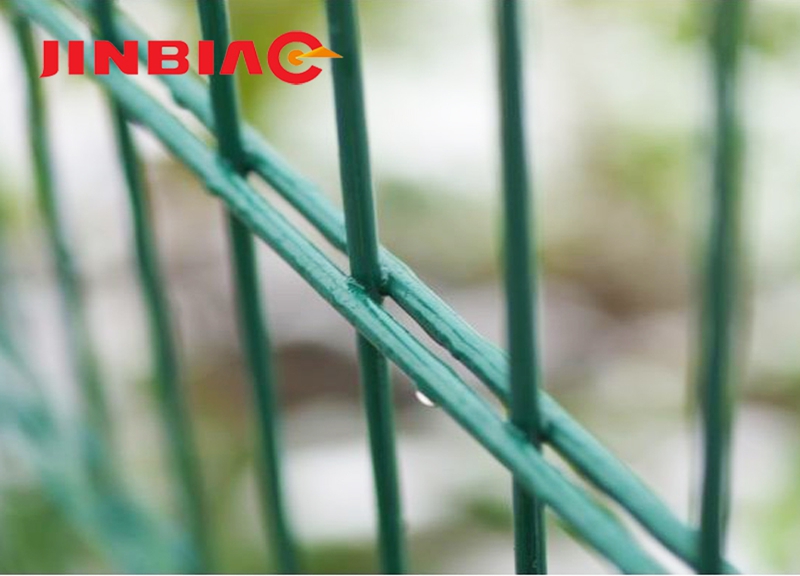

Green is the default colour for a boundary that has to sit in a view rather than stand out from it. On a double wire panel the coating has a second job: the paired horizontal wires create a crevice where water collects, and a continuous film over that crevice is what keeps the panel from rusting from the inside.

Colour is the visible part of the specification; the galvanising underneath is the part that decides how long it lasts.

Coating Over Galvanising

Two layers, not one

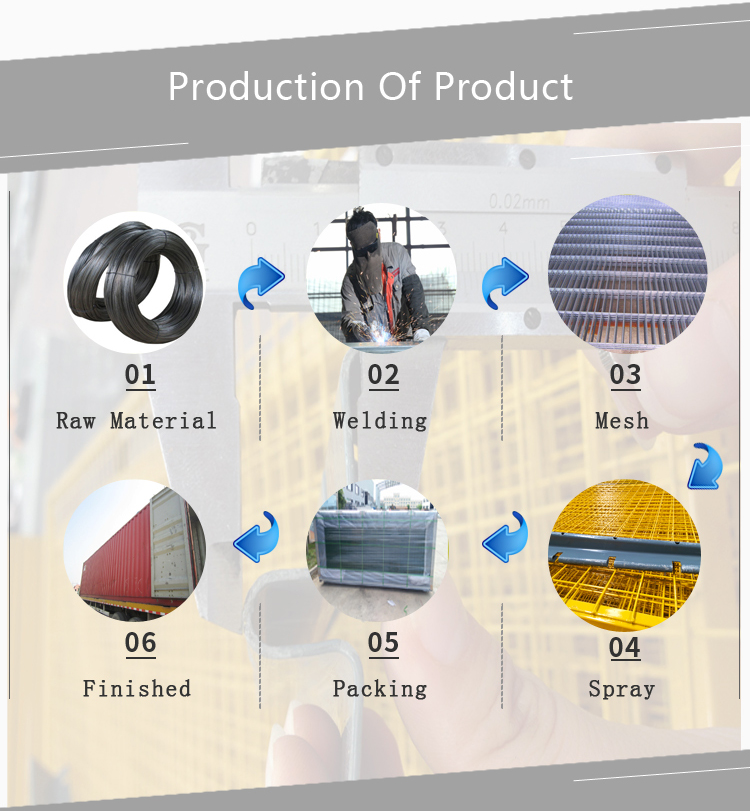

The durable build is hot dip galvanised wire, welded, then powder coated. The zinc does the corrosion work; the powder gives colour and a second barrier.

A panel powder coated straight onto untreated wire looks identical on delivery and fails differently: the first scratch through the film becomes a rust line, because there is no zinc to stop it spreading sideways.

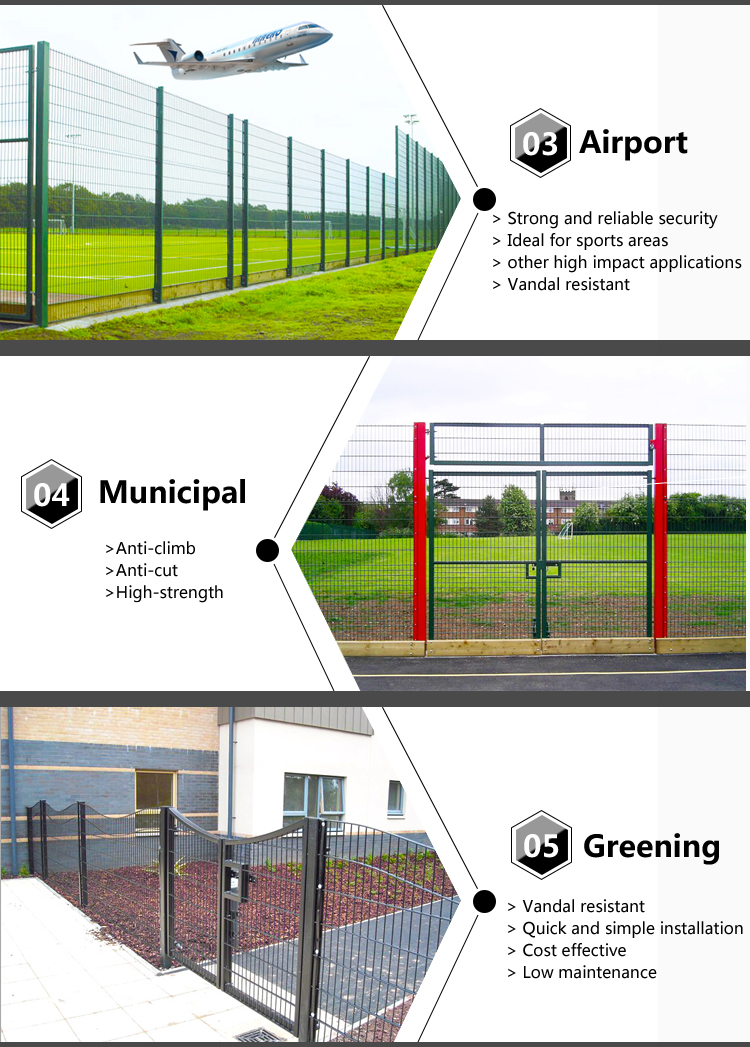

Double wire run beside an access road

Matching an Existing Fence

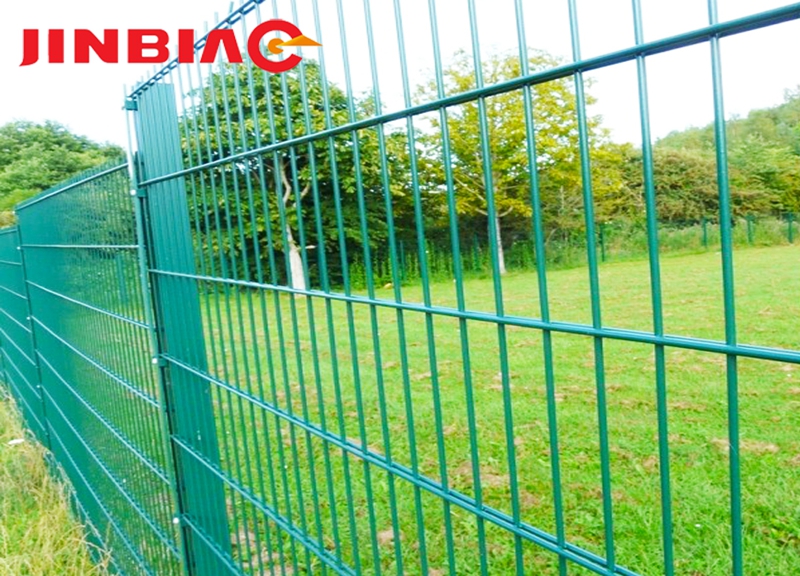

Green double wire fence along a playing field

Where a new run continues an existing fence, send a photograph in daylight and a RAL reference if one is known. Green covers a wide range from RAL 6005 to 6020, and two greens that look the same on a screen can sit badly side by side.

We coat to a RAL reference where one is given, otherwise to our standard green, and we say which one is being used on the quotation.

Where the Coating Fails First

The first failures on a green panel are at cut ends, at weld crossings and where a fixing has been tightened through the film. Those are the points where the zinc is exposed to air and where a touch-up pen is worth keeping on site.

Panels cut on site should be treated at the cut with a zinc-rich paint before the post is set, not after the rust appears.

Green double wire panels following a road boundary
Double wire panel on a display base

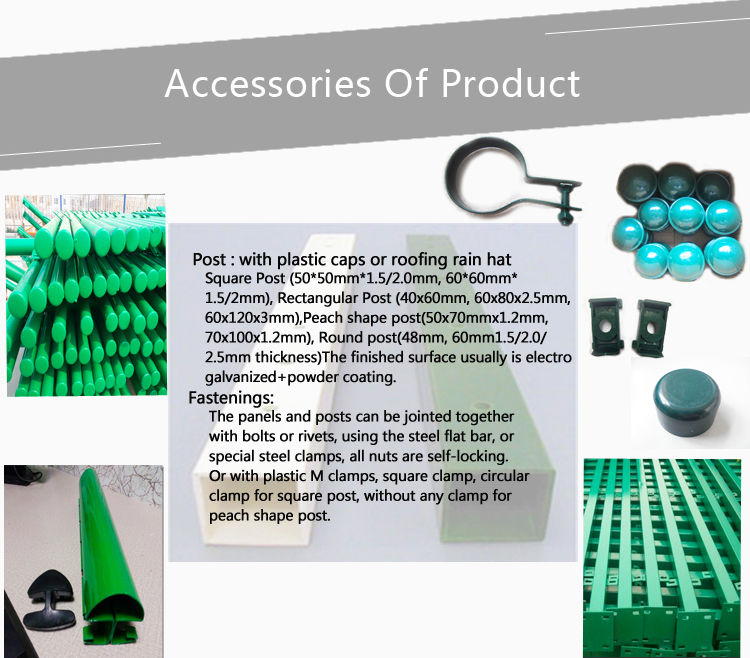

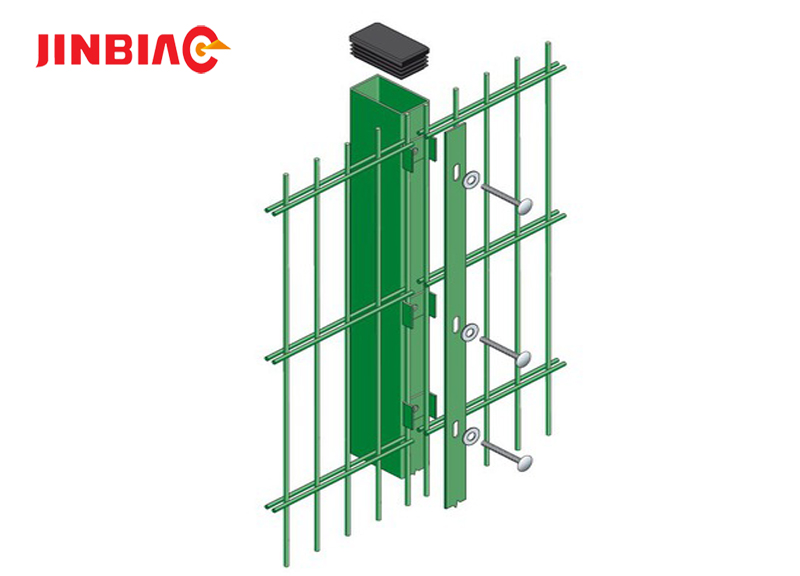

Fittings in the Same Finish

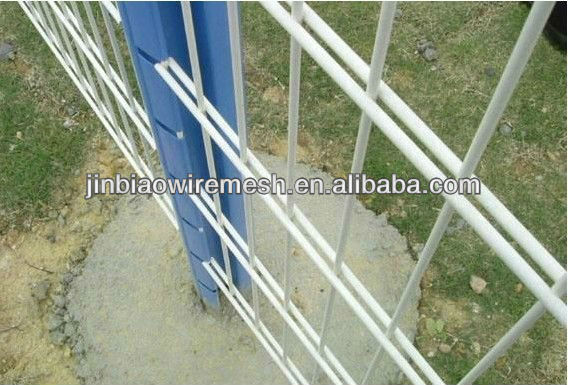

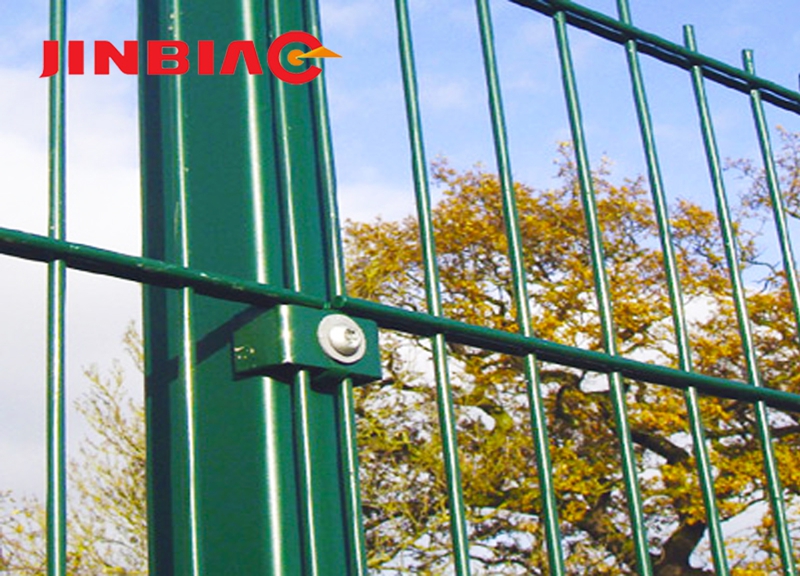

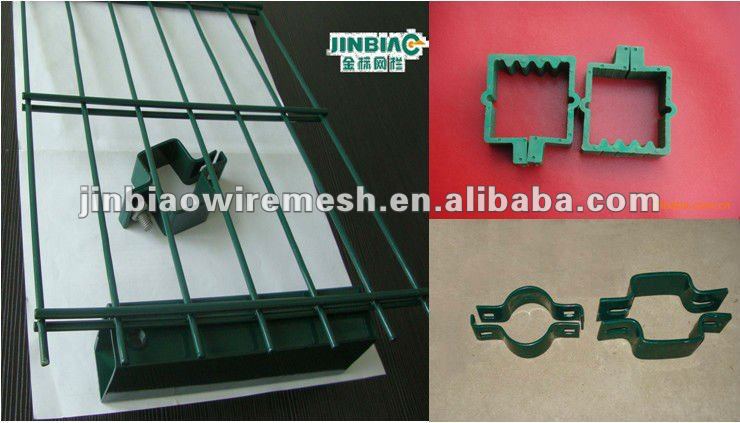

Posts, clamps, bolts and caps are supplied in the same green so the run does not show a line of bright fasteners. Where a galvanised fitting is used against a coated panel, the joint becomes the first place to discolour.

Gate hardware follows the same rule: hinges and latches in the panel colour, not in self-colour steel.

What to Send

Double wire panel on a white background

Send run length, panel height and width, wire combination, RAL reference or existing fence photograph, post section, gate widths and the port of discharge.
