Cooling Tower Noise Barrier Enclosure

A cooling tower is one of the harder noise sources to enclose, because the thing making the noise is also the thing moving a very large volume of air. Any barrier that ignores that second fact will quieten the tower and then overheat it. The design works when you treat the acoustic requirement and the airflow requirement as one problem instead of two.

Acoustic enclosure built around rooftop cooling towers, with louvred roof panels and absorptive side panels beside a residential building

Where the noise actually leaves a cooling tower

A cooling tower radiates from three places, and they do not radiate equally.

The fan discharge at the top

The fan discharge at the top is usually the dominant path. The blades pass the motor supports many times a second, which produces a tone at the blade passing frequency and its harmonics, and the open discharge lets that tone out upward and outward with very little obstruction.

The air intake louvres at the base

The air intake louvres at the base are the second path. Water splash and falling film inside the fill generate broadband noise that escapes through the inlet.

The casing

The casing is the third and usually the weakest. It radiates some low frequency energy through the panels, but it is rarely the limiting path unless the tower is directly against a façade.

That order matters, because it tells you where the money should go. A wall built up the side of a tower while the fan discharge stays open has closed the smallest of the three paths.

Why the enclosure has to be a louvre, not a wall

A cooling tower needs a continuous supply of air and a clear path to discharge it. Restrict either and the tower loses approach, the leaving water temperature rises, and the plant either fails its duty or runs longer and louder than before.

The practical consequence is that the enclosure is mostly louvre. Solid absorptive panels close the sides and the casing faces, while the intake and discharge are fitted with acoustic louvres or splitter banks whose free area is set by the airflow the tower needs. The acoustic duty of that louvre is then whatever is left after the free area requirement is met, which is why a louvre enquiry has to start with the air volume, not with a decibel target.

On rooftop installations the discharge louvre is usually turned horizontally or fitted with a deflector, so the sound is directed away from the nearest façade rather than straight at it.

Absorption on the inside face, and why it is not optional

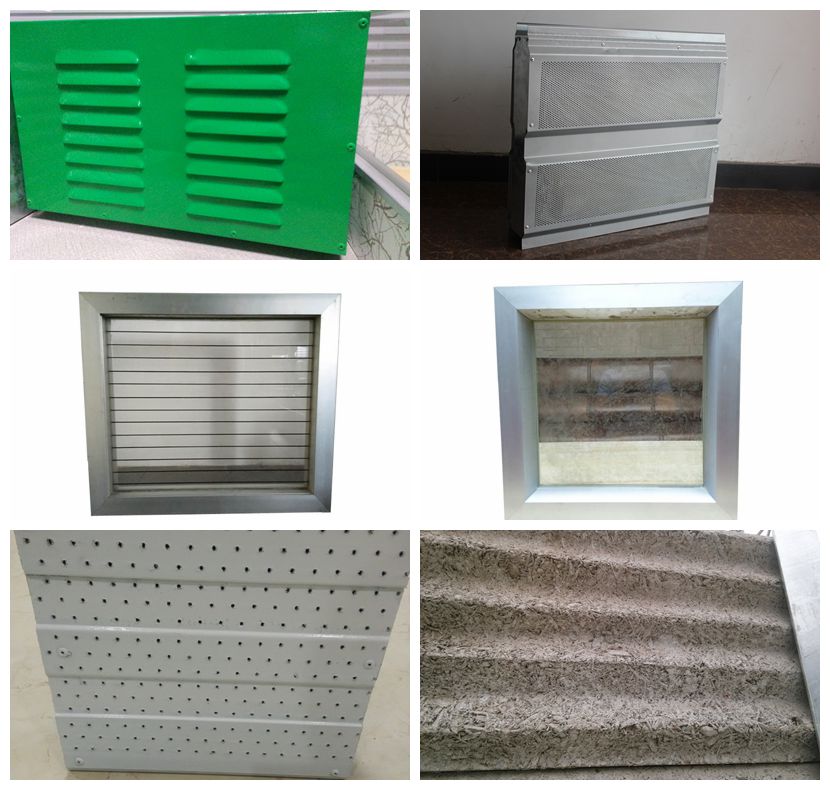

Inside an enclosure, a hard reflective lining lets sound bounce between the panels and the tower casing, so the level at the louvre opening ends up higher than the panel alone would suggest. A perforated absorptive cassette on the inside face, with protective fabric and mineral infill behind it, breaks that build-up.

The same logic applies to the louvre splitters: their surfaces are absorptive so the air path itself attenuates rather than reflects. A louvre built only for airflow, with plain galvanised blades, behaves acoustically like a hole in the wall.

What has to stay accessible

  • The fan deck. Motors, gearboxes and belts need to be reachable for service, which means access doors or removable panels at the deck level, not a sealed box.

  • The fill and the basin. Inspection and cleaning access at the base, with the enclosure stopping short of the basin edge or fitted with a removable section.

  • The louvre faces. Intake screens collect debris and need to be cleanable; a louvre that cannot be reached becomes a blocked louvre within a season.

  • Pipework and valves. Often forgotten at design stage, then discovered when the enclosure frame is already welded.

Materials for a wet, hot, outdoor environment

A cooling tower enclosure lives in the worst conditions on a building: continuous moisture, drift, heat and in coastal sites salt. The practical specification is hot dip galvanised steel for the frame, powder coated galvanised cassettes for the visible faces, stainless or coated fixings, and infill that does not settle or absorb water. Aluminium is used where weight matters on a roof, with the coating chosen for the exposure rather than for the colour.

What this does not solve

An enclosure around the tower does not remove noise from the plant room fans, the pumps, or the pipework running across the roof. On a site where the cooling tower is only one of several sources, enclosing it can reveal the next one. That is why the useful starting point is a measurement that identifies which source dominates at the nearest receiver, not a quotation for the tower alone.

We manufacture and supply these enclosures and their louvres. For projects outside China the scope is supply only, and installation is carried out by the client's contractor against our drawings.

What to send for a quotation

  • Tower model, or its airflow in cubic metres per second and its leaving water temperature.

  • Plan showing the tower position and the distance and height of the nearest sensitive receiver.

  • The limit to be met, and whether it is measured at the boundary or at a façade.

  • Whether the installation is rooftop or at grade, and the structural allowance available.

  • Access requirements for maintenance, and any restriction on enclosure height.
