Welded 358 Mesh Panels for Airport Perimeters
Why the Panel Is Welded
A perimeter panel has one job that a general boundary fence does not: it has to be slow to defeat. That is why airport runs are built from welded 358 mesh rather than woven chain link.
A welded intersection is a fixed point. Force applied to one bay of a woven mesh is shared through the weave and can be worked loose over a season; on a welded panel the same force meets a rigid grid.
Wire and Aperture
The standard pattern is a 76.2 mm by 12.7 mm aperture on 4 mm wires, giving roughly 1.2 kg per square metre of mesh before coating.
A heavier wire is available where the run is exposed or where the brief calls for it, but weight is not free: a heavier panel needs a heavier post and more fixing, so the saving in wire is usually given back in steel.
Panels, posts, topping and gates are quoted against the run and the brief, so the system is agreed before the steel is cut.
Panel Size and Post Spacing
Panels are normally 2.5 m or 3 m wide and 2 m to 3 m high. Width and post spacing are the same number: a 3 m panel on 2.5 m centres wastes mesh and steel.
Height drives the post section. Above about 2.4 m the panel catches more wind than a light post will hold, and the fixing has to carry the topping as well.
Coating for Coastal Airfields
Airfields are often flat, open and close to water, which is the worst combination for a steel fence. Standard galvanising is adequate inland; within a few kilometres of salt water the specification usually moves to a heavier zinc or a zinc plus powder coat.
The cut ends matter as much as the faces. Every cut wire is a bare edge, and on a coastal site those edges are where the first rust line appears.
Fixings Decide the Life

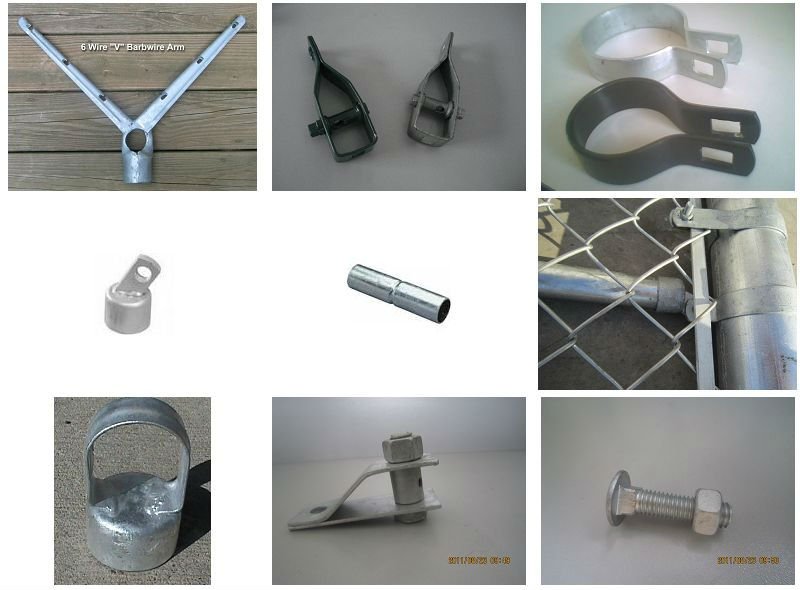

Panels are fixed to posts with through bolts or with steel clips, and the choice changes how the run behaves. A through bolt clamps the panel to the post face; a clip holds it from the side and is faster to fit.
Whichever is used, the fixing is the only place the panel and the post touch, so it is the place that wears. Stainless fixings on a coastal site cost little against the cost of replacing them in ten years.
