Airport Security Fence System: Panels, Posts and Topping

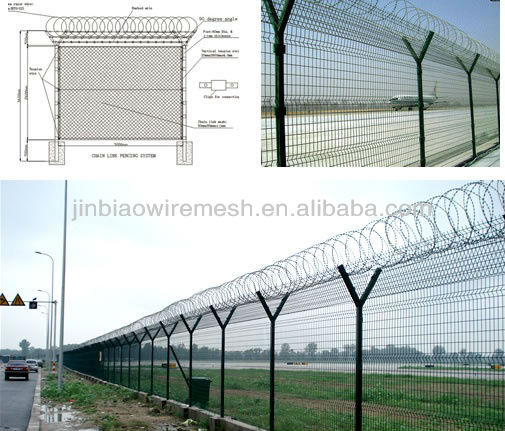

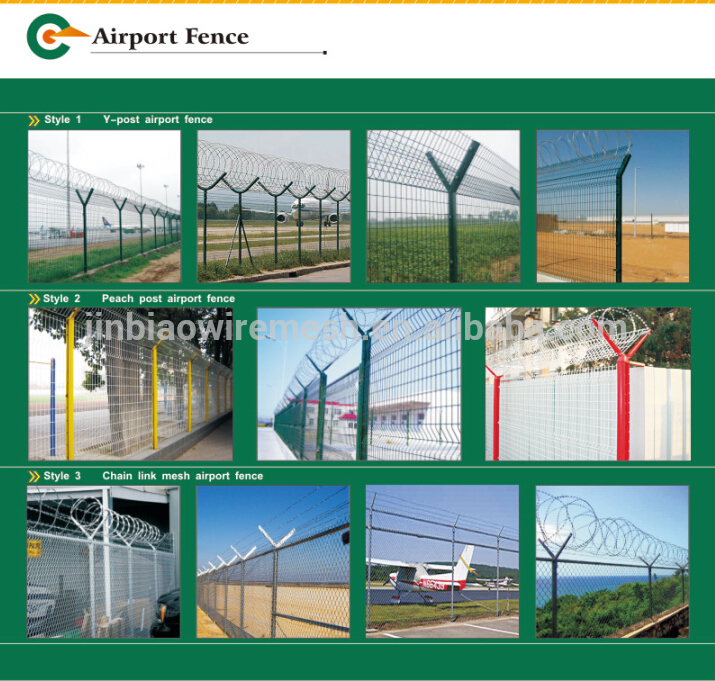

Airport perimeter fence run with razor coil on Y posts

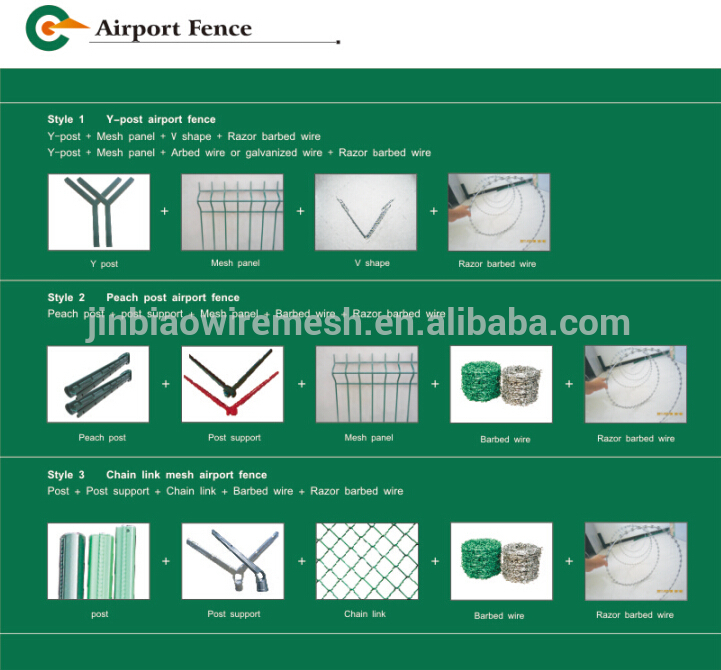

One System, Three Parts

An airport boundary is not bought as a panel. It is bought as a system: mesh, post and topping, each doing a different job, and the run only works when the three are specified together.

The panel stops the body. The post holds the panel against wind and against climbing load. The topping removes the handhold. Change one without the others and the weak point simply moves.

The Panel Is the Wall

Airport panels are welded, not woven. The 358 mesh pattern, a 76.2 mm by 12.7 mm aperture, is small enough that a boot cannot find a toehold and a hand cannot pass through, and the 4 mm horizontal and vertical wires are welded at every intersection.

Welding is what makes the aperture hold its shape. A woven mesh of the same opening can be worked open; a welded one cannot, short of cutting it, and cutting takes time and noise.

Panels, posts, topping and gates are quoted against the run and the brief, so the system is agreed before the steel is cut.

Dark coated 358 panels with a spiked topping

The Post Carries the Topping

Airport boundary fence with a terminal building beyond

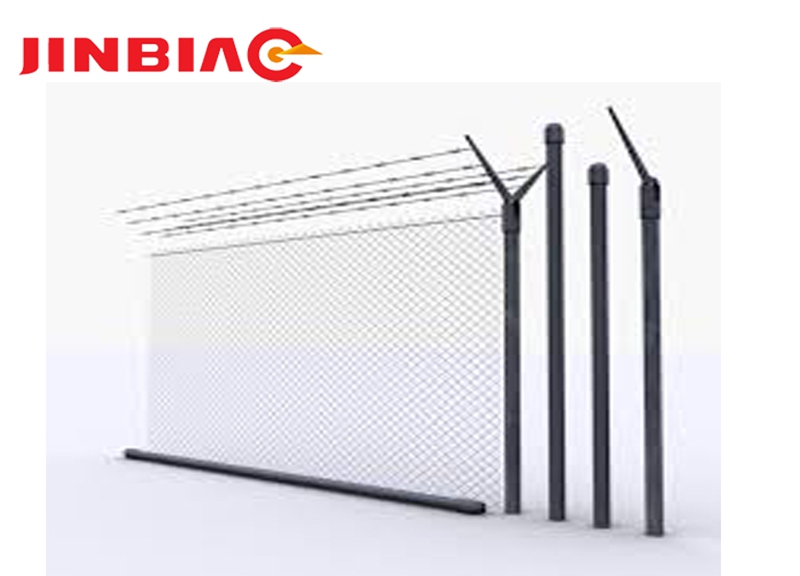

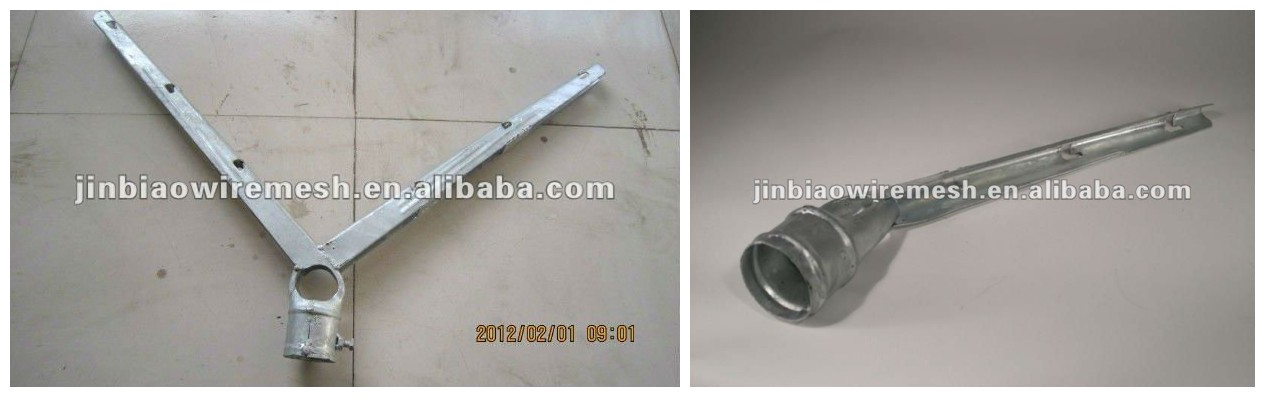

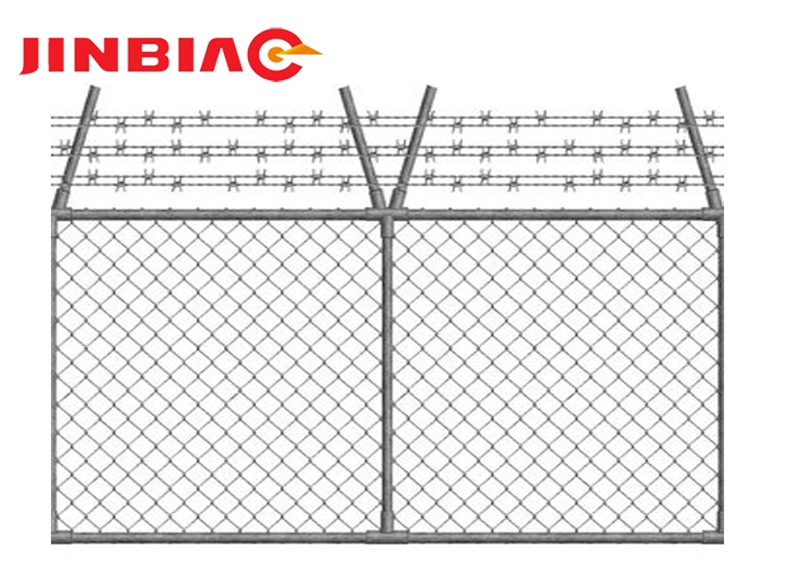

Airport posts are usually cranked or Y shaped. The topping is carried on arms that hold it forward of the panel face, so the coil cannot be pressed down onto the top wire and used as a step.

Post spacing follows the panel and the wind load, not the other way round. A 3 m panel on 3 m centres is normal on a sheltered site; on an exposed apron the same panel goes onto shorter centres or a heavier post section.

Topping: Coil or Barbed

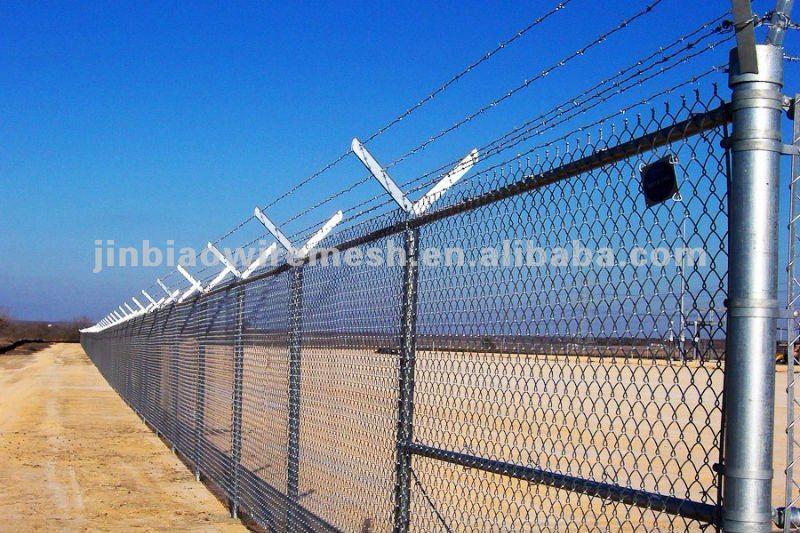

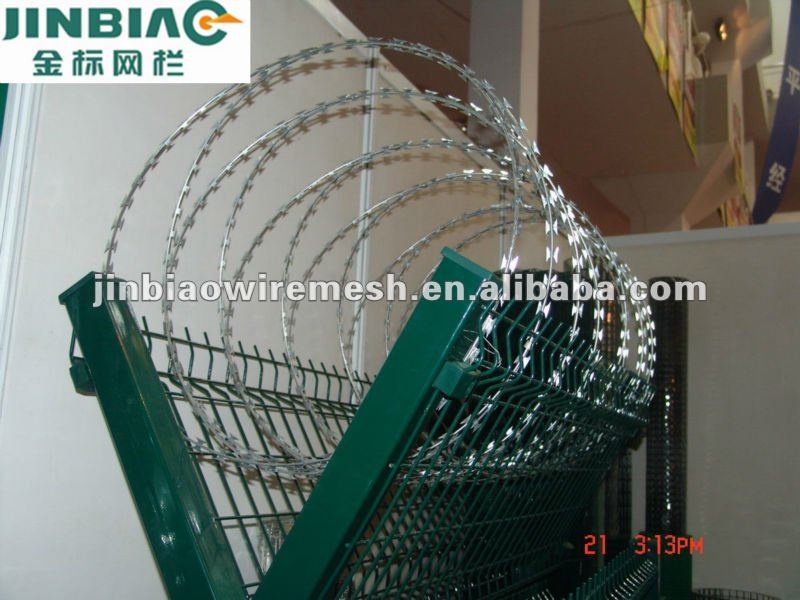

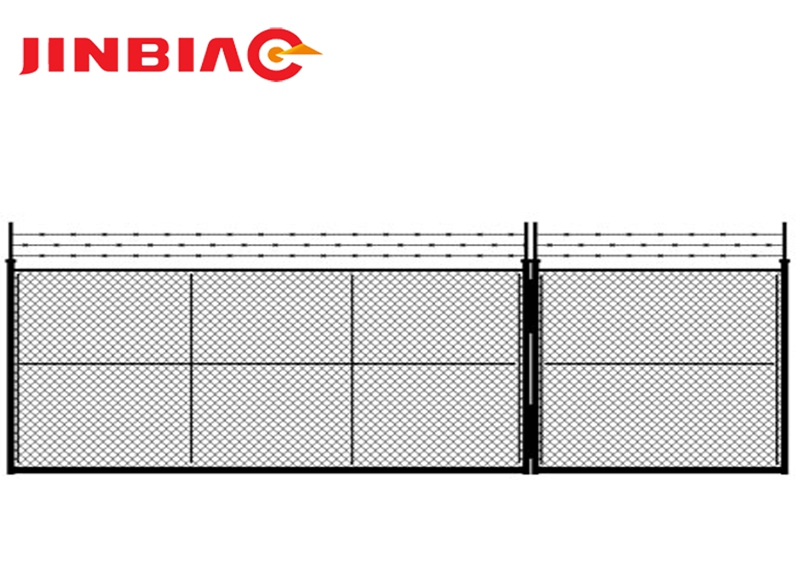

Two toppings are used on airports: concertina coil, which is a continuous spiral of razor tape, and a flat barbed or razor wire run on brackets.

Coil is the harder of the two to cross, because it compresses rather than staying where it is pushed. Flat wire is easier to install on a long straight run and easier for maintenance access. The choice usually follows the security brief rather than the fence.

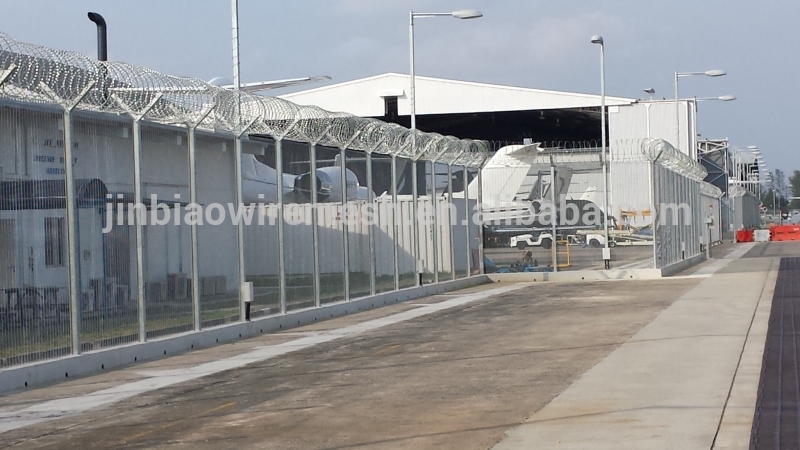

Razor topped airport fence along an apron
Welded mesh perimeter panels with razor coil at dusk

Gates, Corners and the Weak Points

Most perimeter breaches do not start in the middle of a run. They start at a gate, a corner post, a culvert or a change of level.

Gate leaves need the same panel and the same topping as the run, and a sliding leaf needs a track or a cantilever that will not be defeated by lifting. Corners take a heavier post because two runs pull against it.

What to Send for a Quotation

Close view of a Y post and razor coil on an airport fence
  • Run length and number of corners

  • Finished height, and whether the height includes the topping

  • Topping: concertina coil, flat razor wire or barbed

  • Gate openings, with leaf widths and whether they slide or swing

  • Ground: soil, concrete or a wall the fence sits on

  • Coating colour and the distance to the coast

  • Destination port
