High security manufacturer supply corrosion resistant airport fence factory

     1.corrosion resistance, security fence, anticlimb, resistance to cut by hands and tools.

     2.Razor wire can be add to the installation to increase security furthermore.

     3.welded at each intersection, hence an effective deterrent to would be intruders

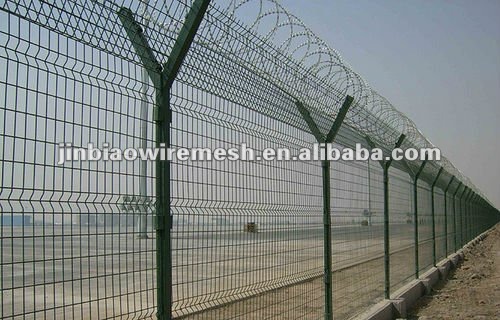

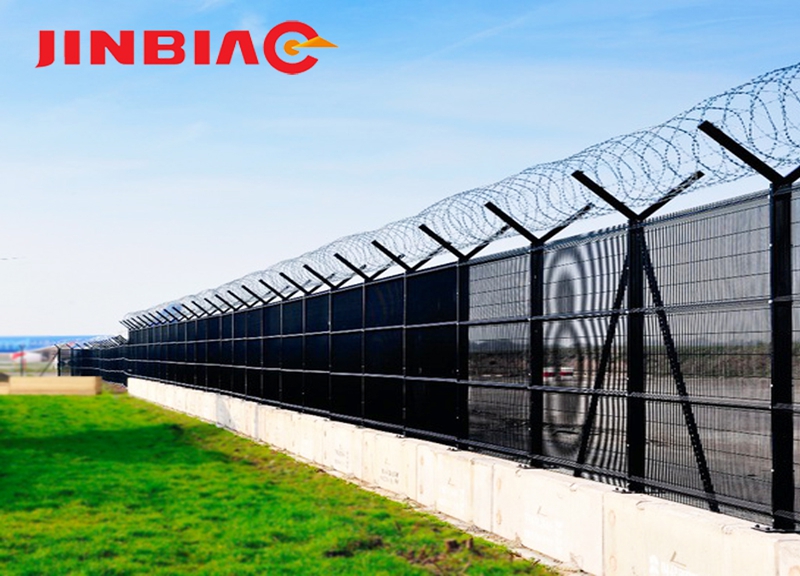

Airport security high quality no climb fence

 358 fence.jpg



 Razor barbed wire

Ex. Dia.

No. of Turns

Standard Covering Length

Production Model

Remarks

450mm

33

8M

CBT-65

Single coil

500mm

41

10M

CBT-65

Single coil

700mm

41

10M

CBT-65

Single coil

960mm

53

13M

CBT-65

Single coil

500mm

102

16M

BTO-12.18.22

Cross type

600mm

86

14M

BTO-12.18.22

Cross type

700mm

72

12M

BTO-12.18.22

Cross type

800mm

64

10M

BTO-12.18.22

Cross type

960mm

52

9M

BTO-12.18.22

Cross type

Specification List of Welded Wire Mesh

Opening

Wire Diameter(BWG)

In inch

In metric unit(mm)

1/4” x 1/4”

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

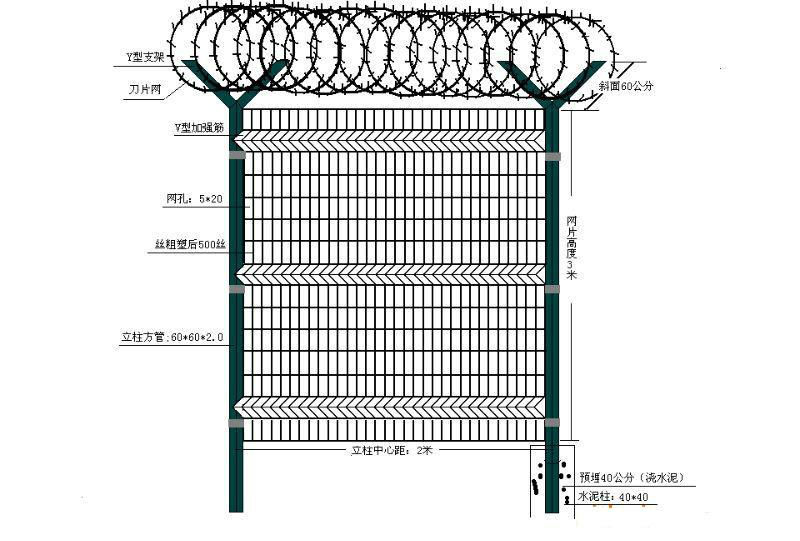

1) Security for 358 Hi-Security System

 Panels

Posts

Fence

Panel Size

section

O/A Length

Total number of fixings

height

Height/Width



Inters- 1 Clamp bar

Corners- 2 Clamp bars

m

mm











2.0

2007 x 2515

60x60x2.5mm

2700

7

14

2.4

2400 x 2515

60x60x2.5mm

3100

9

18

3.0

2997 x 2515

80x80x2.5mm

3800

11

22

3.3

3302 x 2515

80x80x2.5mm

4200

12

24

3.6

3607 x 2515

100x60x3mm

4500

13


3.6

3607 x 2515

100x100x3mm

4500


26

 2) Security for 358 Maximum Security System

Panels

Posts

Fence

Panel Size

section

O/A Length

Total number of fixings

height

Height/Width



Inters- 1 Clamp bar

Corners- 2 Clamp bars

m

mm











4.2

4204 x 2515

100x100x4mm

5200

15

30

4.5

4496 x 2515

100x100x5mm

5500

16

32

5.2

5207 x 2515

120x120x5mm

6200

18

36

1

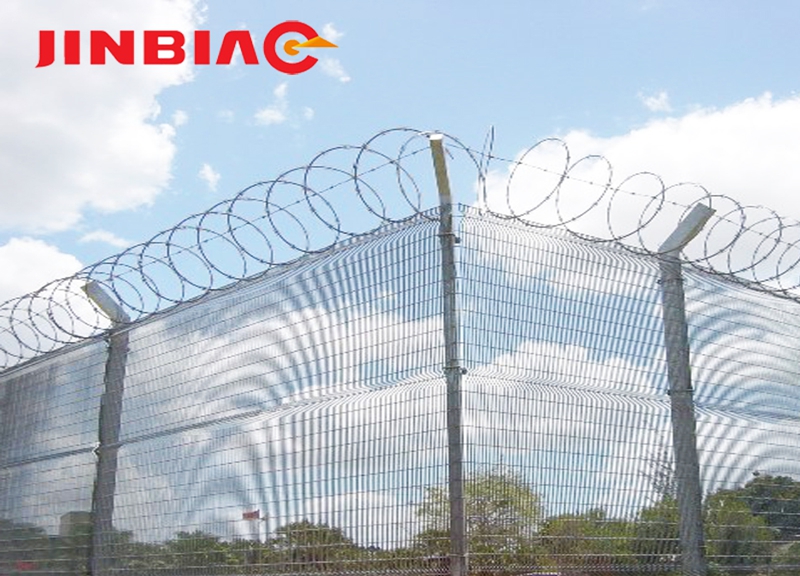

I.Anti climb fence feature:

 1.corrosion resistance, security fence, anticlimb, resistance to cut by hands and tools.

 2.Razor wire can be add to the installation to increase security furthermore.

 3.welded at each intersection, hence an effective deterrent to would be intruders

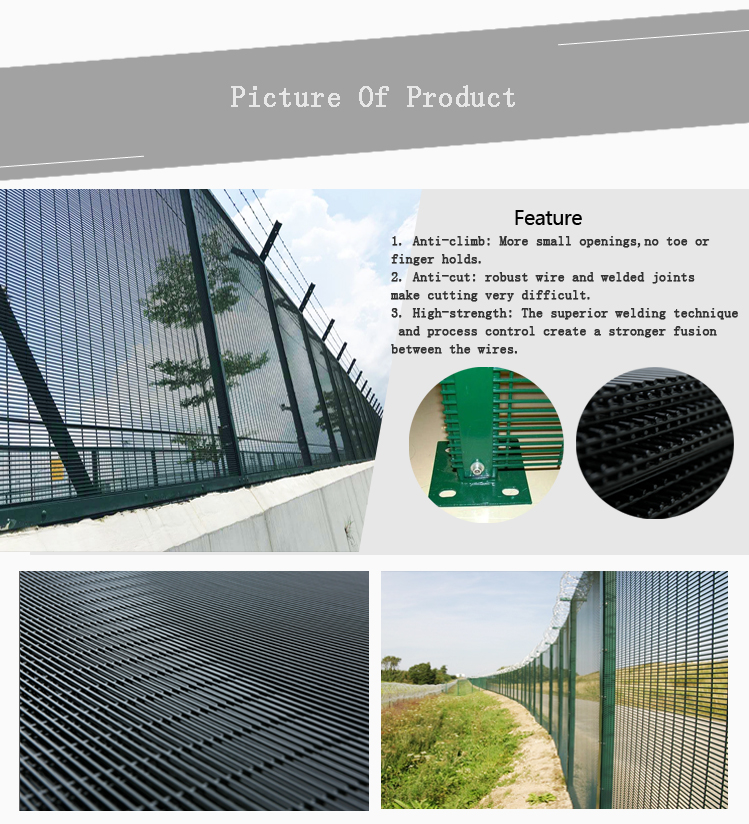

358 fence1.jpg

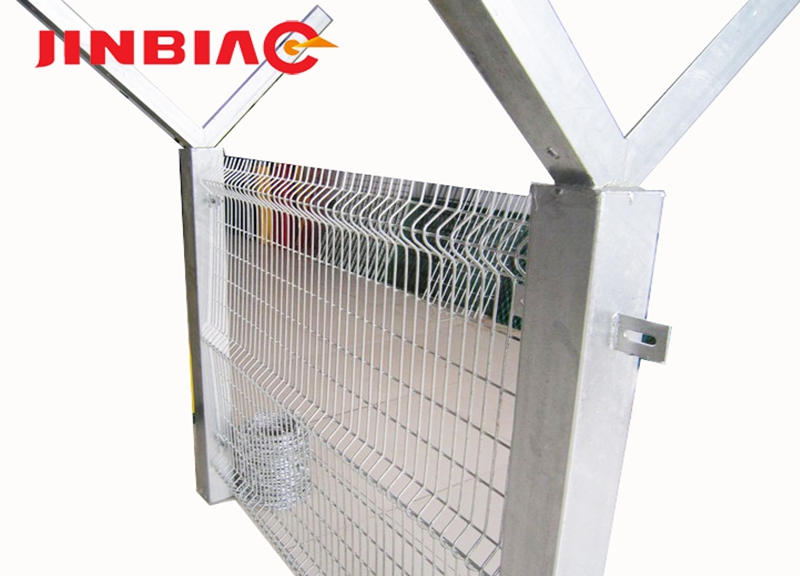

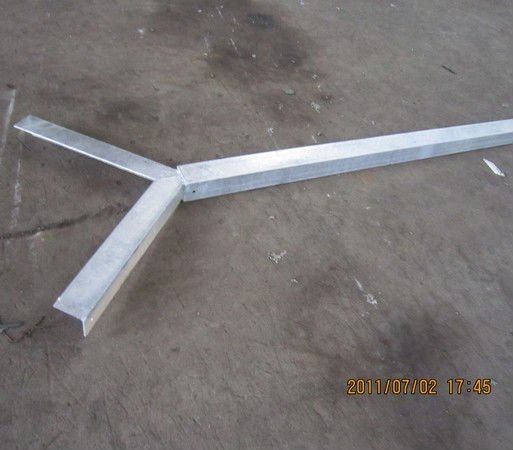

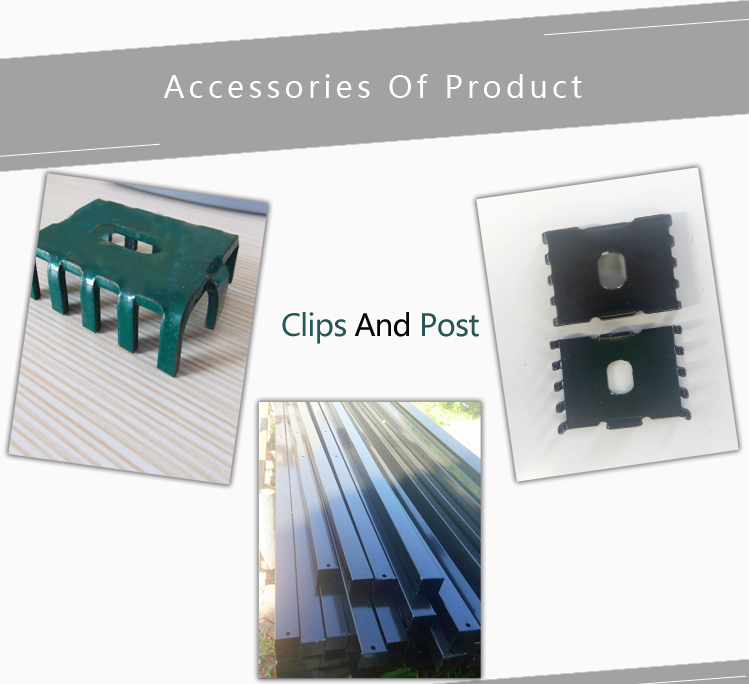

II. Anti climb fence post specification
1. square post: 40*60mm;60*60mm;60*80mm,80*100mm80*120mm
2.C type post: 64*83mm
Surface treatment : Hot dipped galvanized, electro galvnaized , powder painting
V. Anti climb fence color
Green, blue, black,white,yellow, red

358 fence2.jpg









358 fence3.jpg358 fence4.jpg358 fence5.jpg

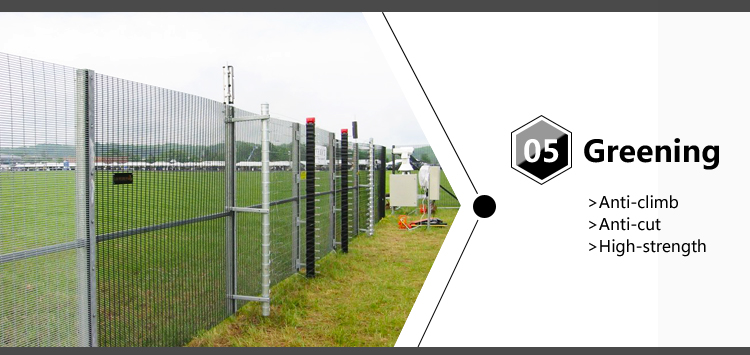

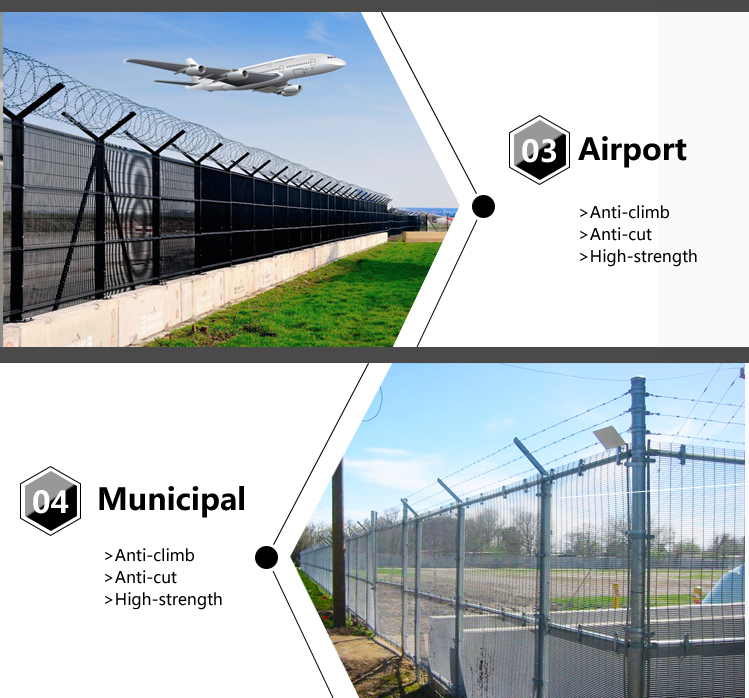

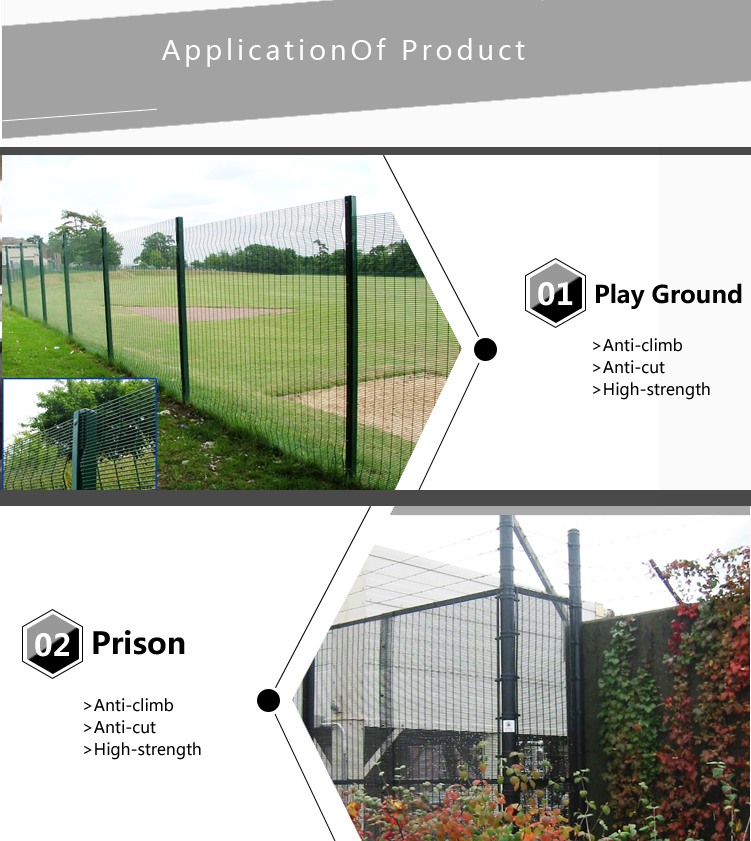

III.Anti climb fence application:
widely used in prison fence, military installations, airport, security fence.....

358 fence6.jpg





wire mesh10.jpgwire mesh11.jpg

Welcome to Contact Us :

wire mesh.jpg

FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: It will take about 10-20 days after get the deposit, urgent order can be discussed.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
