Welded Mesh Panels: Aperture, Wire and Weld
Three Numbers Describe a Panel
A welded mesh panel is fully described by three things: the aperture, the wire diameter, and the weld. Height and width are commercial; those three decide what the panel does.
Aperture
Aperture is the clear opening between wires, given as horizontal by vertical. On a 358 panel it is 76.2 mm by 12.7 mm.
The vertical dimension is the one that matters for security: a narrow opening removes the foothold. The horizontal dimension sets how much the panel deflects under load.
Panels, posts, topping and gates are quoted against the run and the brief, so the system is agreed before the steel is cut.
Wire Diameter
Wire diameter sets both strength and weight. A 4 mm wire is the common perimeter specification; heavier wire resists cutting and bending better and costs more in steel and in post section.
Weight per square metre follows directly from wire diameter and aperture, which is why a specification that names only the aperture is not a specification.
The Weld
Every intersection is welded, and the quality of that weld is what separates a security panel from a decorative one.
A cold weld holds the wire in place but fails under a peel force. The check is simple: a panel that can be worked loose by hand at an intersection is not a security panel, whatever the aperture says.
Edge and Frame
Panels are either plain edged, with the wire ends cut flush, or framed with a flat bar or a folded section.

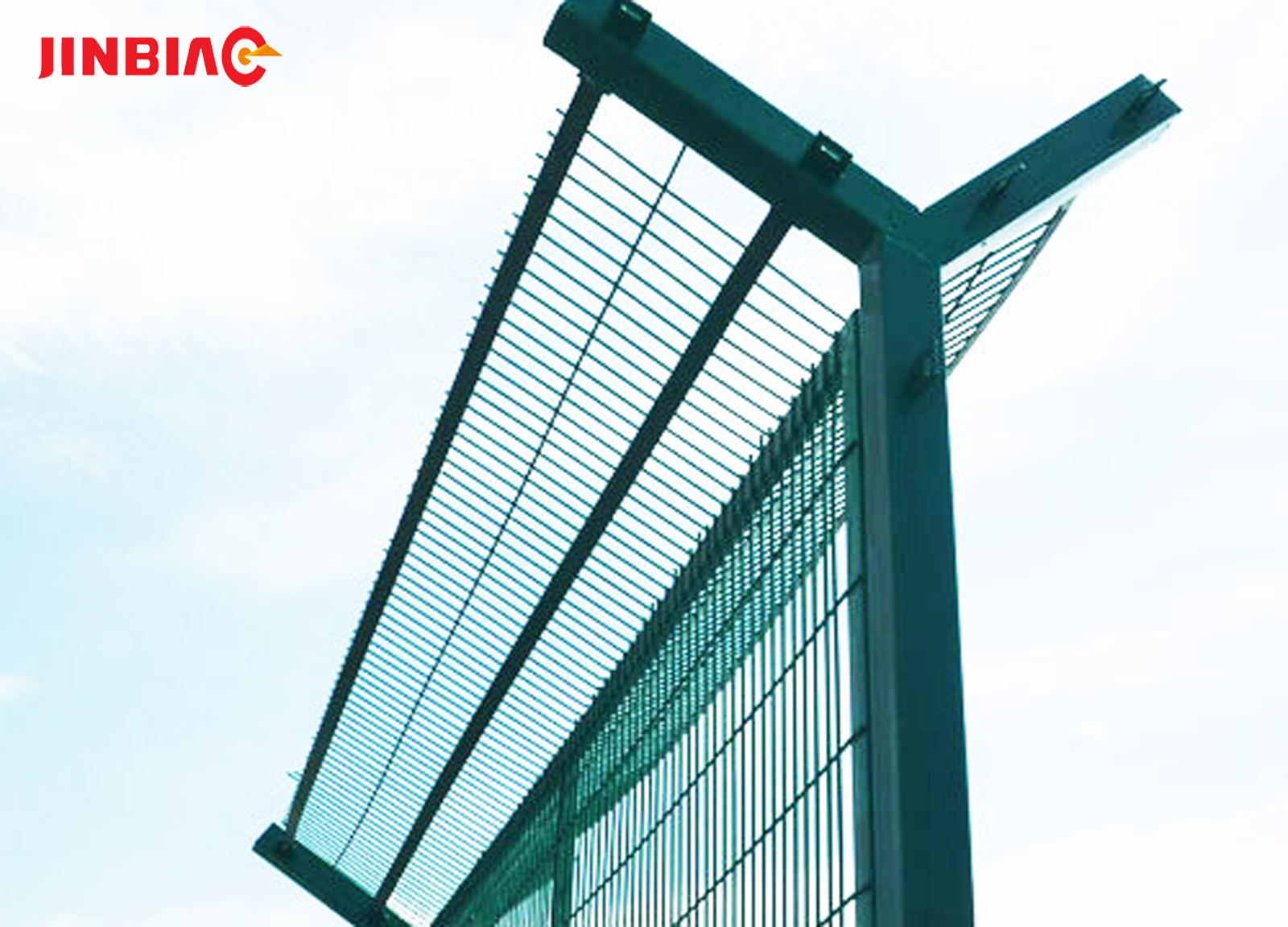

A frame stiffens the panel and gives the fixing something to clamp, at the cost of weight and price. On a run with a topping, the frame is usually worth it.
