High Security 358 Security Fence

    358 Security Fence also known as” Prison Mesh”, it is a special fencing panel we can make in our city, this production offers the best value for performance, durability and appearance. ‘358’ comes from its measurements 3”x0.5”x8 gauge which equates to approx. 76.2x12.7x4mm in metric.


Feature: Smaller opening makes it difficult to climb and penetrate. Robust wire and welded joints make it impossible to be cut by conventional wire cutters. Flat, two-dimensional profile makes it easier to be seen through than chain link.


MESHPANELPOST
WireOpeningHeight * WidthSECTIONLengthTotal number of fitting
mmmmmmmmmmInters-1 Clamp BarComers-2 Clamp Bar
412.7x76.2(3”x1/2”)2007x251560x60x2.52700714
412.7x76.2(3”x1/2”)2004x251560x60x2.53100918
412.7x76.2(3”x1/2”)2997x251580x80x2.538001122
412.7x76.2(3”x1/2”)3302x251580x80x2.542001224
412.7x76.2(3”x1/2”)3607x2515100x60x345001326
412.7x76.2(3”x1/2”)3607x2515100x100x345001326
Max Security System
412.7x76.2(3”x1/2”)4204x2515100x100x452001530
412.7x76.2(3”x1/2”)4496x2515100x100x555001632
412.7x76.2(3”x1/2”)5207x2515120x120x562001836

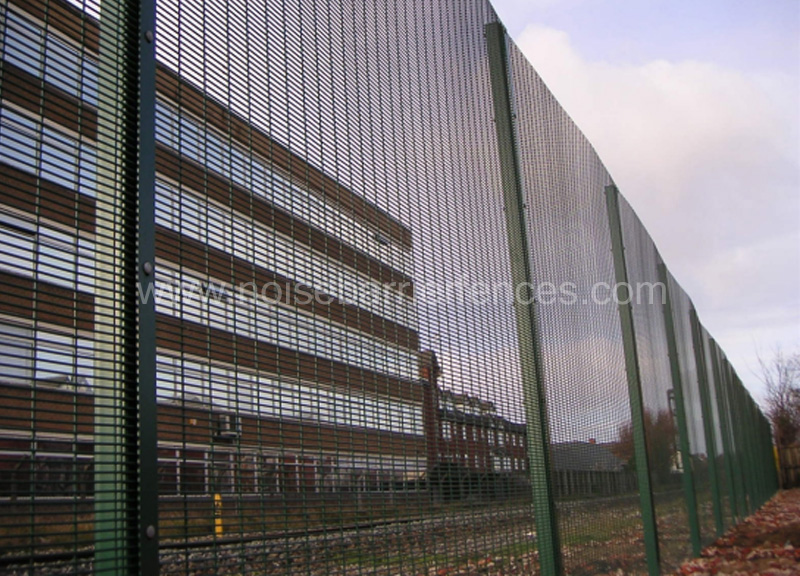

                                358 Anti Climb High Security Mesh Fence

  358 fence.jpg

1) Security for 358 Hi-Security System

 Panels

Posts

Fence

Panel Size

section

O/A Length

Total number of fixings

height

Height/Width



Inters- 1 Clamp bar

Corners- 2 Clamp bars

m

mm











2.0

2007 x 2515

60x60x2.5mm

2700

7

14

2.4

2400 x 2515

60x60x2.5mm

3100

9

18

3.0

2997 x 2515

80x80x2.5mm

3800

11

22

3.3

3302 x 2515

80x80x2.5mm

4200

12

24

3.6

3607 x 2515

100x60x3mm

4500

13


3.6

3607 x 2515

100x100x3mm

4500


26

 2) Security for 358 Maximum Security System

Panels

Posts

Fence

Panel Size

section

O/A Length

Total number of fixings

height

Height/Width



Inters- 1 Clamp bar

Corners- 2 Clamp bars

m

mm











4.2

4204 x 2515

100x100x4mm

5200

15

30

4.5

4496 x 2515

100x100x5mm

5500

16

32

5.2

5207 x 2515

120x120x5mm

6200

18

36

I.Anti climb fence feature:

 1.corrosion resistance, security fence, anticlimb, resistance to cut by hands and tools.

 2.Razor wire can be add to the installation to increase security furthermore.

 3.welded at each intersection, hence an effective deterrent to would be intruders

358 fence1.jpg

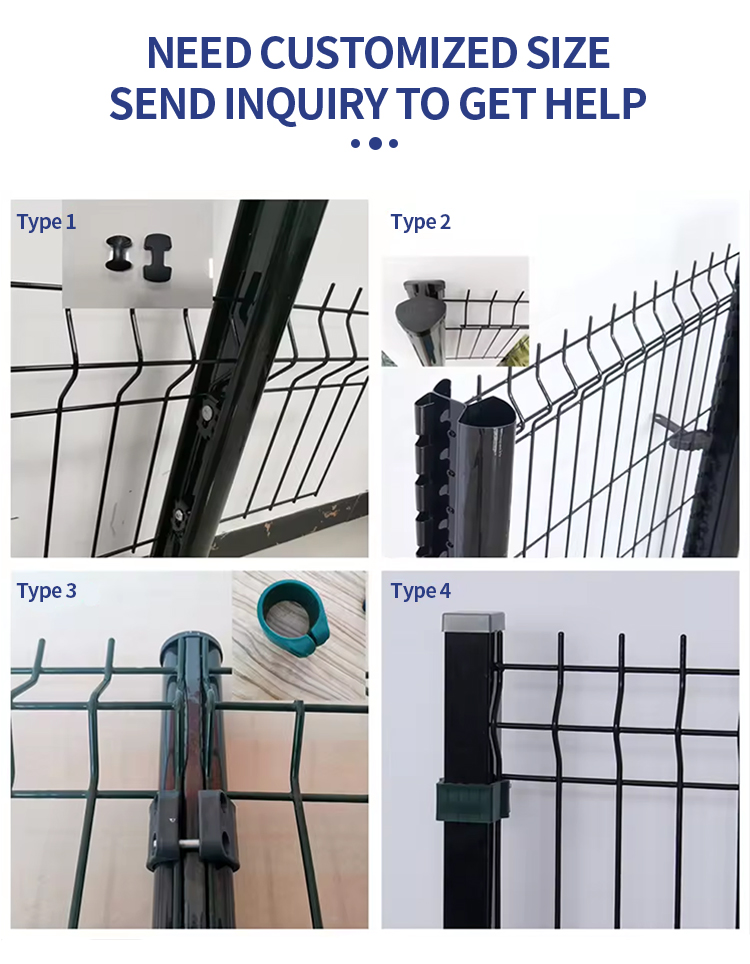

II. Anti climb fence post specification
1. square post: 40*60mm;60*60mm;60*80mm,80*100mm80*120mm
2.C type post: 64*83mm

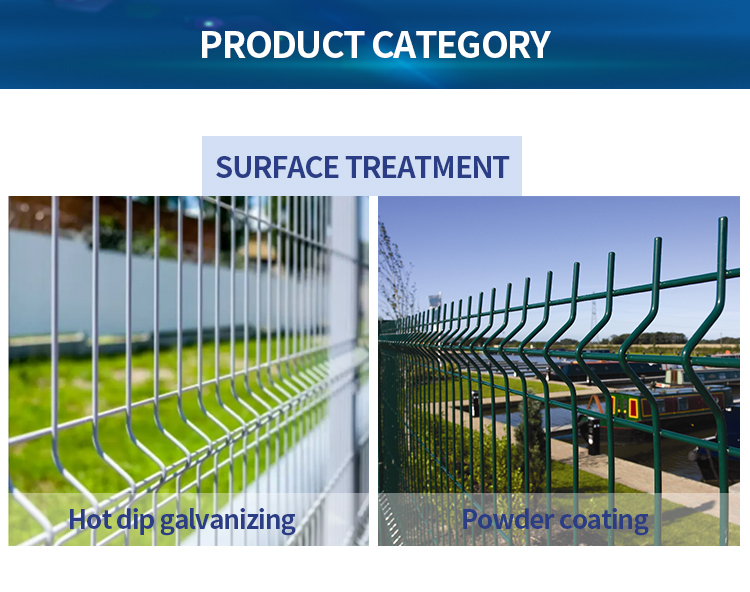

Surface treatment : Hot dipped galvanized, electro galvnaized , powder painting
V. Anti climb fence color
Green, blue, black,white,yellow, red

358 fence2.jpg

358 fence3.jpg358 fence4.jpg358 fence5.jpg


III.Anti climb fence application:
widely used in prison fence, military installations, airport, security fence.....

358 fence6.jpg
