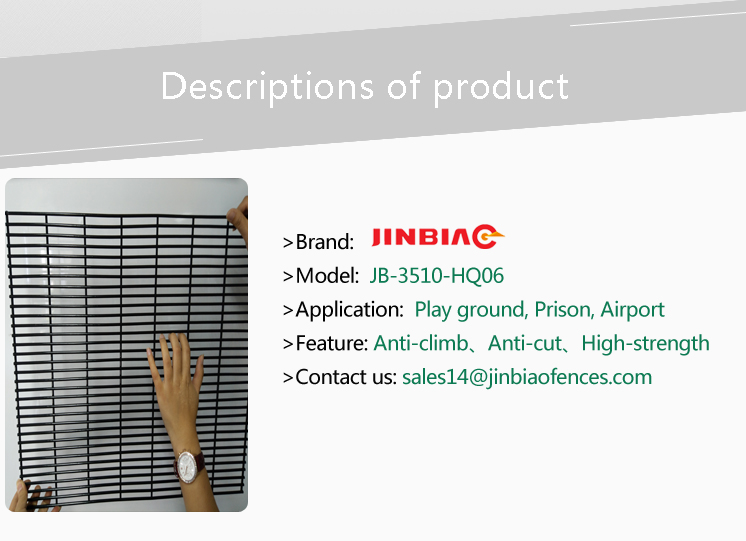

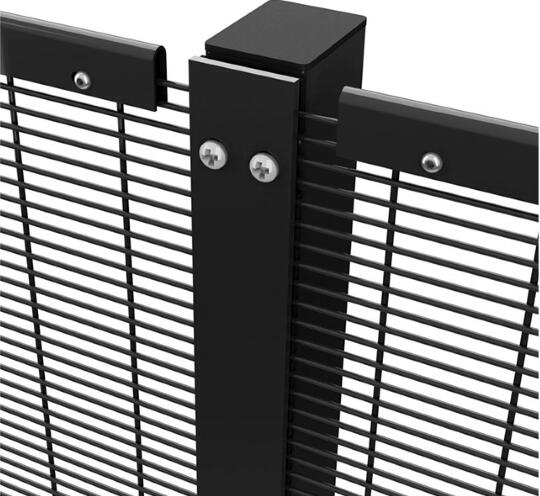

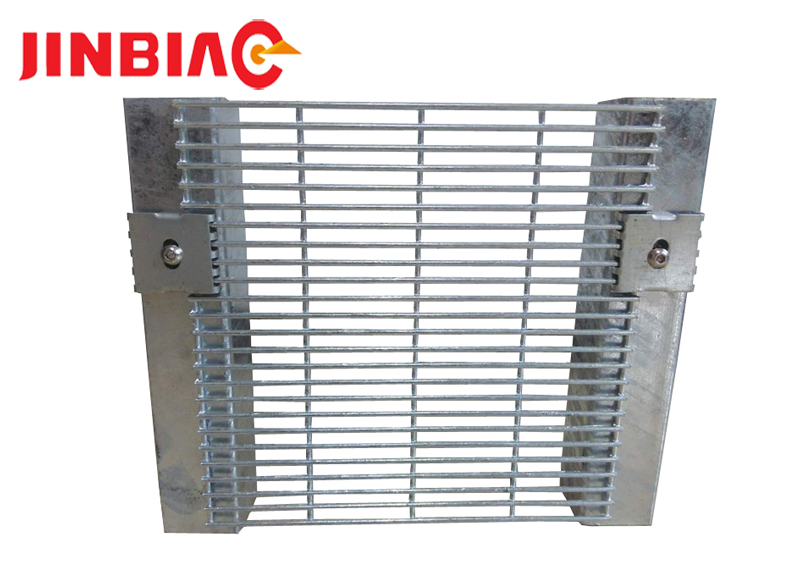

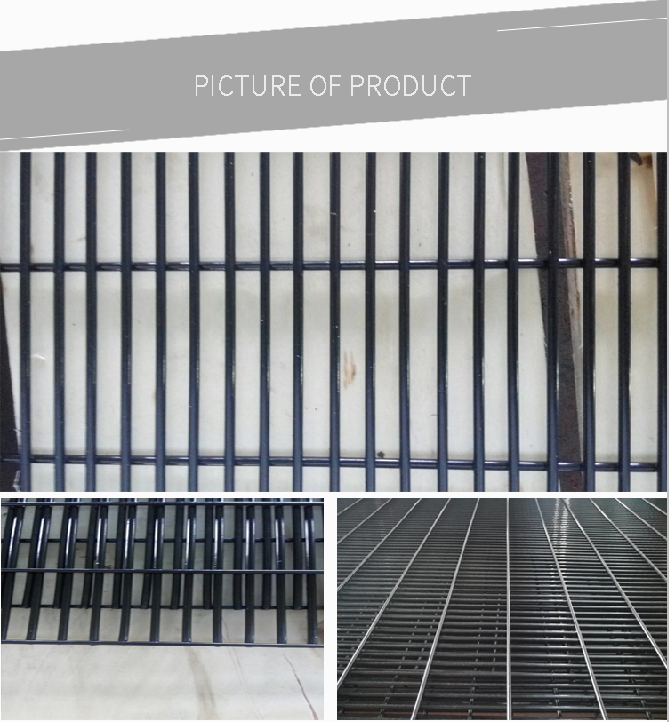

358 Security Anti Climb Fence ( ISO9001:2008 professional factory ) jinbiao

    1. square post: 40*60mm;60*60mm;60*80mm,80*100mm80*120mm
    2.C type post: 64*83mm
    Surface treatment : Hot dipped galvanized, electro galvnaized , powder painting
    V. Anti climb fence color
    Green, blue, black,white,yellow, red



 1.material: low carbon steel wire, stainless steel wire ect.

2.feature: corrosion-resisting, durable. Easy to withstand outdoor exposure ect.

3.special processes: electro galvanized, hot dipped galvanized, palistic-coated ect.

4.useage: used for prison, roads, yard, sport fileds, airports and public area ect.




358, 3510 Security Fence Generial Specification

MESH

PANELS

POST

Wire

Opening

Height*Width

Section

O/A Length

Total number of fixings

mm

mm

mm

mm

mm

Inters-1 Clamp bar

Comers-2 Clamp bar

4, 3.2

12.7*76.2(3”*1/2”)

2007*2515

60*60*2.5

2700

7

14

4, 3.2

12.7*76.2(3”*1/2”)

2004*2515

60*60*2.5

3100

9

18

4, 3.2

12.7*76.2(3”*1/2”)

2997*2515

80*80*2.5

3800

11

22

4, 3.2

12.7*76.2(3”*1/2”)

3302*2515

80*80*2.5

4200

12

24

4, 3.2

12.7*76.2(3”*1/2”)

3607*2515

100*60*3

4500

13

26

4, 3.2

12.7*76.2(3”*1/2”)

3607*2515

100*100*3

4500

13

26



358, 3510 Maxium Security Fence

MESH

PANELS

POST

Wire

Opening

Height*Width

Section

O/A Length

Total number of fixings

mm

mm

mm

mm

mm

Inters-1 Clamp bar

Comers-2 Clamp bar

4, 3.2

12.7*76.2(3”*1/2”)

4204*2515

100*100*4

5200

15

30

4,3.2

12.7*76.2(3”*1/2”)

4496*2515

100*100*5

5500

16

32

4, 3.2

12.7*76.2(3”*1/2”)

5207*2515

120*120*5

6200

18

36

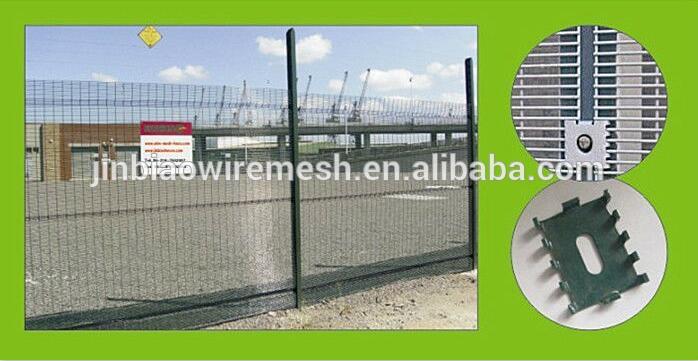

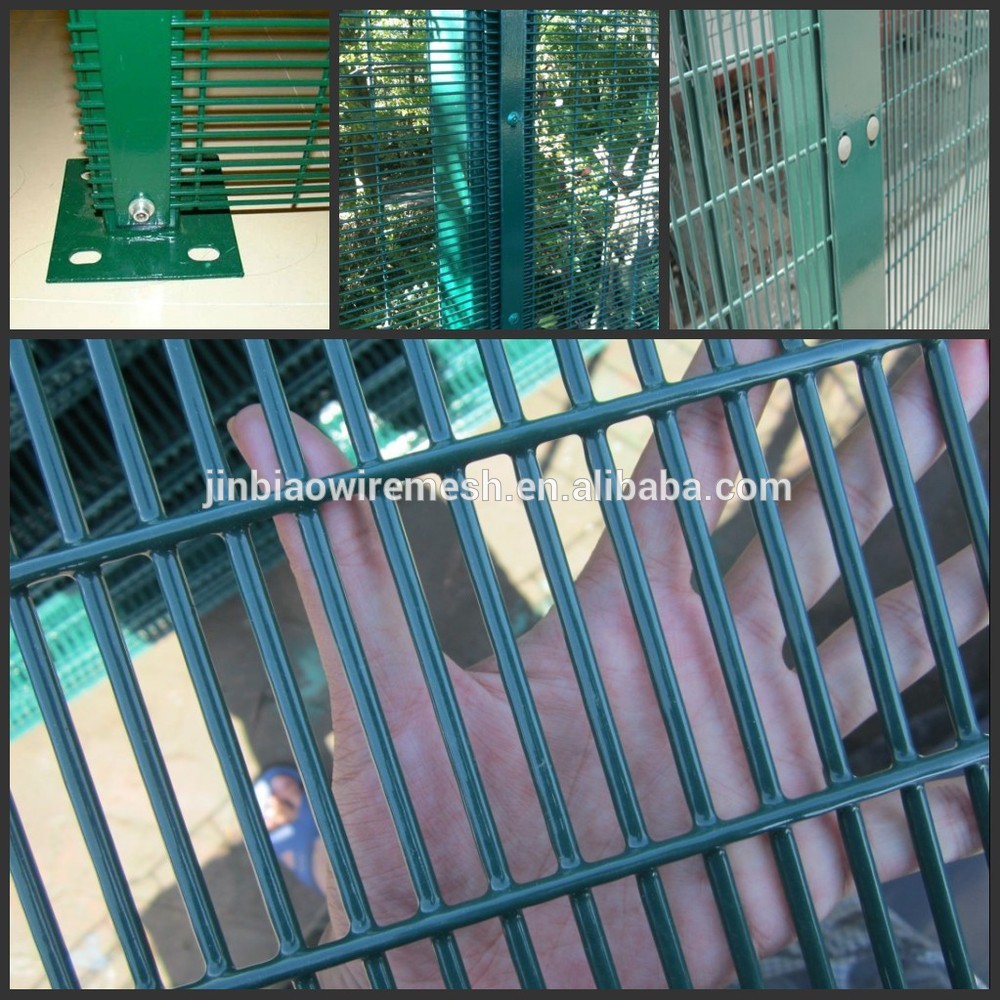

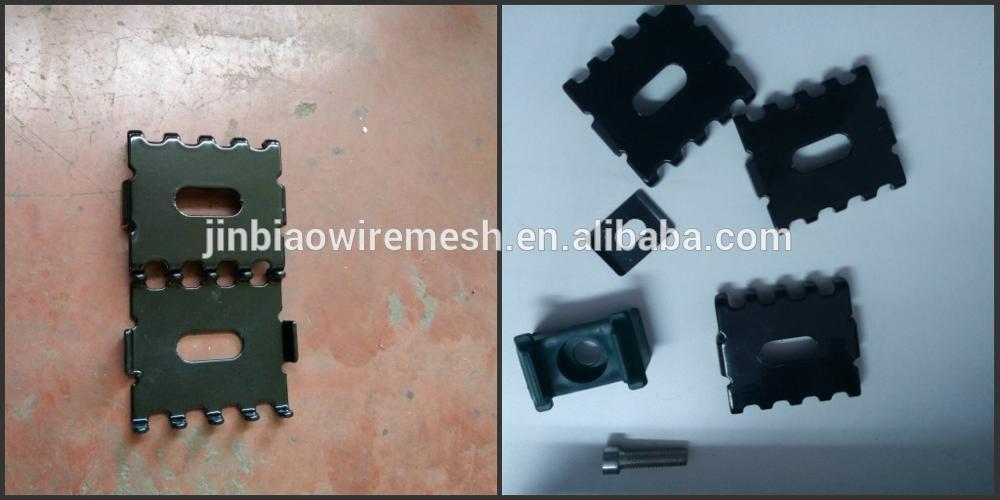

358 Security Fence Accessories:

steel clips or plastic clips

plastic anti-rain caps

base plate if need

2_conew13510 mesh fence.jpg



358 2

                                                                                                                                                                                                                 >>>Buy Now

358 4358 3


QQ20170621162138

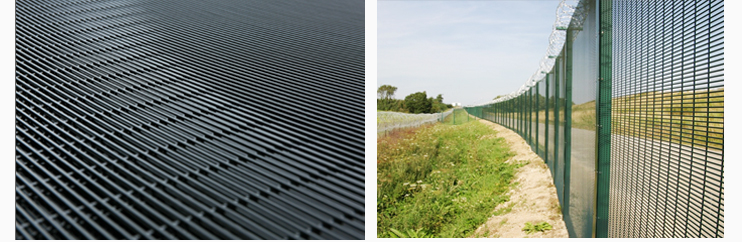

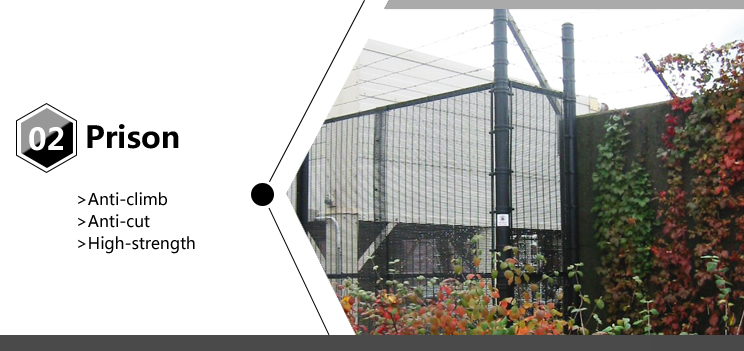

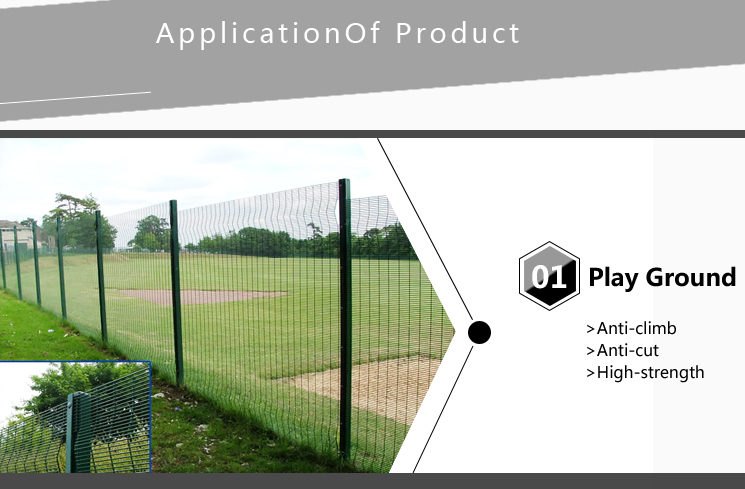

358 Security Fence Applications

industrial and commercial sites

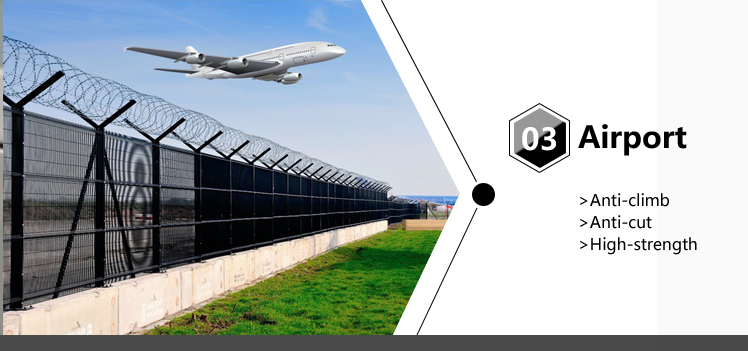

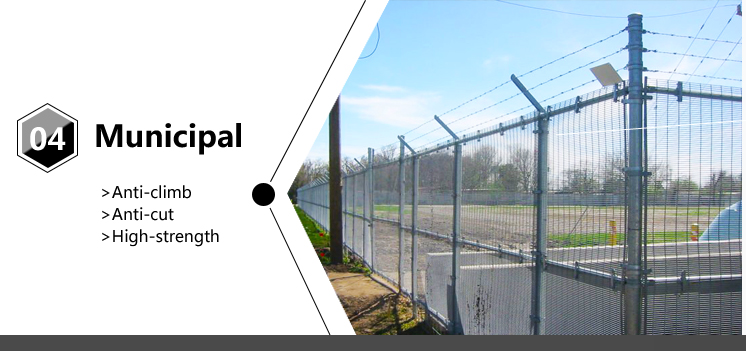

Airport, railway, shools, local authorities

Public utilities, military, prison etc


Contact info

High 358, 3510 Security Fencing – About JINBIAO

JINBIAO Total Perimeter Security has been operating successfully within the security sector for over thirty years. Originally established in 1984, the company has accumulated a wealth of experience and has evolved into the country’s leading fencing and total perimeter security contractors. Providing effective security solutions throughout China and all over the world.

All of our staff and operatives are committed to ensuring that our customers receive the highest standard of service at all times, from the initial conception and design through to completion and hand over. Our experienced staff pride themselves in being able to deal with the most complex of projects, which are often of a restricted nature. All our staff and operatives are security cleared to various levels (SC and DVC) and receive the highest standard of training.



We operate a Quality Assurance System registered with and conforming to ISO 9001:2008, ensuring that the highest level of workmanship is achieved, and maintained at all times.

 QQ20141209121238



>>>Buy Now



wire mesh10.jpgwire mesh11.jpg

Welcome to Contact Us :

wire mesh.jpg

                 Name: Coral hu

                 Tel: +86-311-80979540

                 Mobile: +86-13833129670

                 Skype: huyafeng125

FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: It will take about 10-20 days after get the deposit, urgent order can be discussed.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
