Double Wire Mesh Fence Panels, Powder Coated Green

Twin horizontal wires give a double wire panel its rigidity without a heavy vertical wire. This page covers what that changes in service, how the panel is welded, and how the coating is specified.
  • Double Wire Mesh Fence Panels, Powder Coated Green
  • Double Wire Mesh Fence Panels, Powder Coated Green
  • Double Wire Mesh Fence Panels, Powder Coated Green
  • Double Wire Mesh Fence Panels, Powder Coated Green
Double Wire Mesh Fence Panels, Powder Coated Green

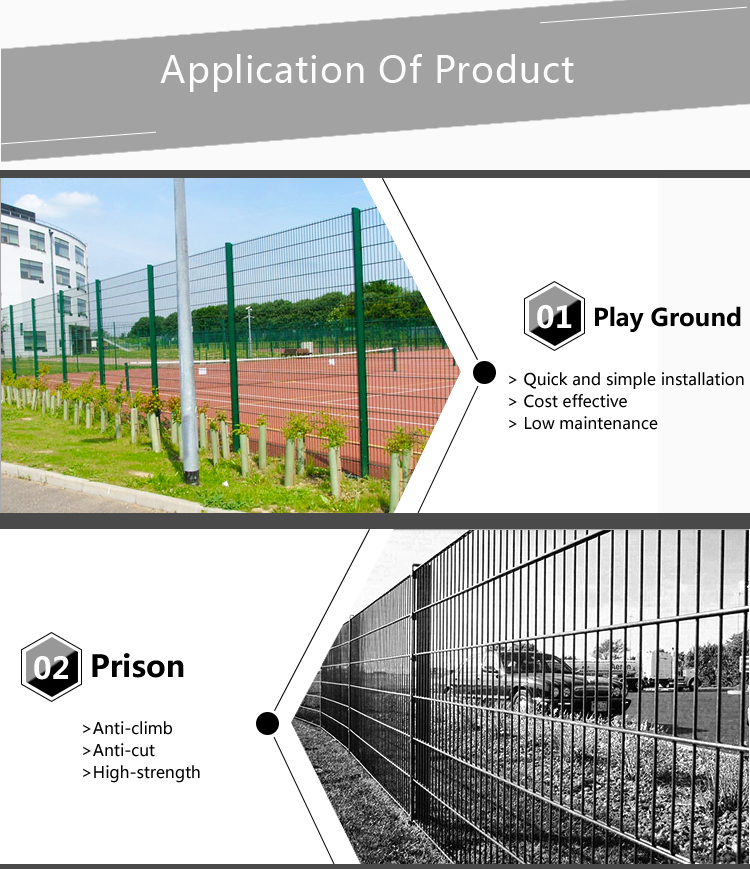

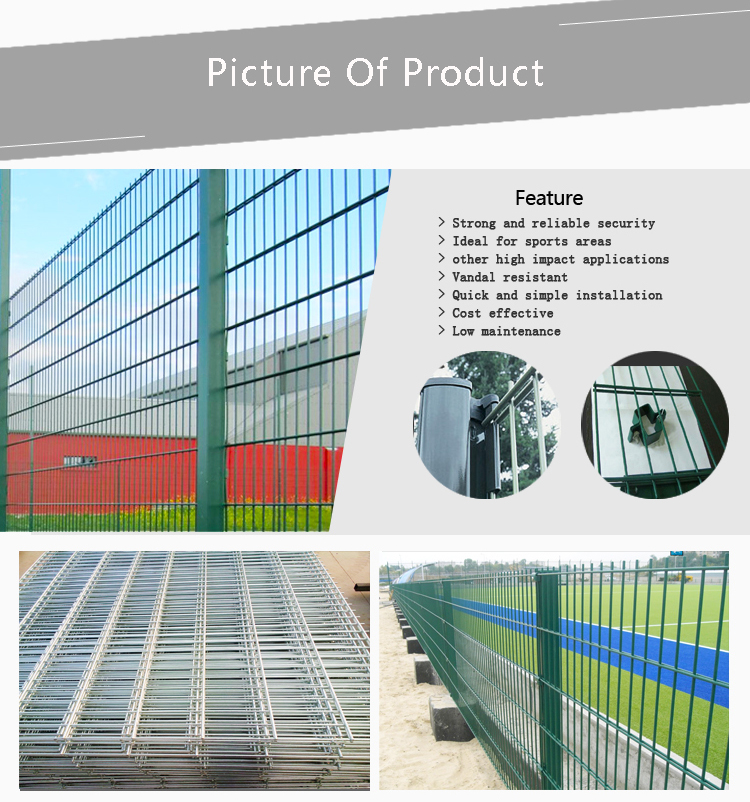

Green double wire mesh panels along an artificial sports pitch

What Twin Horizontal Wires Change

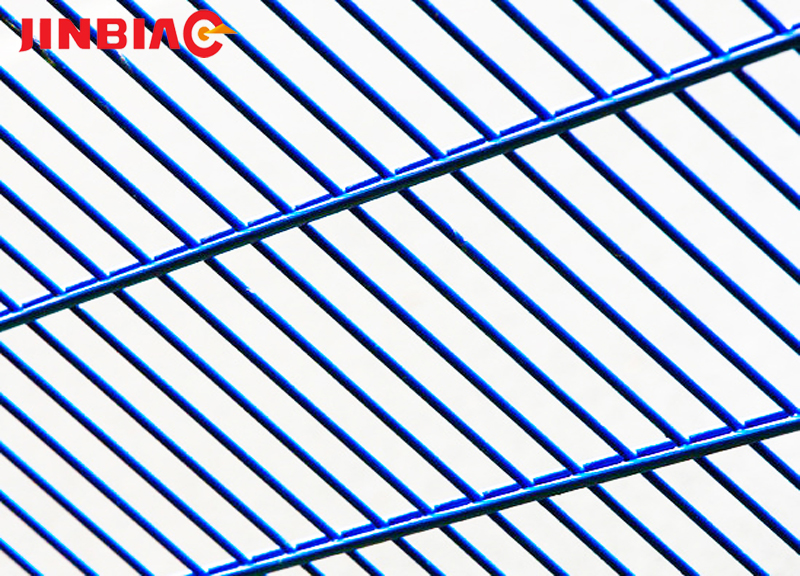

A double wire panel carries two parallel horizontal wires at every horizontal line, welded either side of a single vertical wire. The result is a panel that is stiff across its face without needing a thick vertical wire to hold it straight.

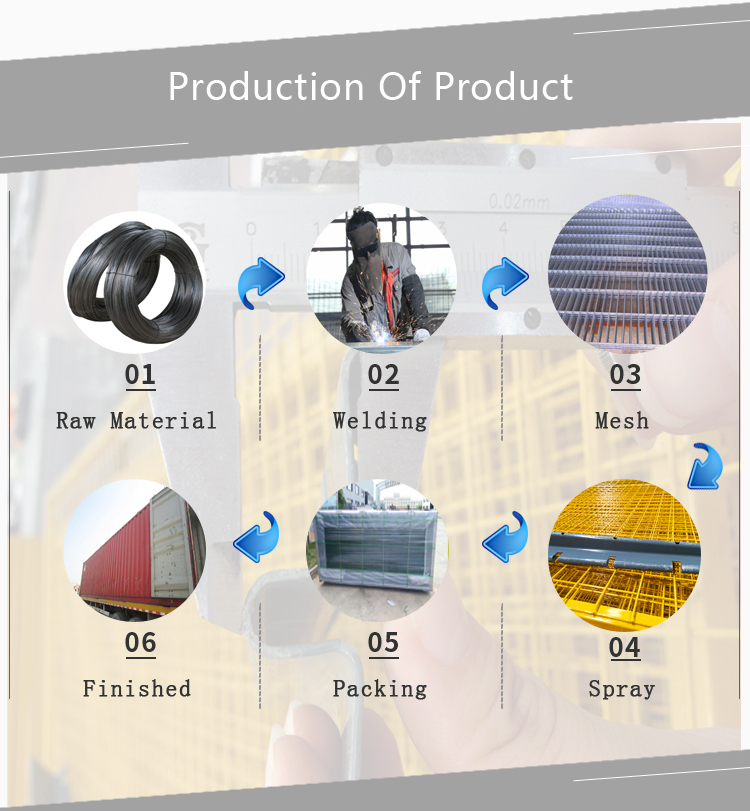

How the Panel Is Welded

The horizontal wires are positioned either side of the verticals and welded at every crossing, so each intersection has two welds rather than one.

Why that matters in service

A single-wire panel loses its shape locally when one weld fails. On a double wire panel a failed weld still leaves the second wire holding the crossing, so the mesh does not open up at that point.

The trade-off is weight and welding time, which is why a double wire panel costs more per square metre than a single wire panel of the same aperture.

Posts, clips and gate hardware are quoted against the post section and the run, so nothing on site is improvised.

Galvanised double wire panels in the workshop before coating

Coating Options

Green double wire panels following a road boundary

Panels are welded from galvanised wire and then either left galvanised or powder coated.

A powder coat over galvanising gives colour plus a second barrier. Coating over untreated wire gives colour only, and the first scratch through the film becomes a rust line. The two look identical on delivery, so the specification has to name the zinc underneath the colour.

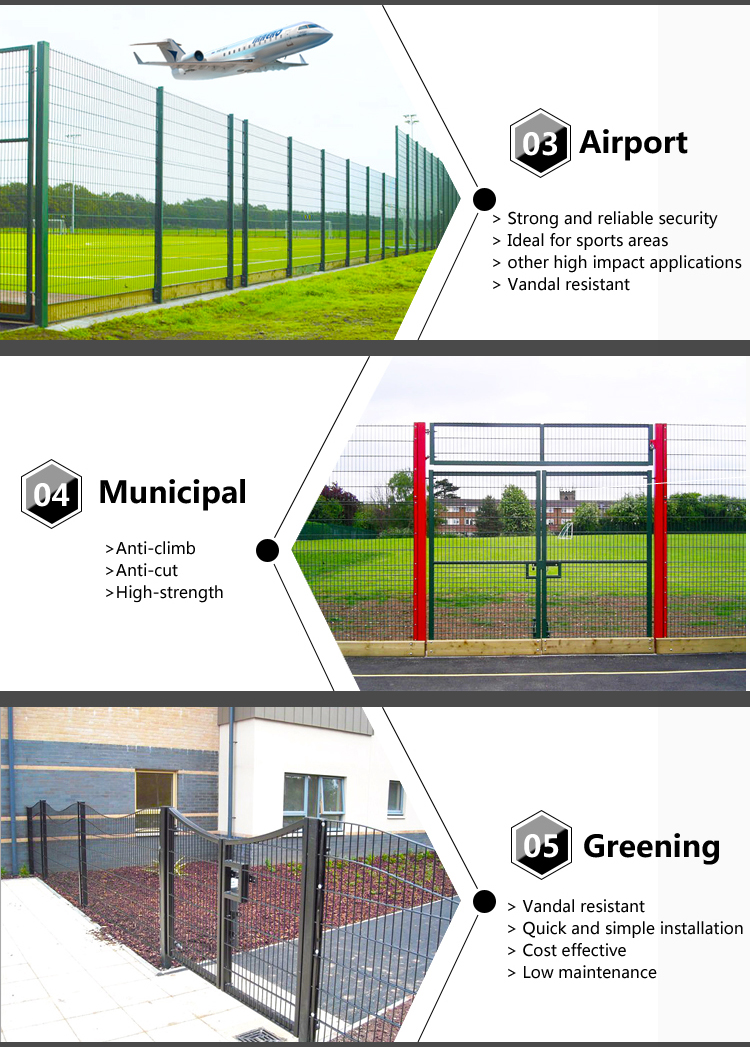

Where the System Suits

  • School and college boundaries

  • Parks, estates and public open space

  • Industrial and warehouse perimeters

  • Runs where a stiffer panel is wanted without a heavier post

Galvanised double wire fence along a highway
Double wire mesh panel on a white background showing twin horizontal wires

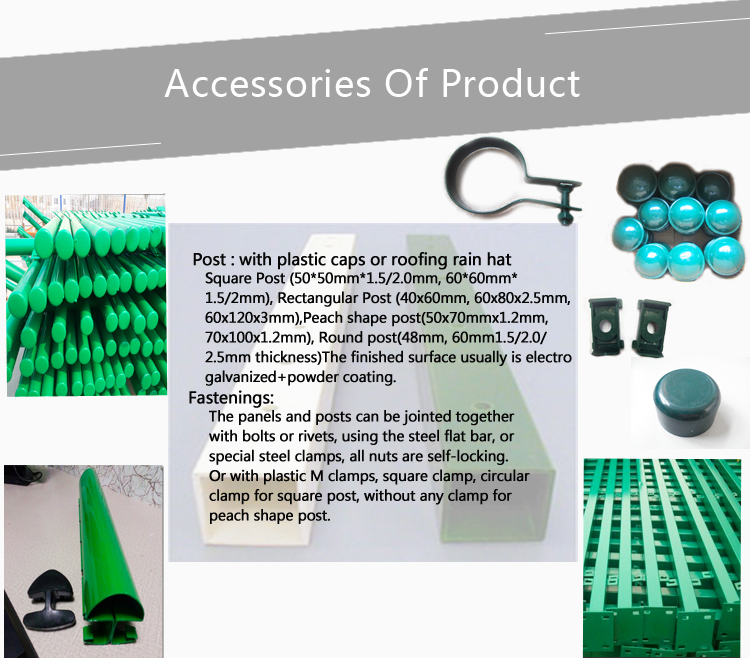

Panels, Posts and Fixings

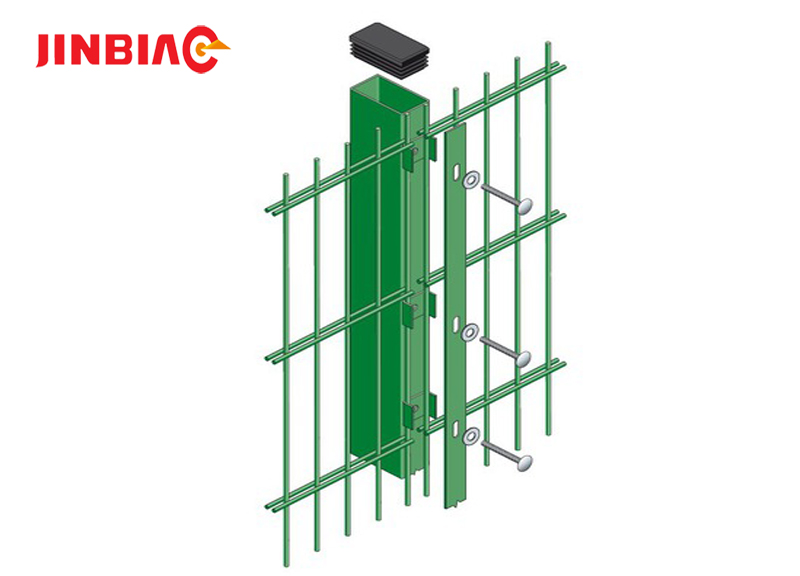

Panels are supplied with the posts and fixings that hold them, matched to the post section and the wind load on the run.

What travels with the order

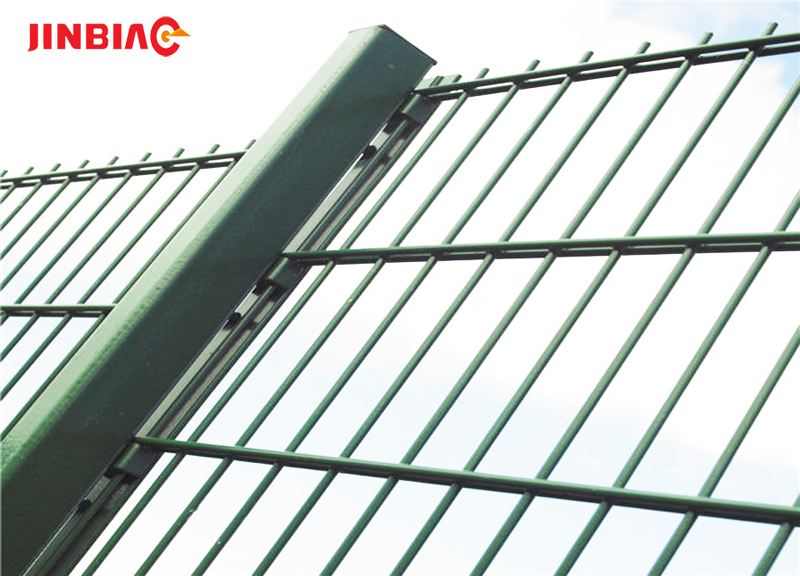

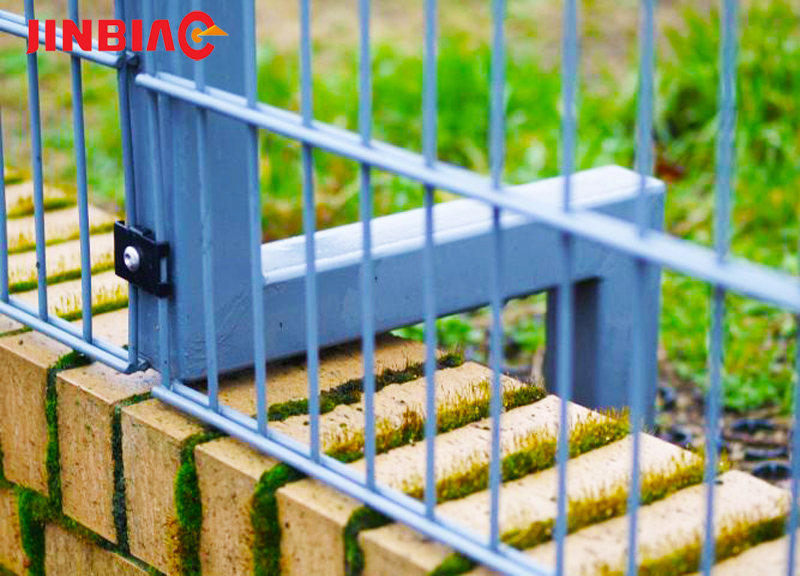

Posts with caps, clips or bolts, and gate leaves where a gate is required. Fixings are matched to the post rather than picked from a general list, because a clip that does not seat allows the panel to move in wind and the coating to wear at the contact point.

What to Send

Green double wire fence at an industrial building

Send the run length and height, the mesh size and wire diameters, the finish, the post section, the post fixing, and the destination port.

Supply only outside China; erection is by the client's contractor against our setting-out drawings.
