Cheap galvanized concertina stainless steel razor barbed wire

    FOB Reference Price: Get Latest Price

    US $200-600 / Ton | 1 Ton/Tons (Min. Order)

    Supply Ability: 40000 Ton/Tons per Month razor barbed wire

    Port: TIANJIN

    Wire diameter:1.45mm,1.52mm,1.6mm,2mm etc

    Surface Treatment:Galvanized Coated

    Color: green,white or as your request

    Razor Type: single wire twist or double wire twist

Product Description
cheap galvanized concertina stainless steel razor barbed wire

Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security



fencing materials, made of hot-dipped galvanized steel sheets or stainless steel sheets. And we can



produce all kinds of razor barbed wire such as straight type razor



wire, concertina coils, crossed type and flat type etc.



Material: Iron or stainless steel

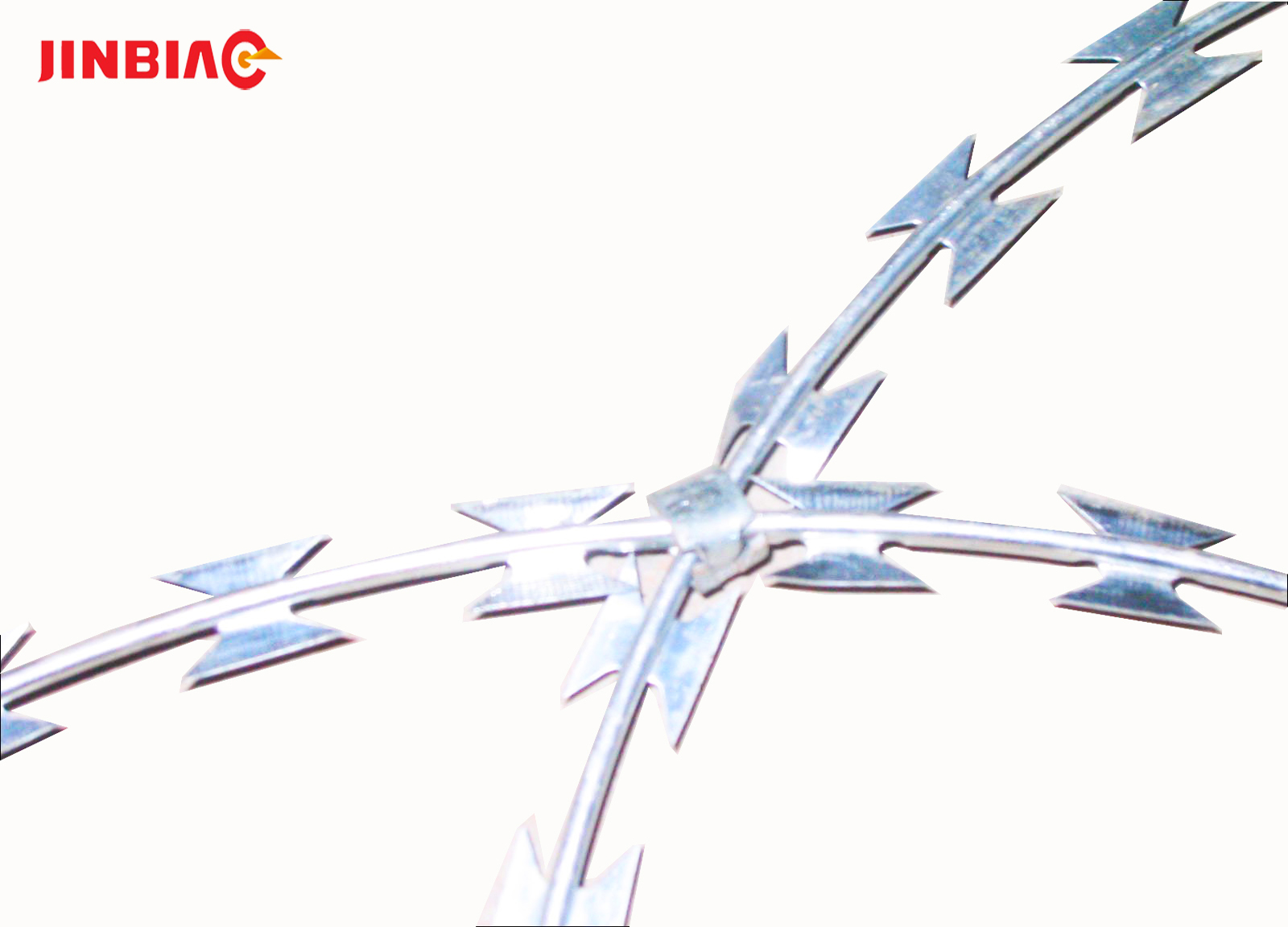

 Types:Single loop razor wire &cross type razor wire



Covering area can be 7m,8m,10m,12m,15m or as customer's requests.



Outter roll diameter can be



450mm,500mm,600mm,730mm,900mm,1meter, or as customers' specific request.



 Blade type:BTO-10,12,18,20,22,30,65& CBT-60



Weave characteristicstwist and weave, fastness ,beautiful; galvanizing after weaving, galvanizing



before weaving. It is divided to electrical galvanized ,hot - dipped galvanized, plas-tic coating,





stainless steel, etc.



Barbed tape wire Specification:

Reference Number

Thickness

Wire Dia

Barb Lengh

Barb Width

Barb spacing

BTO-10

0.5±0.05

2.5±0.1

10±1

13±1

25±1

BTO-12

0.5±0.05

2.5±0.1

12±1

15±1

25±1

BTO-18

0.5±0.05

2.5±0.1

18±1

15±1

35±1

BTO-22

0.5±0.05

2.5±0.1

22±1

15±1

36±1


0.5±0.05

2.5

28

15

46±1

BTO-30

0.5±0.05

2.5

30

18

46±1

CBT-65

0.6±0.05

2.5±0.1

65±2

21±1

101±2



Outer   diameter

No.of Loops

Standard Length

per Coil

Type

Notes

450mm

33

7M-8M

CBT-65

Single coil

500mm

41

10M

CBT-65

Single coil

700mm

41

10M

CBT-65

Single coil

960mm

54

11M-15M

CBT-65

Single coil

500mm

102

15M-18M

BTO-12.18.22.28.30

Cross type

600mm

86

13M-16M

BTO-12.18.22.28.30

Cross type

700mm

72

12M-15M

BTO-12.18.22.28.30

Cross type

800mm

64

13M-15M

BTO-12.18.22.28.30

Cross type

960mm

52

12M-15M

BTO-12.18.22.28.30

Cross type

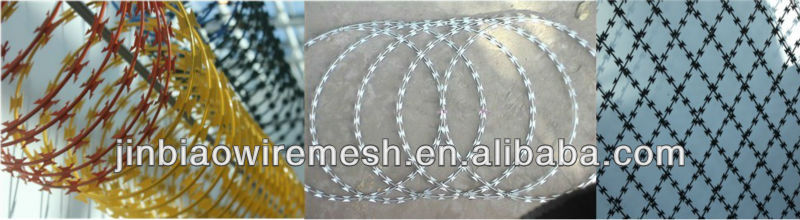

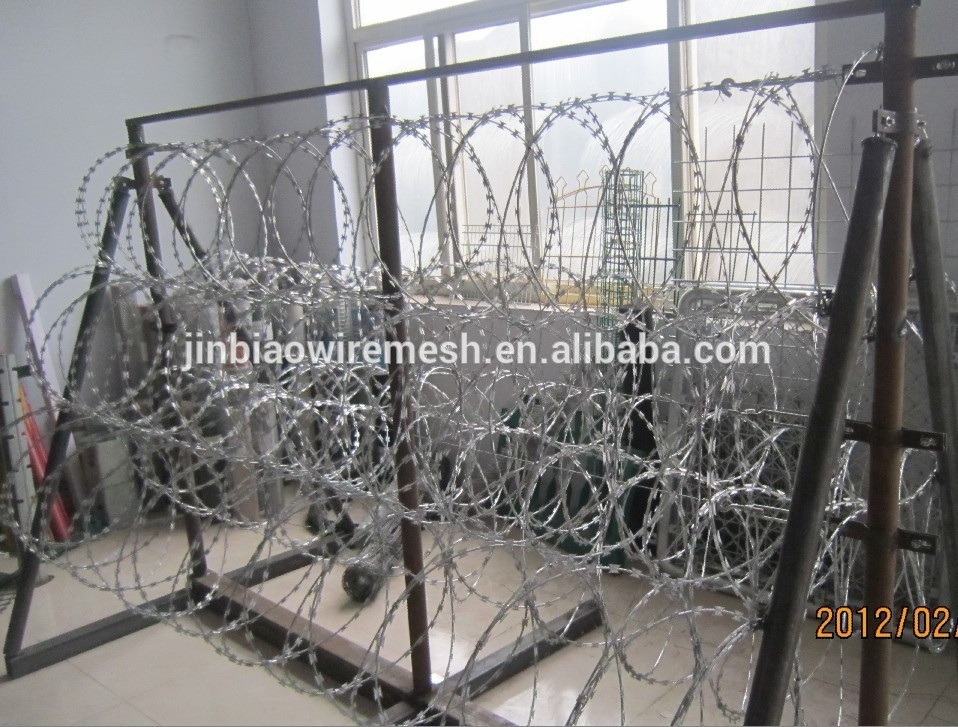

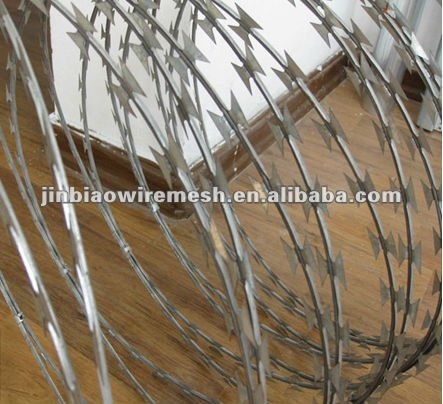

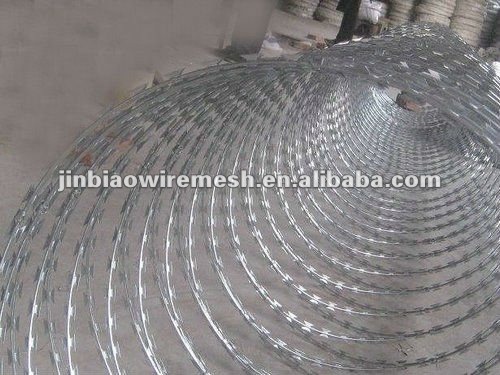

Product show

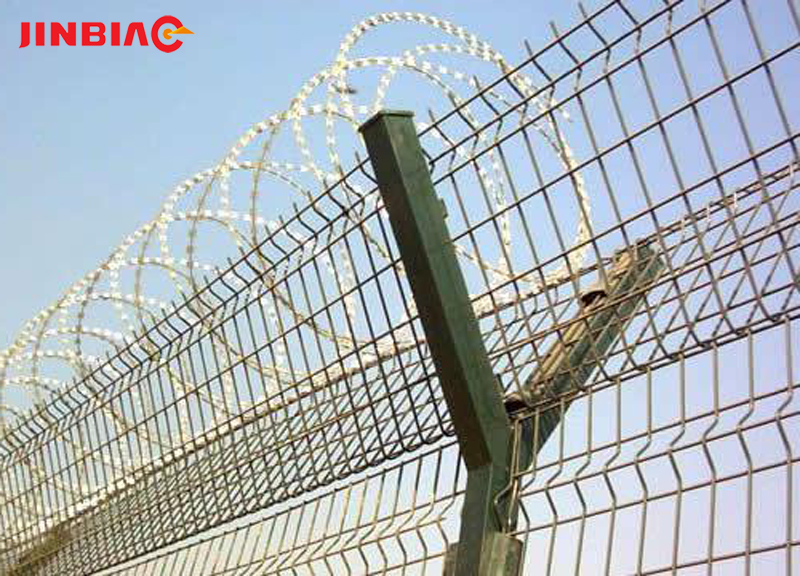

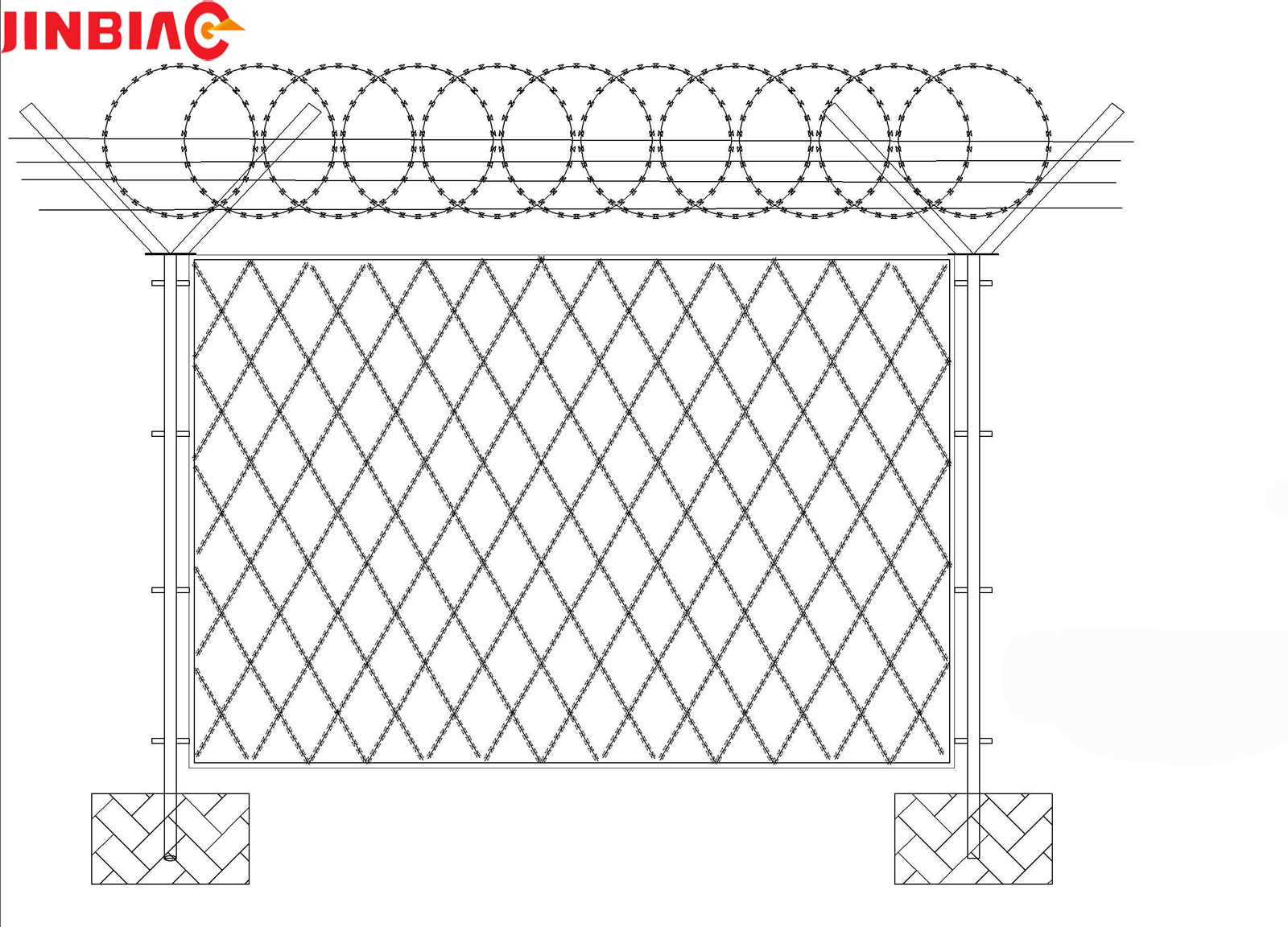

Razor wire can be used in conjunction with an existing wall or fence, or even installed as a barrier on its own, to create an effective security perimeter.



Razor Blade Type: BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65



Material: hot dipped galvanized steel sheet and wire, stainless steel sheet and wire 430 or 304.



The length and the diameter of the coil can be designed as per the customers' need.


Raw materials:

high quality low carbon steel wire (electric galvanized, hot dipped galvanized, plastic coated, plastic spraying), such as blue, green, yellow color.

Usage: used for pasture boundary, railway, highway isolation protection, etc.



* Hot dipped galvanized razor Barbed Wire
Core of PVC coated barbed wire can be galvanized iron wire
A variety of colors like green, blue, yellow, orange, gray

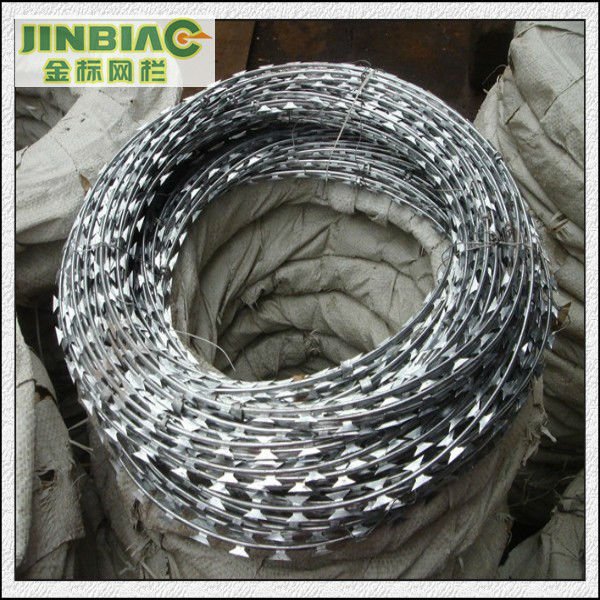

Packing: In coil of 25 kilos or 50 kilos , lined with PVC strips, then wrapped with P.V.C

3272736_1.jpg10591110.jpg4.jpg1284173512-783230[1]QQ20111117100655574conew_9



Product application



Application:



Razor barbed wire is widely used by in military field, prisons, detention houses, government buildings and other national security facilities; it is also used as fence for cottage and society fence, and other private buildings.
