Triangle Bended Fence/ Top Bended Mesh Fence jinbiao

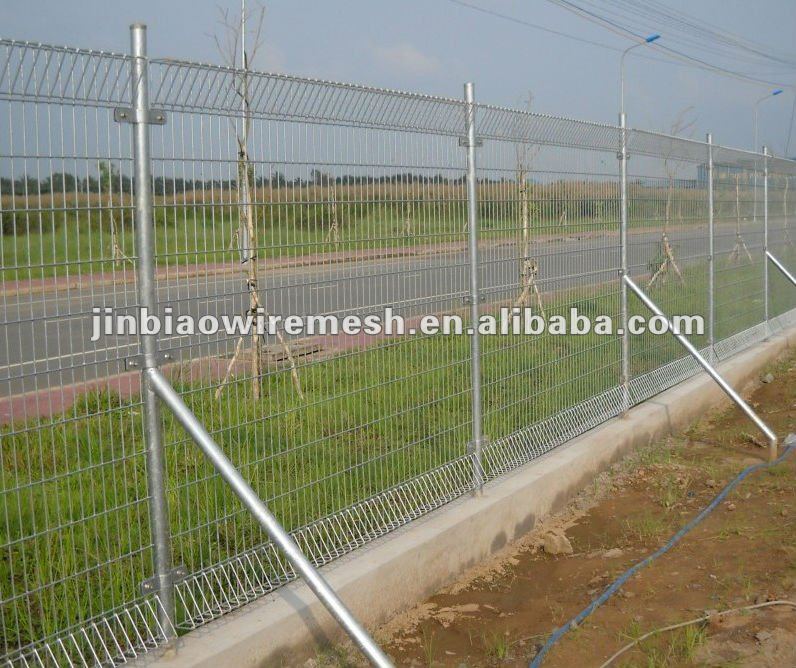

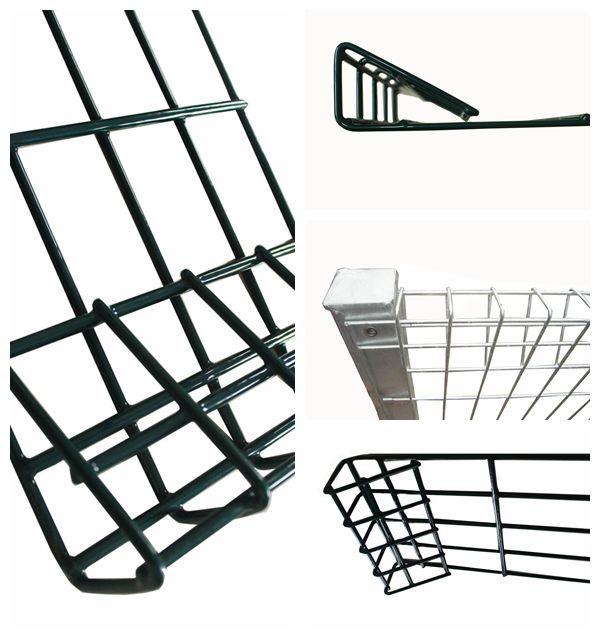

Triangle bended fence is one kind of welded mesh fence. It folds the top of the fence into triangle in order to strengthen it. It is not only beautiful, but very strong.

Inquire Now Next Product

Introduction

Product Description

Triangle Bended Fence( Manufacturer founded in 1986)

Triangle bended fence is one kind of welded mesh fence. It folds the top of the fence into triangle in order to strengthen it. It is not only beautiful, but very strong.

1.Triangle Bended Fence material: galvanized steel wire, stainless steel wire, low carbon wire.

2.Triangle Bended Fence Surface treatment: hot-dipped galvanizing, pvc coated, electro galvanizing

3.Making process of triangle bended fence:

raw material--wire drawing--straightening--cutting to length--welding net/weldingframe--assembly welding--galvanized--shoting blasting--pvc dipping--loading

4. Specification of Triangle Bended Fence Panel

Panel height	Panel Length	Wire Diameter	Mesh Size	Folds No.
0.63m	2.0m 2.5m	Gal+PVC Painting 3.85mm/4.0mm 4.85mm/5.0mm 5.85mm/6.0mm Gal+PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm 5.0mm/6.0mm	50100mm 50200mm 50150mm 55100mm 55200mm 60150mm 75*100mm
0.83m
1.03m				2
1.23m				2
1.5m				3
1.53m				3
1.7m				3
1.73m				3
1.8m				4
1.93m				4
2.0m				4
2.03m				4
2.4m				4

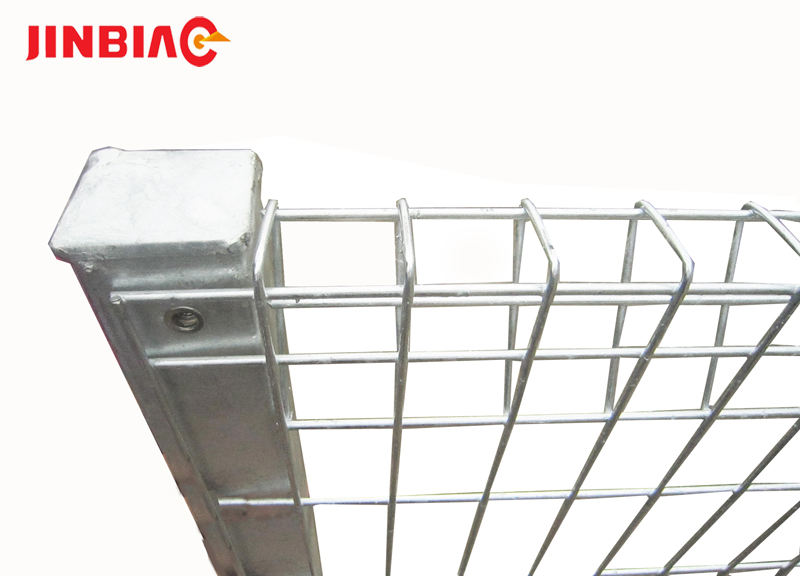

5. Specification of post

Post Style	Post Size	Post Thickness
Rectangle shape	40*40mm	1.5, 1.7 , 2.0, 2.5, 3.0mm
	60*60mm	1.5, 1.7 , 1.8 , 2.0, 2.5, 3.0mm
	40*60mm	1.5, 1.7, 1.8, 2.0, 2.5, 3.0mm
Peach shape	50*70mm	1.0, 1.1 , 1.2mm
Peach shape	70*100mm	1.0, 1.1 , 1.2mm
Round shape	38mm	1.2mm
Round shape

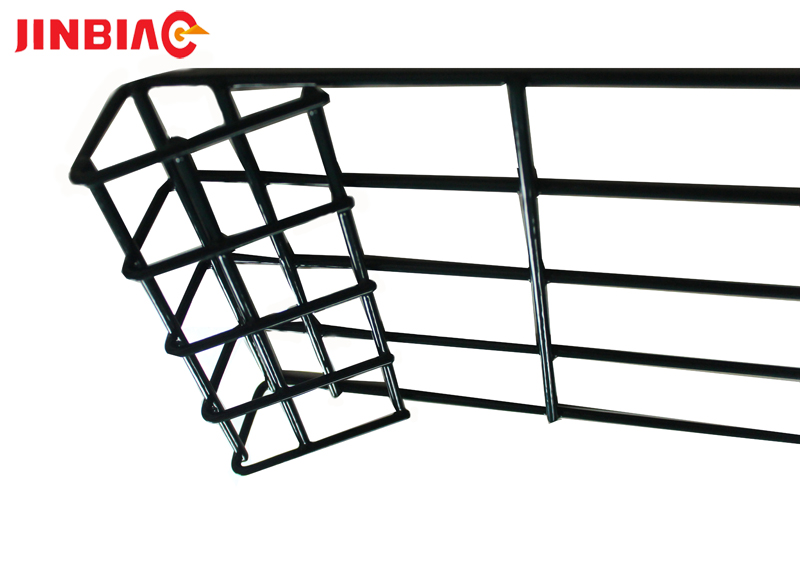

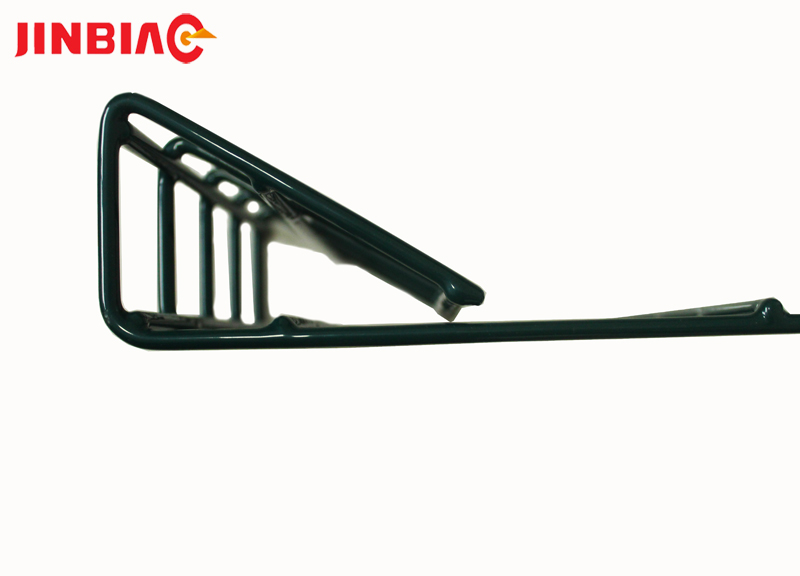

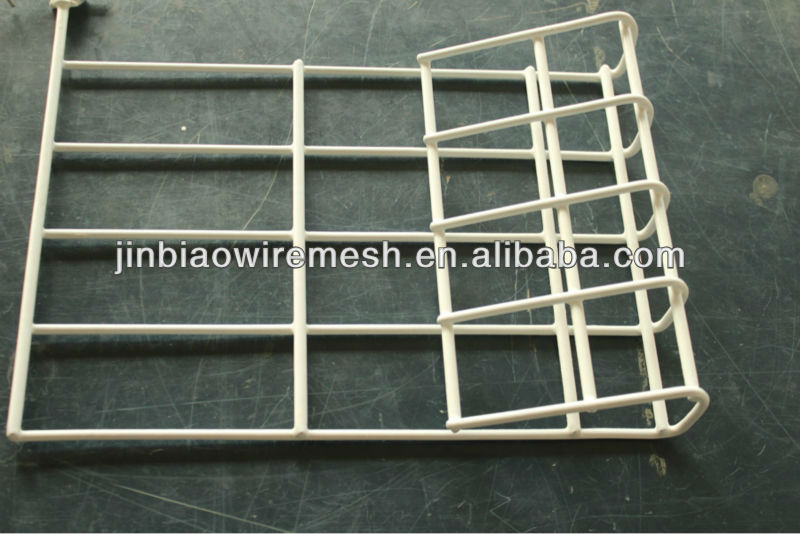

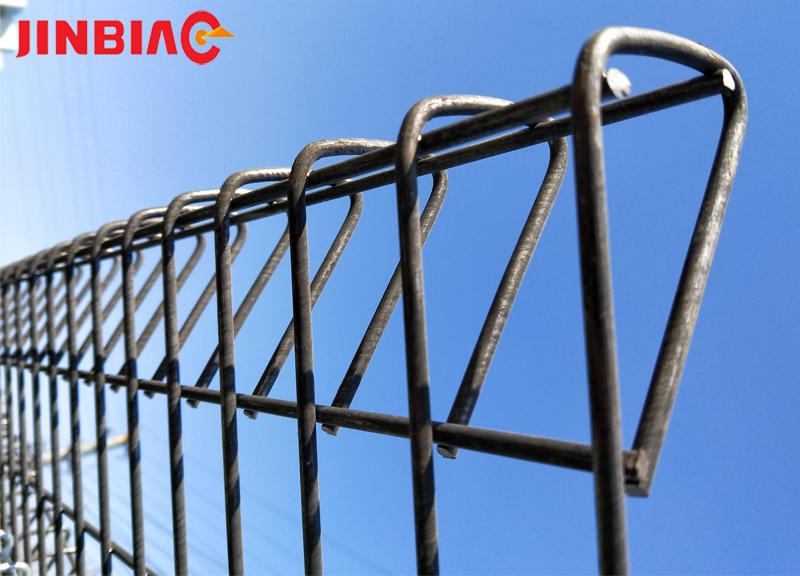

Triangle bending.jpg

>>>Buy Now

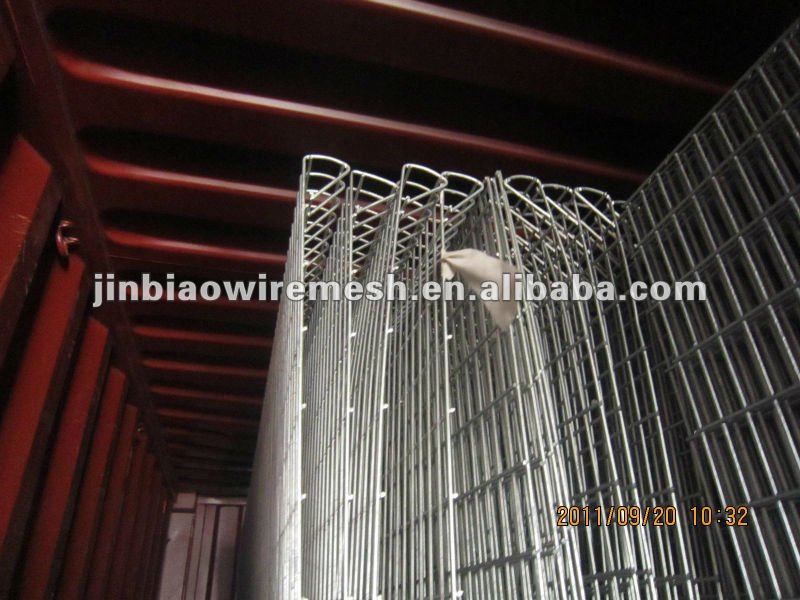

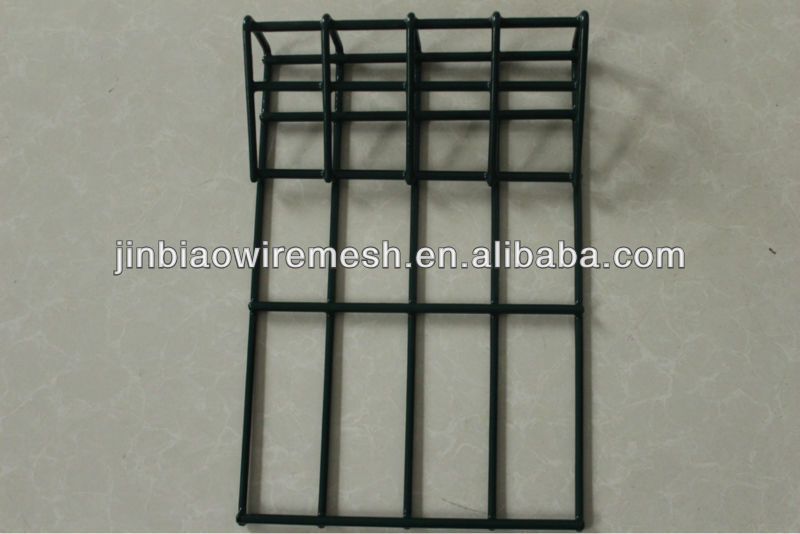

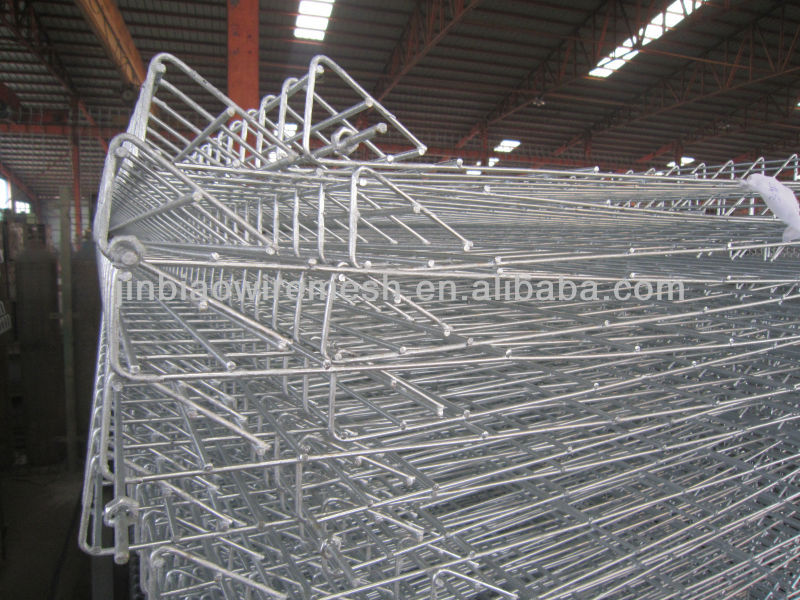

wire mesh10.jpg wire mesh11.jpg

Welcome to Contact Us :

Name: Coral hu

Tel: +86-311-80979540

Mobile: +86-13833129670

Skype: huyafeng125

FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: It will take about 10-20 days after get the deposit, urgent order can be discussed.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
