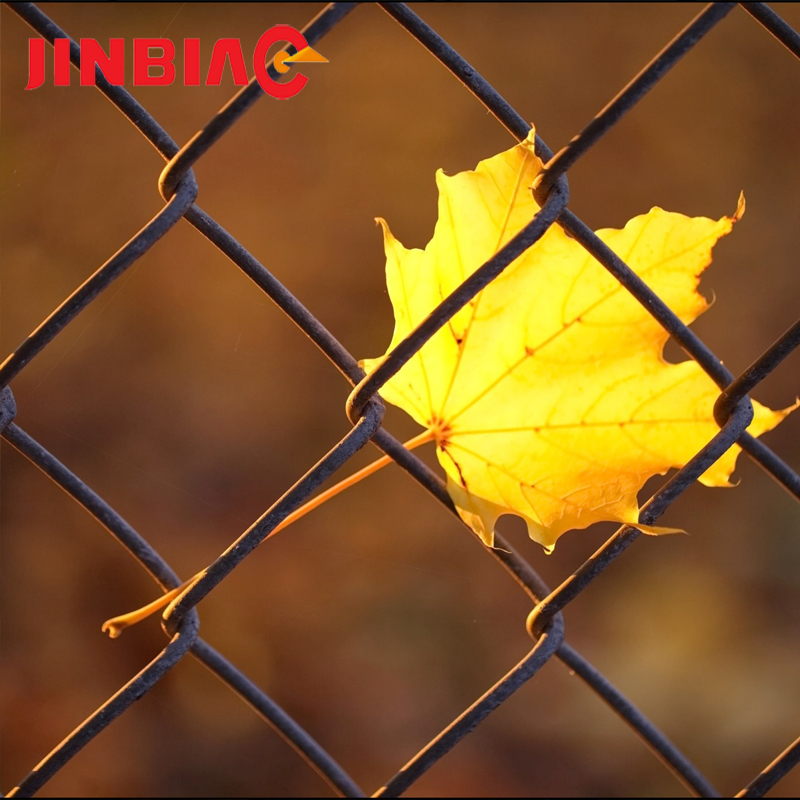

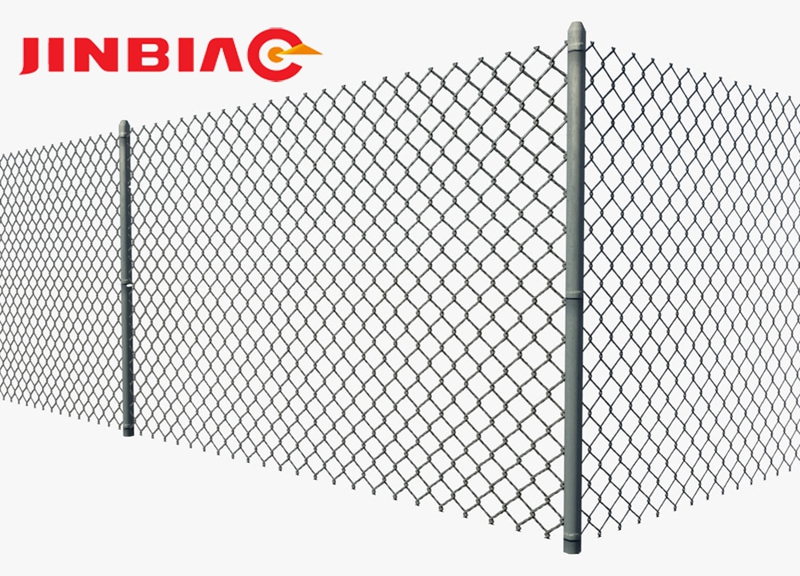

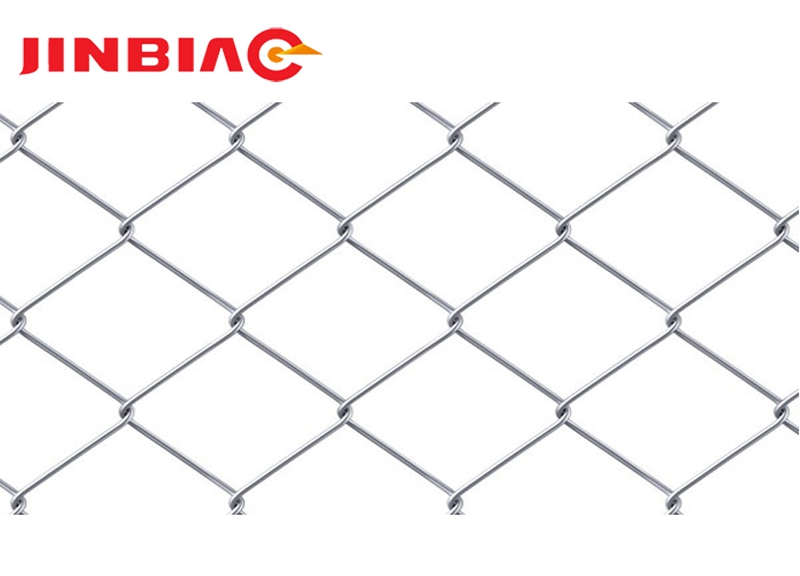

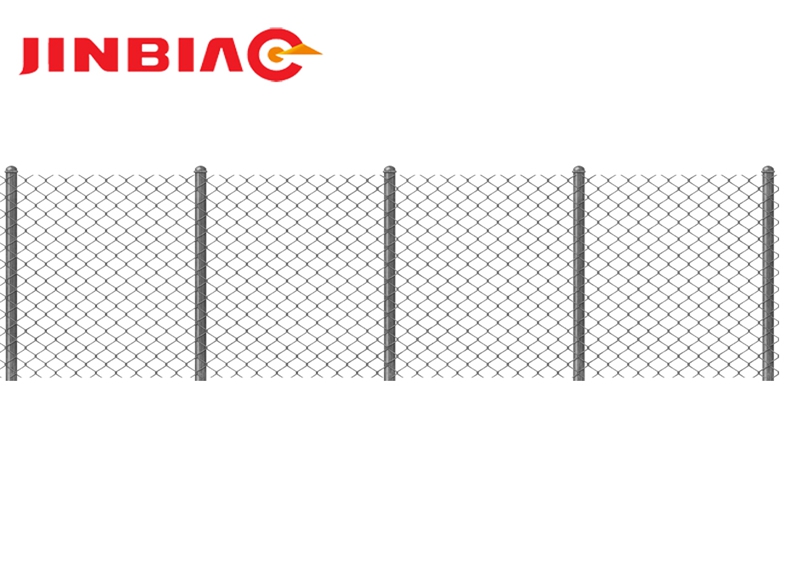

Chain link fence, also known as diamond wire mesh, rhombic wire mesh, or cyclone fence, is one of the most popular and practical choices for fencing, ranging from light residential to heavy commercial applications. It is relatively easy to install and highly cost-effective, making it a preferred solution for many.
A highly sought-after variant is the 6ft PVC Coated Galvanized Chain Link Fence, which combines strength with enhanced weather resistance and aesthetic appeal. This type of PVC Coated Chain Link Fence Net is renowned for its durability and low maintenance, making it ideal for a wide range of uses.
For those sourcing this product, partnering with reliable PVC Galvanized Chain Link Fence Factories ensures you receive a product that meets high standards of quality and performance. The PVC Coated Chain Link Mesh Fence offered by these manufacturers is designed to provide long-lasting security and visual appeal.
| Feature | Specification |
| Aperture | 4.0mm - 200mm |
| Wire Diameter | 0.5mm - 4.0mm |
| Roll Size (Width) | 1 meter |
| Roll Size (Length) | 50 meters |
| Surface | Galvanized or PVC Coated |
| Packing | On spool or in roll, as required |
| Material | Low carbon steel wire |
| Weaving & Pattern | Woven diamond pattern for strong, durable, and flexible construction |
| Key Benefits | Heavy galvanized coating ensures a long life |
| Applications | Gardens, parks, roads, sports fields, industrial sites, river banks, construction sites, residences, animal fencing |
| Available Types | Galvanized chain link fence, PVC Coated chain link fence, Euro Fence, Garden Fence, Stainless Steel chain link fence |
Chain Link Fence | |
Material | Electro galvanized,hot dipped galvanized,pvc coated low carbon steel wire |
Wire diameter | 3mm,4mm,5mm |
Opening | 30mm*30mm,40mm*40mm,50mm*50mm,60mm*60mm |
Height | 1.7m-2.5m |
Standard roll | 50m/roll |
Selvage | Twisted edge,knuckle edge |
Round post size | 25mm*1.2mm,32mm*1.5mm,48mm*2.0mm,60mm*2.5mm,89mm*3.0mm |
Surface treatment | Electro galvanized,hot dipped galvanized,PVC coated,galvanized +PVC coated |

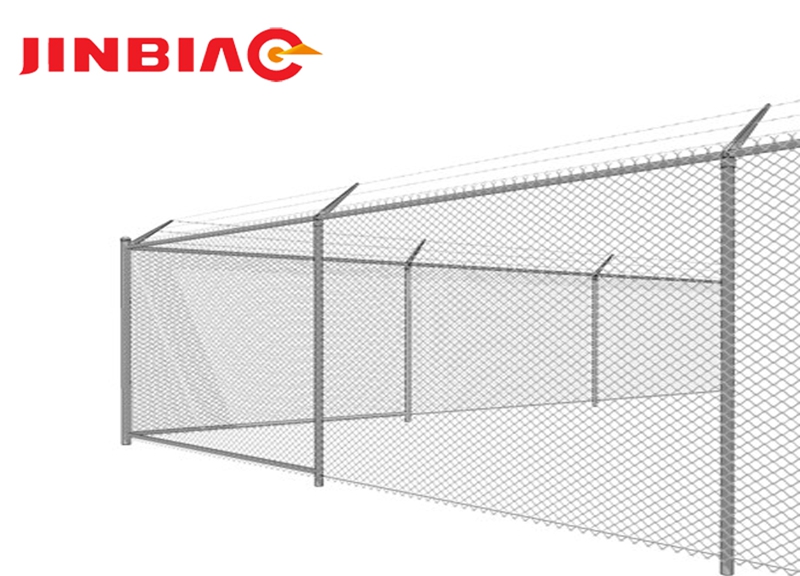

Fittings | Post cap,clip,tension bar,tension band,sleeve,barb wire arm etc. |
Finish of fittings | Hot dipped galvanized,PVC coated |
Color | Green,white,black,grey,etc. |
Made from quality materials including:
Low-carbon steel wire (high-quality)
Galvanized steel wire
PVC coated wire
Powder coated wire
Stainless steel wire (Grades 201, 302, 304, 304L, 316, 316L)
Aluminum alloy wire
The weaving process ensures the mesh is uniform in size with a smooth surface. The structure is simple, artistic, and highly practical.
The wire is thick, high-quality, and offers excellent corrosion resistance for long life.

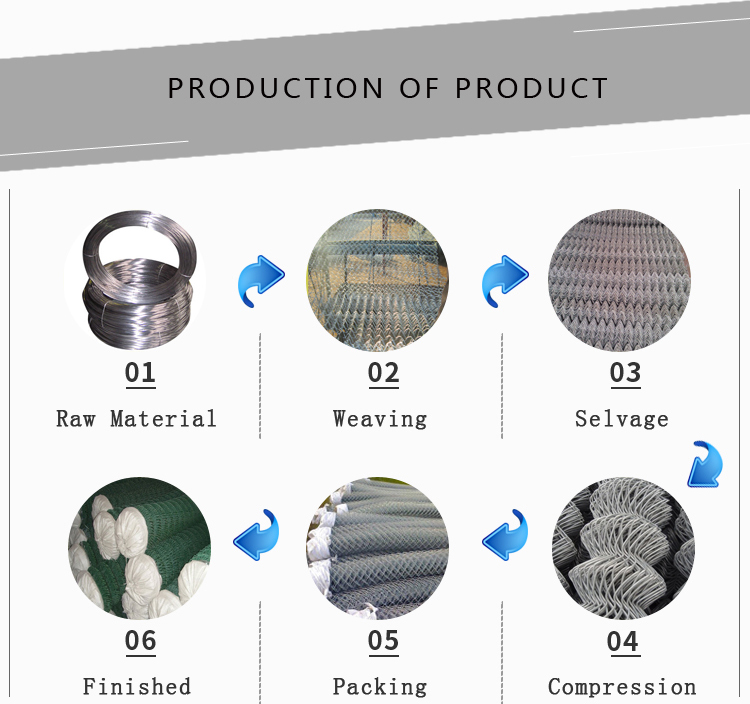

Process: Advanced machinery forms the pre-treated low-carbon steel wire into a diamond pattern, which is then linked together.

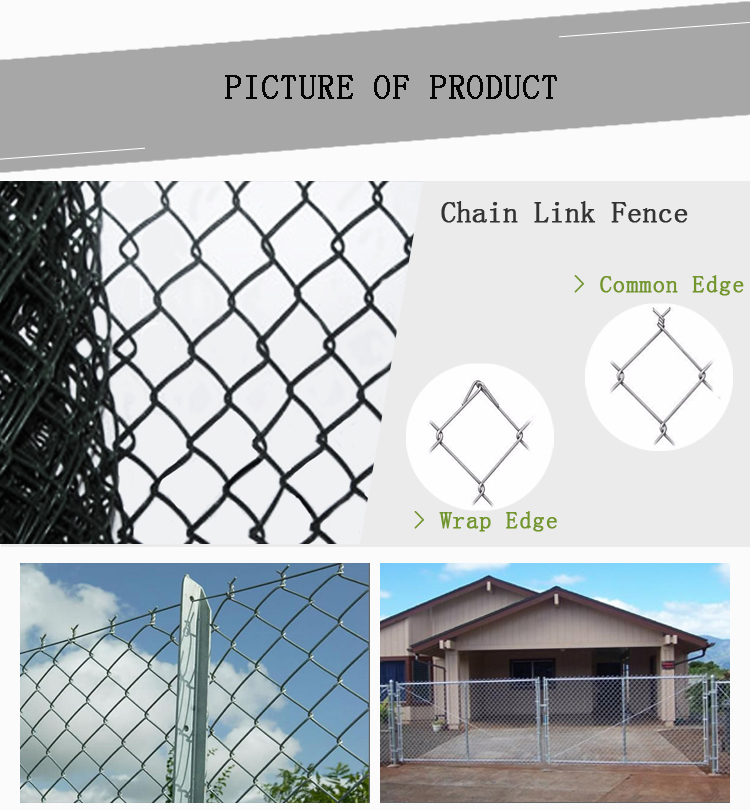

Edge Types: The fence edge is typically finished in one of two ways:
Twisted Edge: Using special tools to twist the wires.
Hemmed Edge (More Popular): A hemmed edge provides a cleaner finish and increased stability. Customers can choose based on their specific project needs.
Construction & Shipping: Advanced machinery compacts the rolls to their smallest possible diameter, significantly saving on shipping volume and transportation costs.
The finished rolls are securely wrapped with woven bags around the edges to protect them during transit. Packing can be done on spools or in rolls, according to customer requirements.

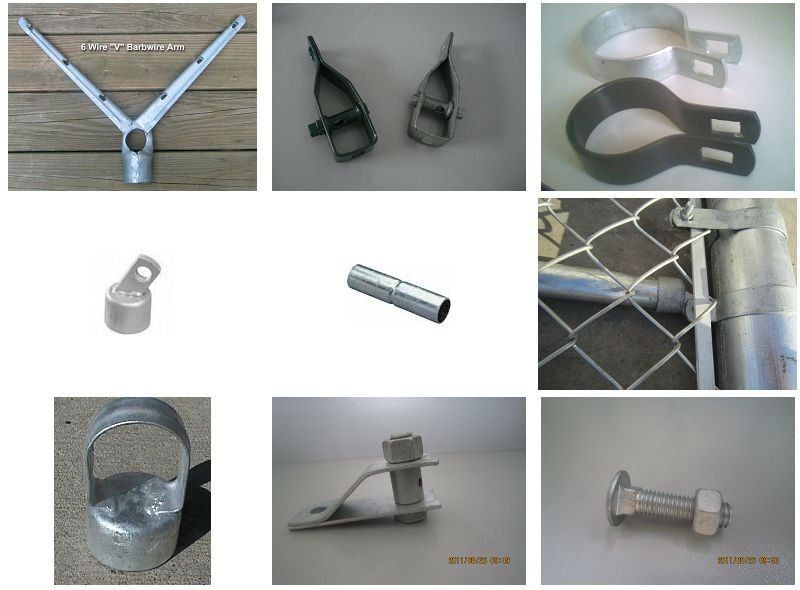

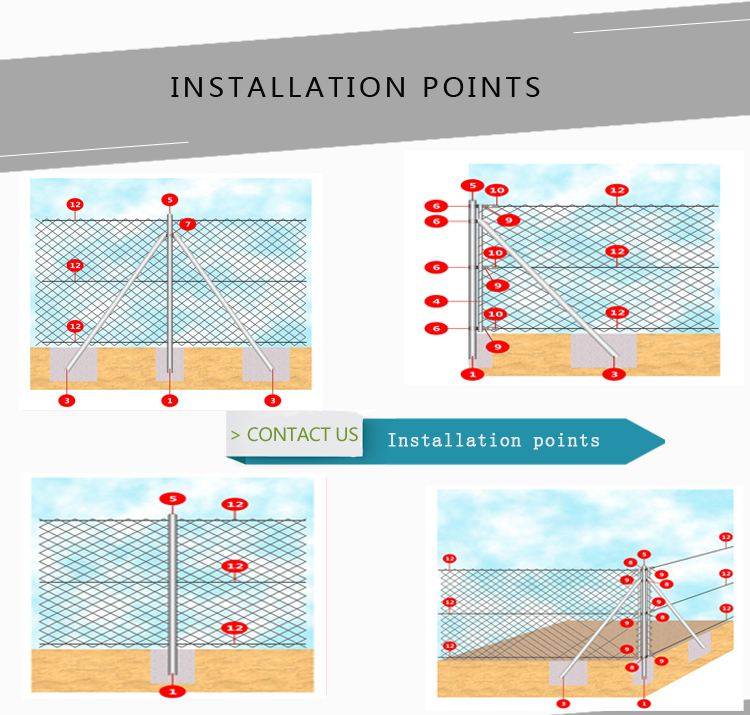

Chain Link Fence Accessories and installation
1: Material: Stainless steel, electro galvanized, hot dip galvanized, low carbon galvanized, PVC coated.
2: Weaving and charcteristics:link and weaving,the weaving is simple,artistic and practial.
3:Assortments available:Galvanized chain link fencing,Stainless steel chain link fencing,PVC coated chain link fencing.
4:Standard width of chain link fencing :3'-6'
Standard wire diameter :6-20#
Mesh count :3/8''-3 1/2''

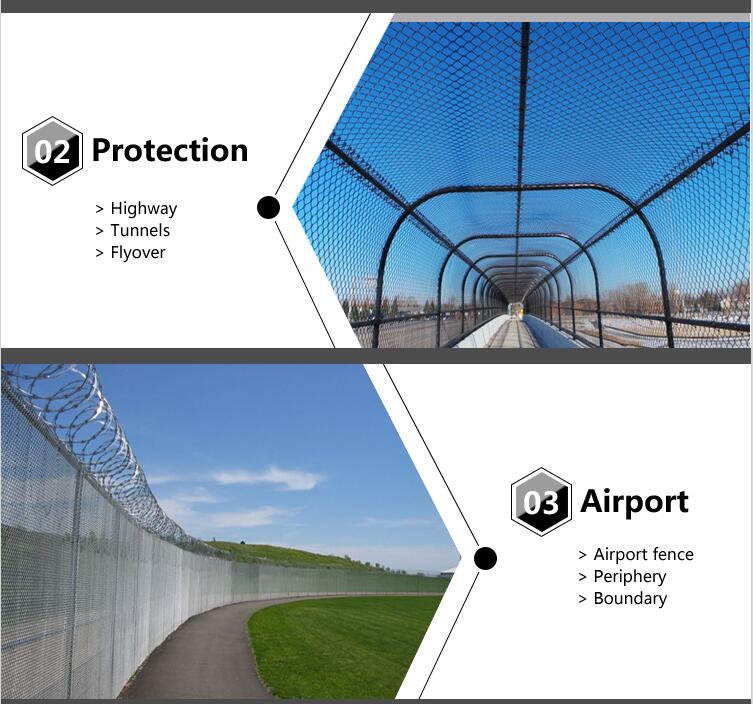

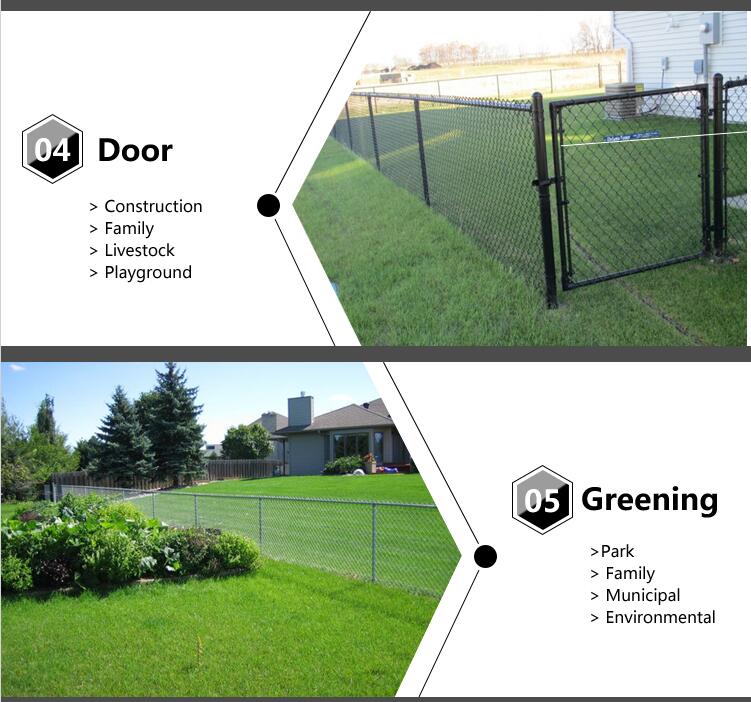

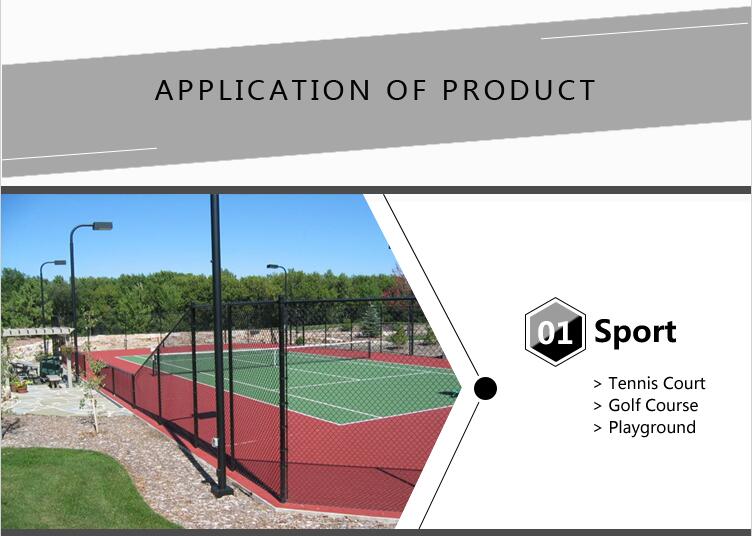

Chain Link Fence Uses:
1) As fences for playground, gardens, super highway, railway, airport, residence, etc.
2) AS fences to protect and support seawall, slope, road and bridge, reservoir and other civil engineering.
3) Link chain fence is also used in breeding of animals.

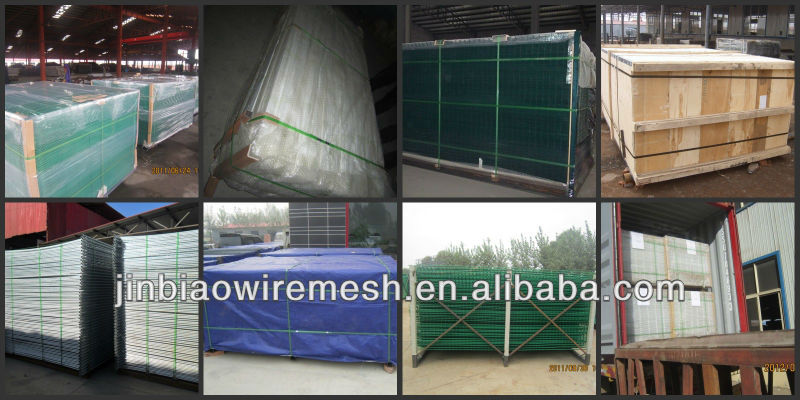

Packing is very important during the transportation, products will be heavily destroyed is with packing or with bad package.We do our products with heart and soul, will protect it very well then send to your hand Normally, we packed with bubble film and foam board,some temporary will also add iron pallet. Special packing also can do as customers' require.
Related Product
Welcome to Contact Us :
Contact details :
Welcome your inquiry--Anping Jinbiao Wire Mesh Fence Factory !
We are manufacturer.
Welcome you to visit our factory.
Any time,any questions,pls feel free to contact me.
sales manager l Fence manufacturer l Anping County Jinbiao Wire Mesh Fence Co., Ltd.
P.O. Box 053600, Development Zone, South Of Anping County, Hengshui, Hebei, China
Name:Coral hu
Mobile: +86-13833129670 Ι QQ: 1251546731
Tel: +86-311-80979540 l Skype:huyafeng125
FAQ:
Chain link is a component fence system, consisting primarily of three basic elements: fabric, framework, and fittings. The critical issue is how these components are combined. Chain link is available in a wide range of weights (or gauges) and coatings. The most common coating is zinc (galvanized) but chain link is also available in other coatings such as aluminum or vinyl and polyester color coatings that enhance landscaping, blending naturally with trees, shrubs, and bushes.
2)What are the advantages of chain link fence?
Chain link protects and beautifies property, is long-lasting, maintenance-free, yet economical. A chain link fence also provides security without obstructing views, blends well with landscaping, and controls pets.
3) What about our service?
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
5. 3-8 years warranty depends to different products.
6. Accept Changing or Refunding if the products cannot be installed rightly.
