Home > Products > Mesh Fence > Double Wire Fence > 8/6/8mm 6/5/6mm (28Years' Factory) Double Weft Wire Security Fence

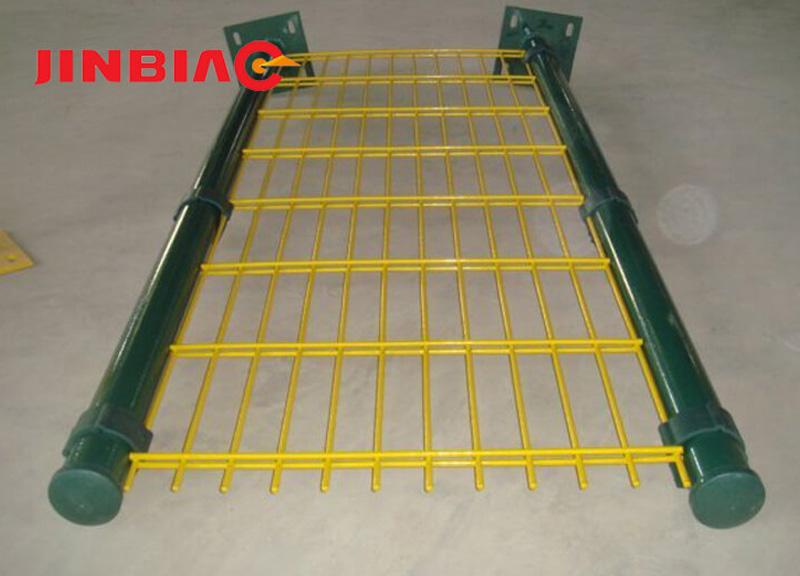

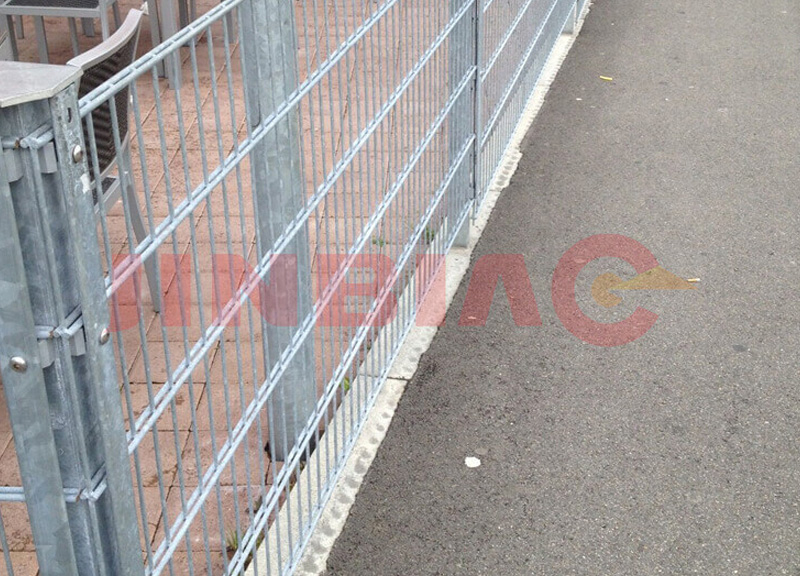

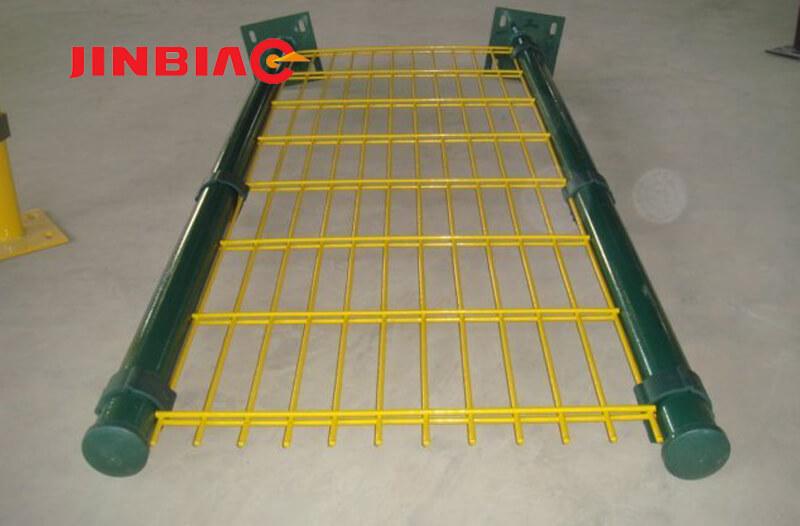

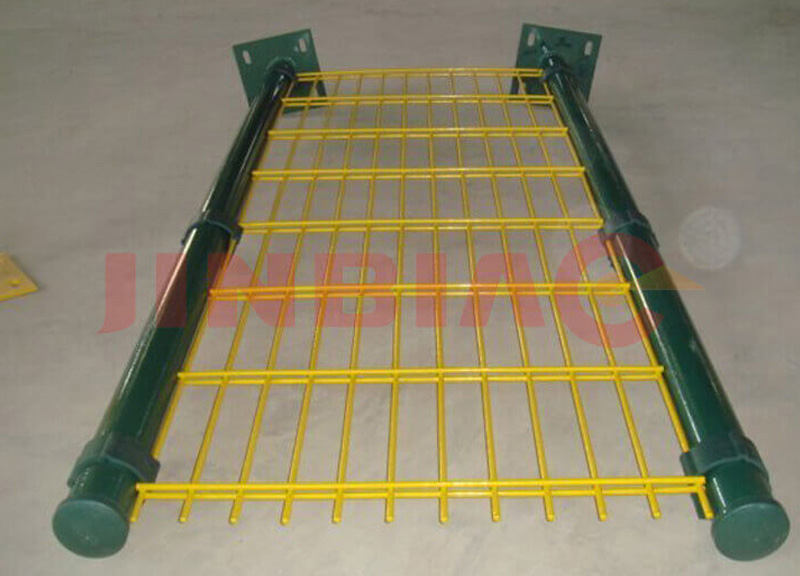

8/6/8mm 6/5/6mm (28Years' Factory) Double Weft Wire Security Fence

    Specifications

    Double wire fence

    Wire diameter: 8*2+6mm; 6*2+5mm

    Opening: 50--200mm

    Galvanized + PVC Coated

    Certificate: ISO9001/2008


Material:

Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the construction.


Post:

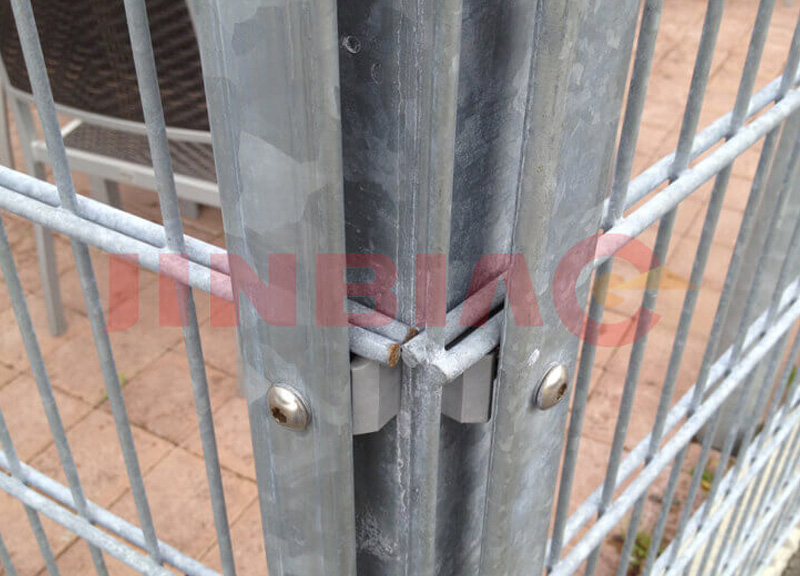

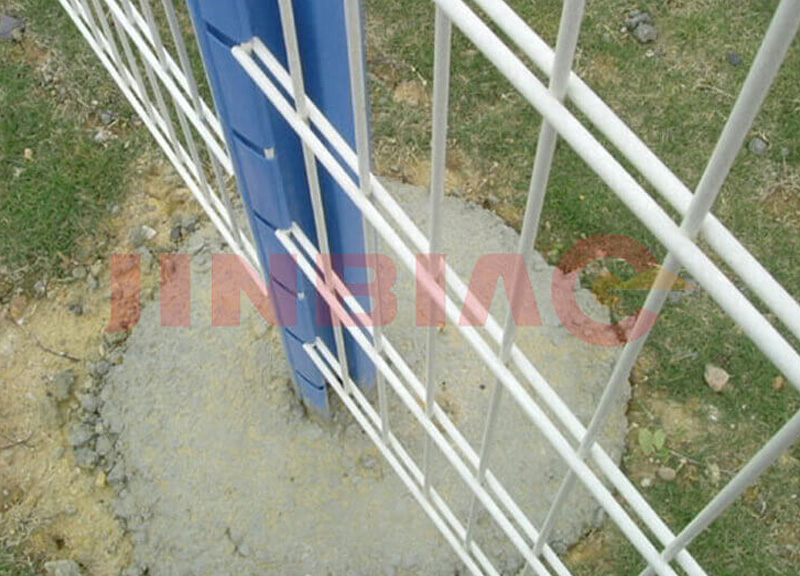

This System usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2. 5mm, 120*60*3mm) With the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.


Specification

Double Wire Fence
HeightxWidthPanel(mm)Mesh Size
(mm)
Wire DiameterPost Height
 (mm)
Wire Dia
(mm)
Wire Dia
(mm)
Wire Dia(mm)
630X250050X2008X2 + 66X2 + 56X2 + 41100
830X250050X2008X2 + 66X2 + 56X2 + 41300
1030X250050X2008X2 + 66X2 + 56X2 + 41500
1230X250050X2008X2 + 66X2 + 56X2 + 41700
1430X250050X2008X2 + 66X2 + 56X2 + 41900
1630X250050X2008X2 + 66X2 + 56X2 + 42100
1830X250050X2008X2 + 66X2 + 56X2 + 42400
2030X250050X2008X2 + 66X2 + 56X2 + 42600
2230X250050X2008X2 + 66X2 + 56X2 + 42800
2430X250050X2008X2 + 66X2 + 56X2 + 43000
